USED 2020 BRANSON 2000IW+
Overview

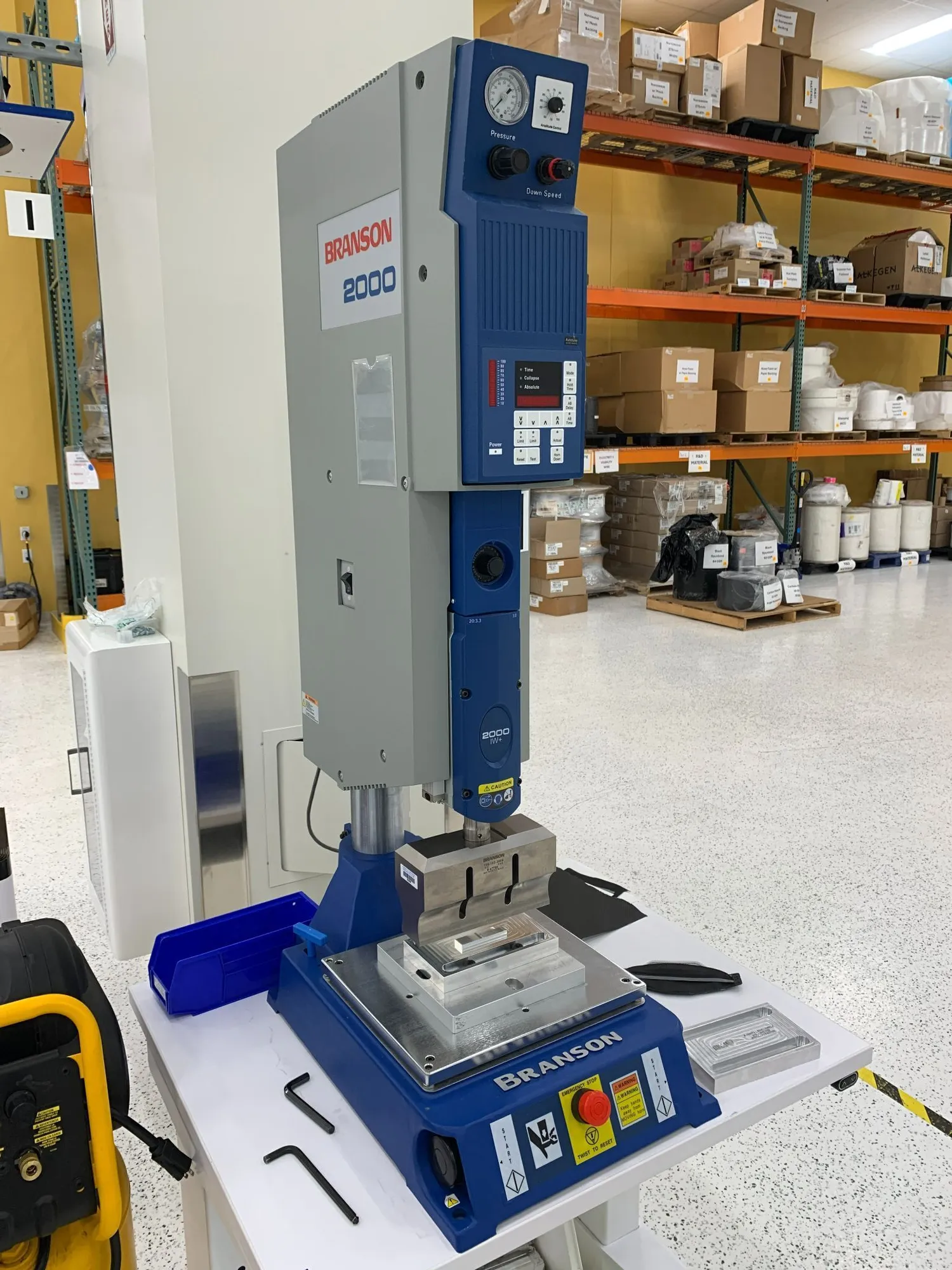

3300 WATT BRANSON MODEL 2000IW+ ULTRASONIC WELDER MFG 2020 (5) AVAILABLE
Specs
MAXIMUM FORCE: 630 lbs. at 100 psig (2.8 kN at 690 kPa)(3” cyl.)
Dynamic Triggering range: 15-200 lbs. (67-890 N) max.
Dynamic Follow-through range: 15-200 lbs. (67-890 N) max.
Stroke length: 4” (102 mm)
Cycle rate: IW = 90 CPM, IW+ = 65 CPM at 1” stroke length, 50 psig (345 kPa),
50 ms weld, 50 ms hold
Parameter ranges: Range** Increment/step
Weld & hold time range: 50-1,000 1 millisecond
milliseconds (1 sec.)
1-10 seconds 10 milliseconds
Afterburst delay and duration: “Off ” or 50-1,000 1 millisecond
milliseconds (1 sec.)
1-10 seconds 10 milliseconds
Position (IW+ only): 0.0001”- 4.0” Slow up/down key: 0.0001”(0.0025 mm)
(0.0025 - 101.6 mm) Fast up/down key: 0.01”(0.25 mm)
Equipped With
BOOSTER AND HORN ( some Horns are custom)
MORE SPECS AT
https://www.emerson.com/documents/automation/brochure-2000-iw-branson-en-us-169914.pdf
** NOTE ONLY 2 OF THEM HAVE THE FACTOR INSTALLED AMPLITUDE CONTROL AS SHOWN IN THE PICTURES THEY ALL HAVE LEVELING PADS
