USED INGERSOLL CUTTING TOOLS SN6N-04R01

Ingersoll SN6N-04R01 face mill with 6 inserts, used condition. Features 4.69” cutting diameter, steel body, right-hand cutting, and a 0.35” max depth. Ideal for chamfering and facing applications. 1-1/2” connection diameter, 2-3/8” OAL.

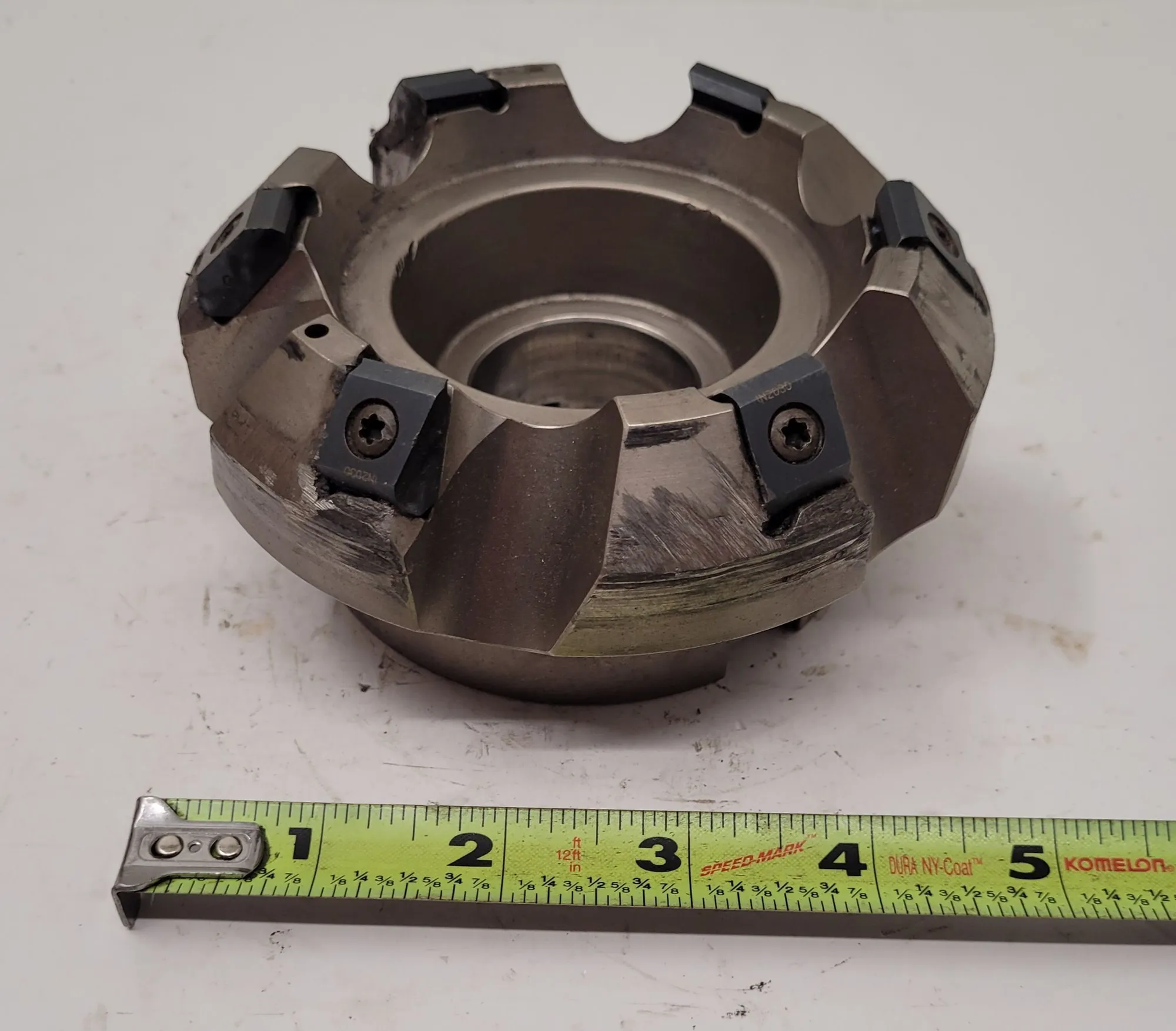

Ingersoll SN6N-04R01 Face Mill w/ 6 Inserts

USED
Cutting Diameter 4.69″
Arbor Style A
Cutting Diameter 4″
Cutting Diameter Maximum 4.69″
Body Material Steel
Cutting Item Count 6
Cutting Direction (HAND) Right Hand
Depth of Cut Maximum 0.35″
Application | Chamfering | Facing | Slanted Shoulder & Chamfer |
Connection Diameter Machine Side ‎1-1/2″
Overall Length (OAL) ‎2-3/8″
Tool Cutting Edge Angle 45 Degrees
Hub Diameter 2.48″
