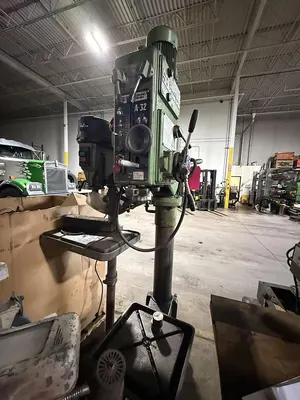

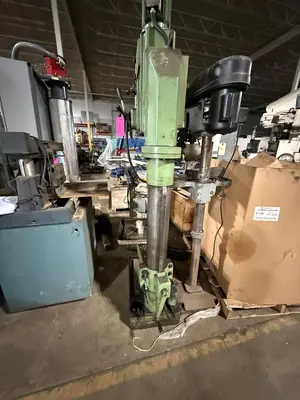

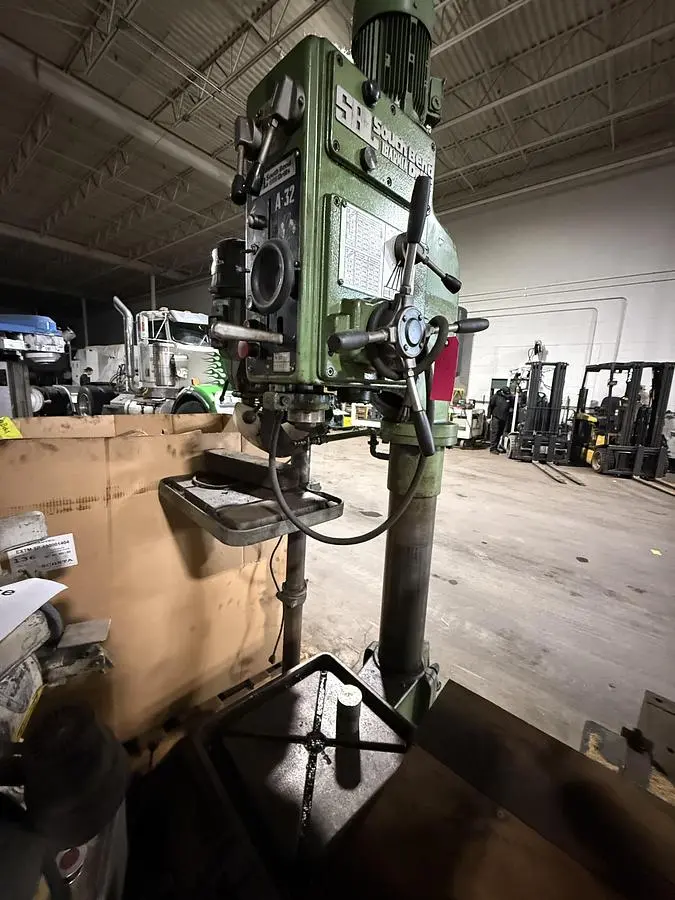

USED SOUTHBAND FLOOR MODEL DRILL PRESS SOUTHBAND FLOOR MODEL DRILL PRESS

Make / model: South Bend Ibarmia Drills, Model A-32, s/n 566-E
Type: Geared-head floor drill with a round column

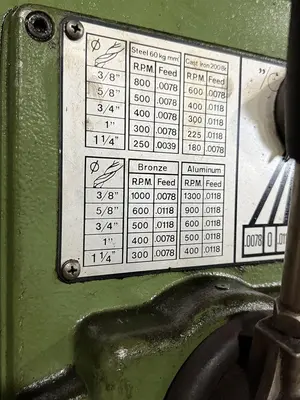

Drilling capacity: 1-1/4" in steel. The chart on the head runs from 3/8" to 1-1/4" in steel, cast iron, bronze and aluminum.
Spindle speeds: 9 geared speeds, set with two levers: 112, 160, 225, 316, 450, 632, 887, 1260 and 1774 rpm
Power feeds: 3 rates, 0.0039, 0.0078 and 0.0118 in/rev, plus a neutral position
Quill depth scale: reads 0–200 mm (0–7+”), with an adjustable depth stop

Approx dims: 27-1/2" x40" x 90"

Price: $1,490

*All specifications are approximations and are subject to verification
Rigging and transportation are the responsibility of the purchaser.
