Used ESAB Suprarex SXE HD 5500 CNC Plasma and Oxy-Fuel Cutting System

Manufacturer Information
ESAB is an established manufacturer of welding, cutting, and industrial fabrication equipment. Its cutting technology includes automated plasma cutting systems, oxy-fuel cutting equipment, and CNC-controlled cutting solutions used in metal fabrication and heavy industrial manufacturing. The Suprarex SXE HD 5500 system features ESAB plasma and oxy-fuel cutting technology with Vision CNC controls.
Main Product Description

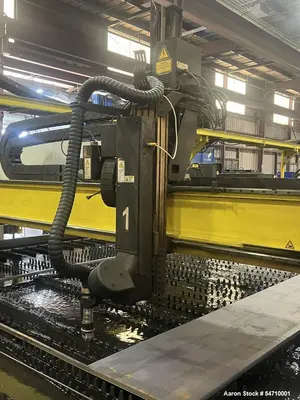

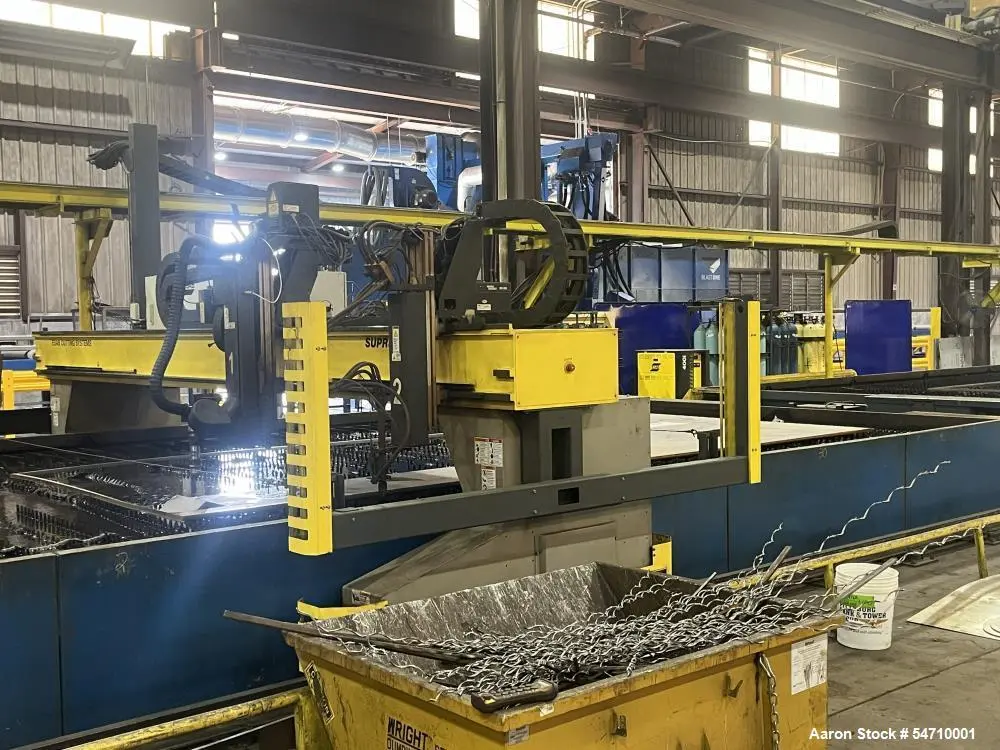

Used ESAB Suprarex SXE HD 5500 high-precision CNC plasma and oxy-fuel cutting system, built in 2021, featuring an effective cutting area of approximately 10' wide x 98.4' long. This large-format industrial cutting machine is equipped with an ESAB 400i iSeries high-precision automated plasma cutting system with a 2" piercing capacity and an advanced ESAB oxy-fuel cutting station capable of cutting mild steel less than 6" thick. The system includes an ESAB Vision CNC controller for automated cutting operations and requires 480-volt, 3-phase electrical power. Included components consist of the cutting gantry, plasma and oxy-fuel cutting torches, power source, fluid cooling station, travel rails, overhead cable tray, wiring, and select spare parts. Designed for large-scale metal fabrication and precision plate cutting, this ESAB cutting system is suitable for structural steel fabrication, heavy plate processing, industrial machinery manufacturing, heavy equipment components, and cutting carbon steel and other compatible metals. Water tables shown in photographs are not included.
Specifications

Equipment Type: CNC Plasma and Oxy-Fuel Cutting System

Manufacturer: ESAB

Model: Suprarex SXE HD 5500

Condition: Used

Year Built: 2021

Cutting Technology: High-Precision Plasma and Oxy-Fuel

Effective Cutting Width: Approximately 10'

Effective Cutting Length: Approximately 98.4'

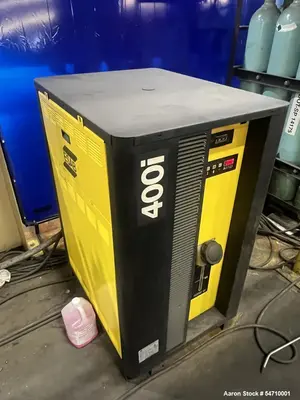

Plasma Cutting System: ESAB 400i iSeries

Plasma Piercing Capacity: 2"

Oxy-Fuel Cutting System: ESAB Advanced Oxy-Fuel Cutting Station

Oxy-Fuel Cutting Thickness: Mild Steel Less Than 6"

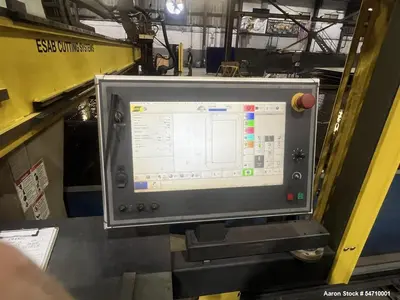

CNC Controller: ESAB Vision

Electrical Requirements: 480 V, 3 Phase

Cutting Gantry: Included

Cutting Torches: Included

Plasma Power Source: Included

Fluid Cooling Station: Included

Travel Rails: Included

Overhead Cable Tray: Included

Wiring: Included

Spare Parts: Select Spare Parts Included

Water Tables: Not Included

Applications

Structural steel fabrication

Heavy steel plate cutting

Industrial machinery manufacturing

Heavy equipment component production

CNC plasma plate cutting

Oxy-fuel cutting of thick mild steel

Precision metal cutting operations

Large-format steel processing

Industrial metal fabrication

Automated cutting of compatible metals

Suitable Products and Materials

Carbon steel plate

Mild steel plate

Heavy steel plate

Structural steel components

Industrial machinery parts

Heavy equipment components

Fabricated steel parts

Compatible metal plate materials

Frequently Asked Questions (FAQs)
- What is the cutting area of the ESAB Suprarex SXE HD 5500?
The system features an effective cutting area of approximately 10 feet wide by 98.4 feet long, making it suitable for large-format industrial plate cutting applications.
- Does this ESAB cutting machine include both plasma and oxy-fuel cutting?
Yes. The system includes an ESAB 400i iSeries high-precision plasma cutting system and an advanced ESAB oxy-fuel cutting station.
- What is the plasma piercing capacity?
The ESAB 400i iSeries plasma system has a specified piercing capacity of 2 inches.
- How thick can the oxy-fuel cutting station cut?
The oxy-fuel cutting station is specified for cutting mild steel less than 6 inches thick.
- What CNC controller is included?
The system is equipped with an ESAB Vision CNC controller for automated cutting operations.
- What are the electrical requirements?
The cutting system requires 480-volt, 3-phase electrical power.
- What year was this ESAB cutting system built?
The equipment was built in 2021.
- Are the water tables included with the cutting system?

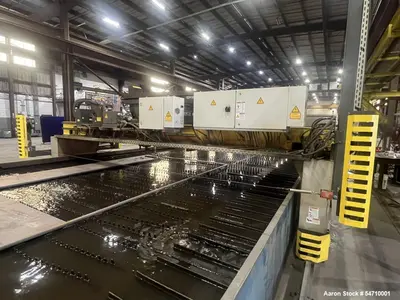

No. Water tables visible in the equipment photographs are not included in the sale.
- What components are included with the equipment?
The system includes the gantry, cutting torches, power source, fluid cooling station, travel rails, overhead cable tray, wiring, and select spare parts.
- What industries commonly use this type of cutting system?
Large-format CNC plasma and oxy-fuel cutting systems are commonly used in structural steel fabrication, heavy plate processing, industrial machinery manufacturing, and heavy equipment component production.
- Can Aaron Equipment help arrange shipping and transportation?
Aaron Equipment can assist with coordinating transportation and freight logistics for this large industrial cutting system. Contact our team to discuss equipment location, loading requirements, shipping dimensions, and transportation options.
- How can Aaron Equipment help determine whether this system meets my cutting requirements?
Aaron Equipment can help review available specifications, cutting capabilities, included components, and equipment information to assist buyers in evaluating the ESAB Suprarex SXE HD 5500 for their manufacturing or fabrication applications.
