Baumalight ISR512 Rotating Skid Steer Tree Shear, Up to 12-Inch Cut

The Baumalight ISR512 rotates its shear head through 90 degrees, letting a skid steer cut standing trees or turn the blade to address horizontal limbs. An in-cab electrical signal selects the shear or rotation function. The integrated push bar assists with positioning during felling and limbing.

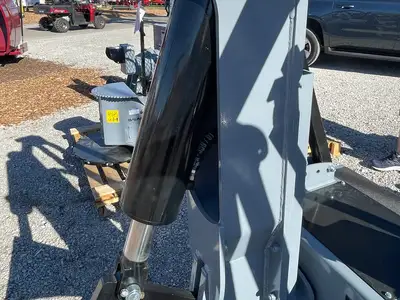

The AR400 shear uses a 5-inch-bore blade cylinder. Internal hose routing, protective sleeving and a spring-loaded support manage the hoses through loader movement. Hoses are included. The ISR512 is supplied without a grabber, and it requires one ON/OFF electrical signal plus ground for function selection.
Baumalight rates this model for the 5,000–8,000 lb skid steer class. Its cutting chart gives 10-inch hardwood or 11-inch softwood at 3,000 PSI. The maximum 12-inch cut is charted at 4,000 PSI for hardwood and 3,400 PSI for softwood, so the carrier’s available pressure is an important part of the match.
ISR512 specifications
Send us your skid steer model and its hydraulic and auxiliary electrical details. We can help check the rotation controls and carrier match using the Incisor operator’s manual.
