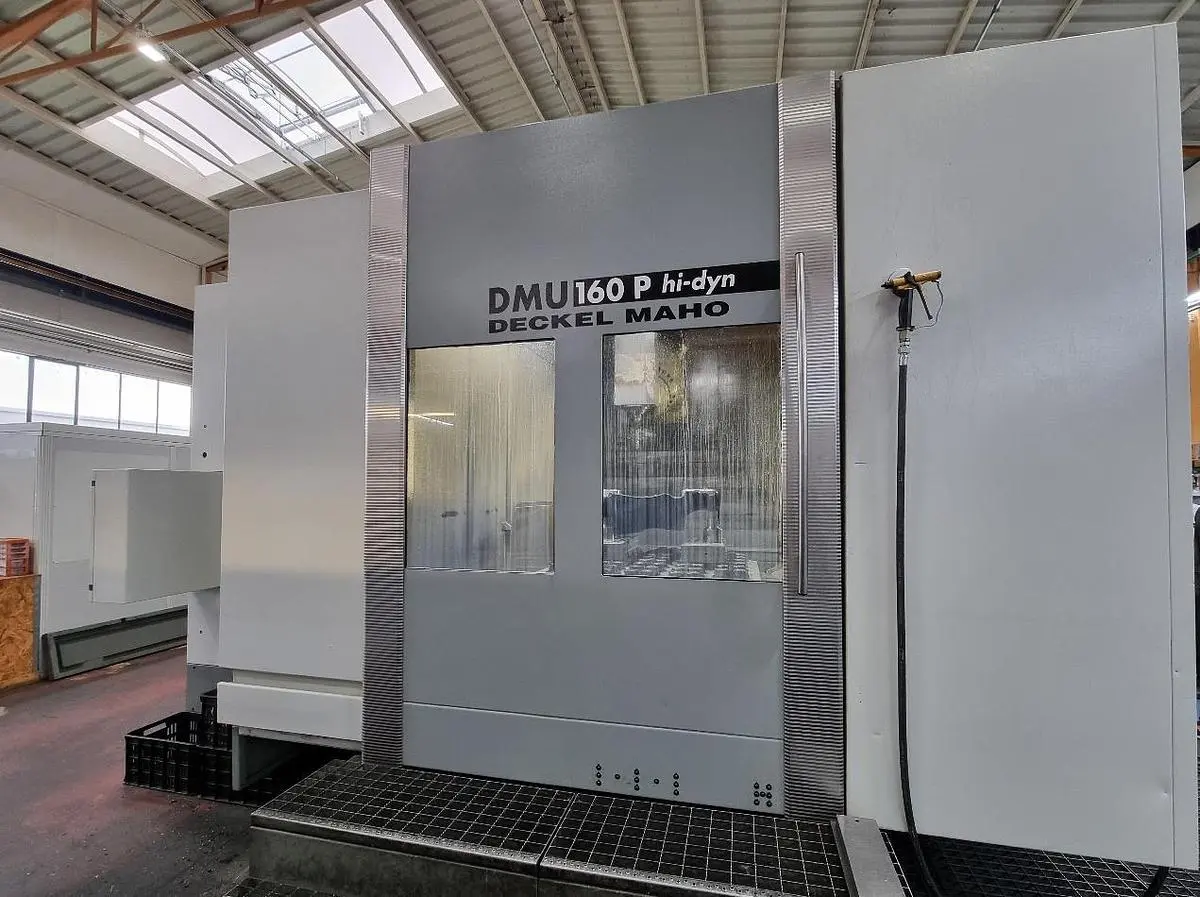

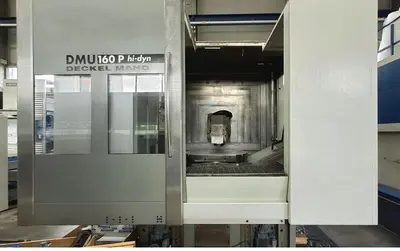

USED 2004 DMG DMU 160P HI-DYN

HEIDENHAIN iTNC 530 CNC Control
Universal NC-Milling head:

The CNC 5-axis machining center DMU 160P hi-dyn by DECKEL MAHO is a powerful and highly versatile machine built for maximum precision, speed, and flexibility on the shop floor. With generous travels of X 1,600 mm, Y 1,250 mm, and Z 1,000 mm, combined with a 360° NC rotary table and a B-axis range of +180°/-7°, even large and complex workpieces can be completed in a single setup — saving time and boosting overall efficiency. The 28 kW high-performance motor spindle with a continuously variable speed range from 20 to 18,000 rpm delivers precise cutting across a wide range of materials, while the HSK-63 tool interface keeps setup times short and processes running smoothly.

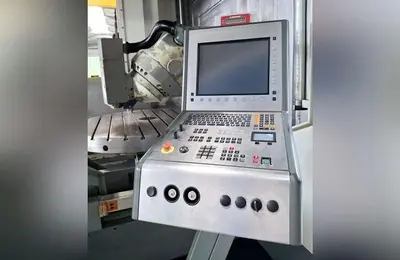

The modern HEIDENHAIN iTNC 530 control system ensures accurate CNC programming and optimized machining operations. With an axis resolution of 0.001° and a load capacity of up to 4,000 kg, the DMU 160P hi-dyn is perfectly suited for demanding applications, especially for die and mold making, mechanical engineering, and production environments. Thanks to simultaneous 5-axis machining, complex contours and freeform surfaces can be produced in one go, reducing setup changes and increasing process reliability.
