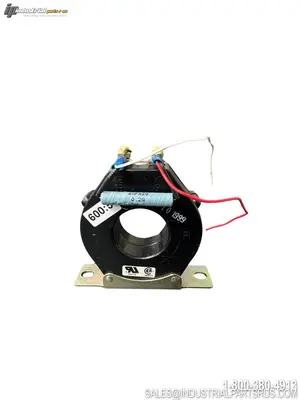

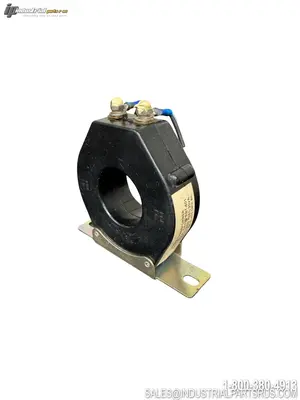

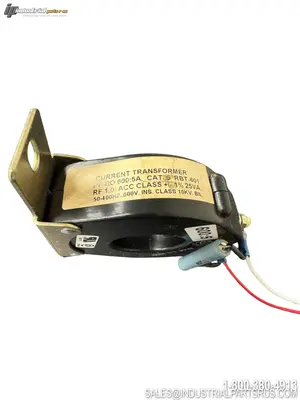

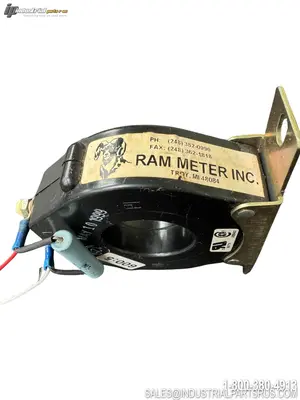

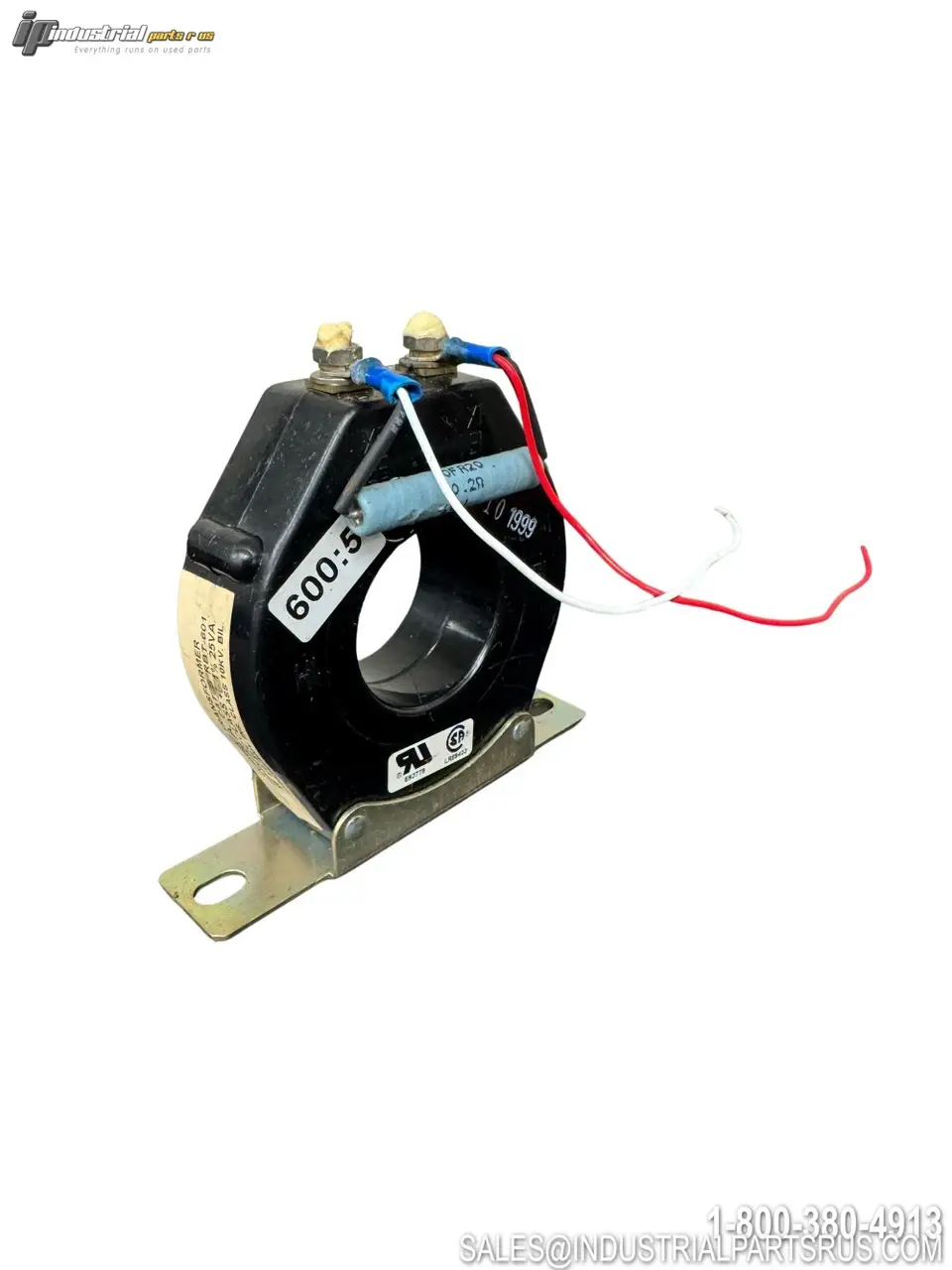

USED RAM METER 600:5

The Ram Meter 600:5 is a current transformer (CT) rated for a 600A primary to 5A secondary current ratio, providing a 120:1 step-down turns ratio. It is designed for use with ammeters, wattmeters, and other current metering instruments where high primary current must be safely stepped down to a standard 5-ampere secondary signal. Ram Meter Inc. offers this 600:5 ratio across multiple solid-core CT series (e.g., Model 5, Model 76, 500T), all conforming to applicable ANSI/IEEE standards for instrument transformers.
Specification
Value
Brand
Ram Meter
Model / Part Number
600:5
Manufacturer
Ram Meter Inc.
Product Type
Current Transformer (CT)
CT Ratio
600:5 (600A primary / 5A secondary)
Turns Ratio
120:1
Primary Current Rating
600A
Secondary Current Rating
5A
Voltage Rating
600V
Basic Insulation Level (BIL)
10 kV
Core Type
Solid Core
Application
Ammeters, wattmeters, current metering, cross current compensation
Standards Compliance
ANSI / IEEE (C57.13 / C12.20)
UL File
E93779
Frequency
50/60 Hz
We warranty all items for 30 days from date of purchase.
