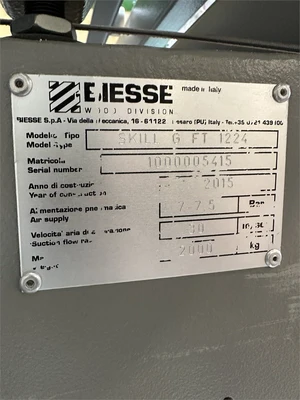

USED 2015 BIESSE SKILL G FT 1224

Lot Closes:: 11/5/2026 10:05:00 AM PT
Biesse "Skill 1224 G FT" CNC Router w/Load & Unload
See video of machine in operation

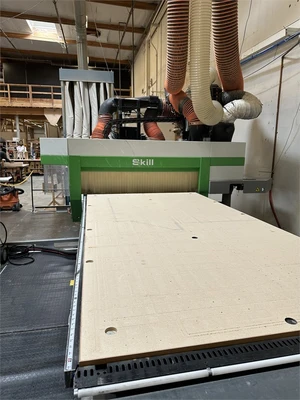

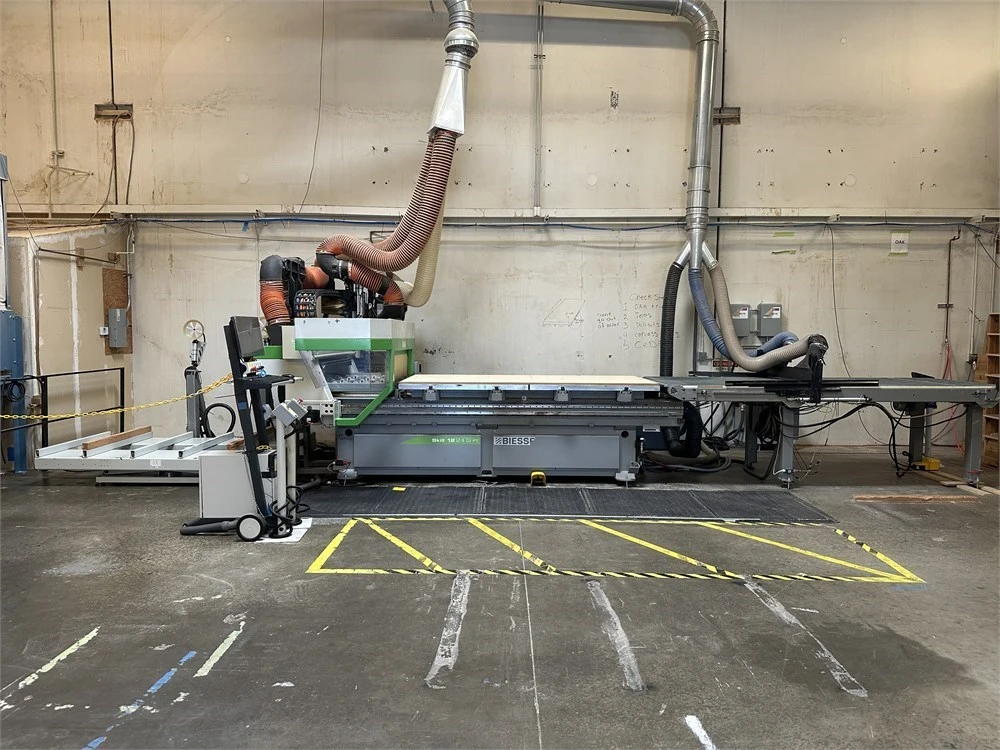

The Biesse Skill 1224 G FT is an industrial-grade, flat-bed nesting machining center engineered for high-precision routing, boring, and nesting operations. When integrated with an automated Load and Unload System, it transforms from a standalone machine into a continuous production cell. This automated configuration maximizes material yield, drastically reduces manual handling, and is heavily optimized for high-volume cabinet manufacturing, commercial casework, and flat-panel processing.
Automated Load & Unload Sequence
Automatic Material Loading: An integrated vacuum lift or scissor-table alignment system automatically picks up raw sheets from a bunk and positions them onto the matrix table. Alignment is completed instantly against pneumatic pin stops.
Continuous Machining & Nesting: The machine executes complex multi-axis nesting toolpaths, routing profiles, and vertical drilling cycles without operator intervention.

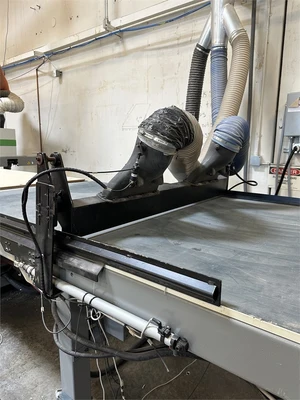

Integrated Sweeper Arm & Offloading: Upon completion, a heavy-duty motorized sweeper arm slides the entire nested sheet of finished parts and offcuts off the machine bed onto a powered outfeed conveyor belt.

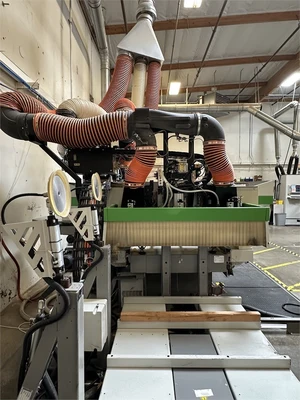

Simultaneous Bed Cleaning: The sweeper arm features integrated dust-extraction hoods and air blowers. As it clears the finished parts, it cleans the underlying spoilsheet, preparing the surface instantly for the next raw panel loading phase.
Operational Advantages
Minimized Labor Cost: A single operator can manage multiple process (sorting or labeling parts on the outfeed conveyor) while the machine loads & processes the next sheet.
Cycle Time Reductions: Simultaneous unloading of cut parts & reloading of a raw panels
Enhanced Safety: Safety mats to protect operators during active machining operations
Technical Specifications
Working Field & Axis
Working Field (X / Y) 2465 mm x 1285 mm (approx. 97" x 50.5") — Optimized for standard 4' x 8' panels.

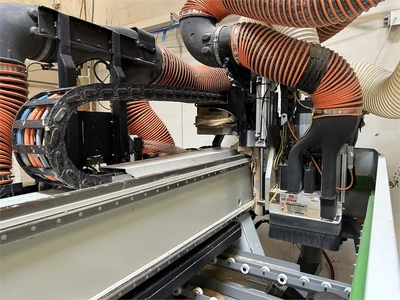

X-Axis (Left to Right) Rack and pinion with linear guides; AC servo drive system; 97" active working area.
Y-Axis (Front to Back) AC servo drive system; 50.5" active working area.
Z-Axis Stroke & Clearance Typically 325 mm (12.8") total clearance allowance. Driven by ball screw with linear guides via AC servo motor; 4.7" working clearance capacity.

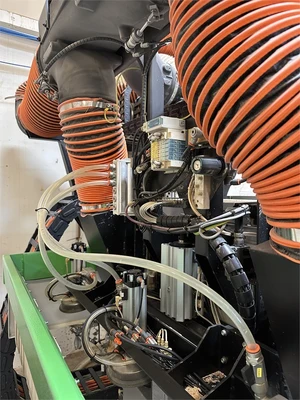

Machining & Spindle System

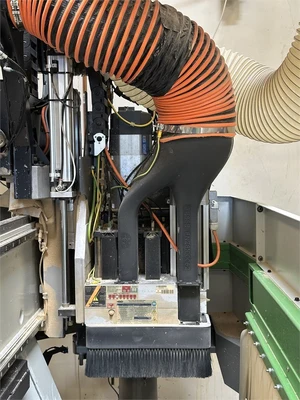

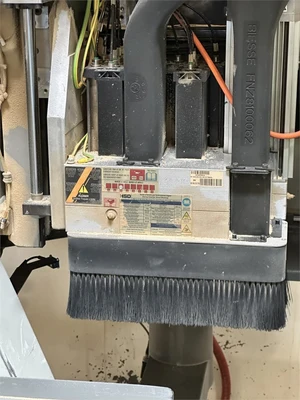

Electrospindle 14.85 HP to 16.1 HP / 16 HP heavy-duty, air-cooled electrospindle featuring an HSK-F63 quick-change tool clamping system. Variable speeds from 1,000 up to 24,000 RPM with CW/CCW rotation capability.

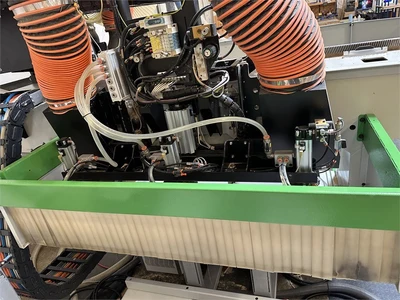

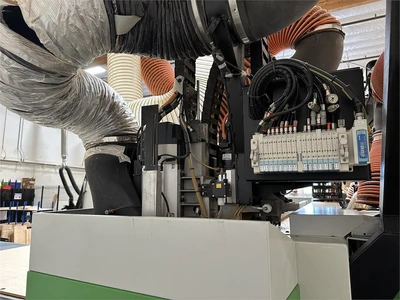

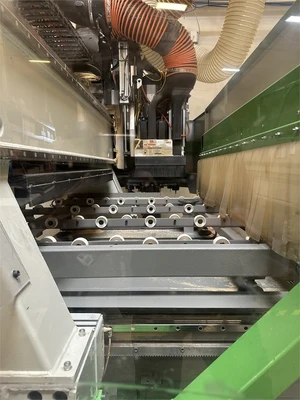

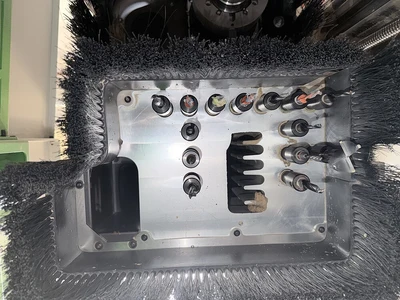

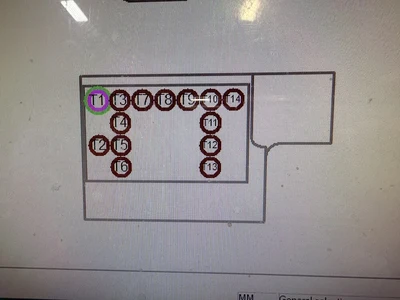

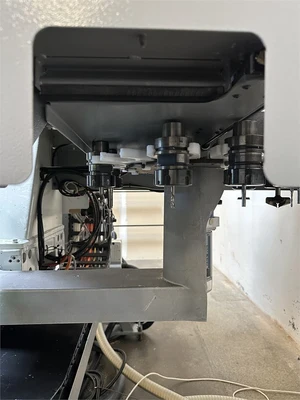

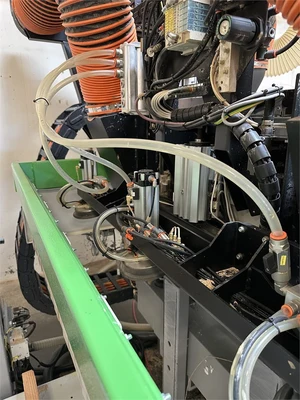

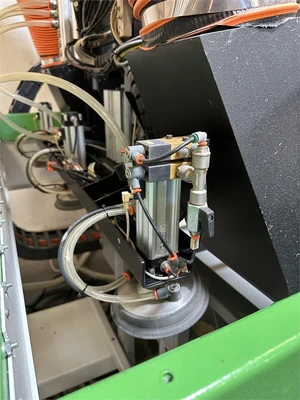

Boring Head 10 multi-spindle configuration: 10 independent vertical spindles (7 arranged in X-axis, 3 in Y-axis) / Upgradeable to 14 independent vertical spindles. Driven by a 2.2 HP motor at 2,800 RPM and a 4.0 HP motor at 6,000 RPM.

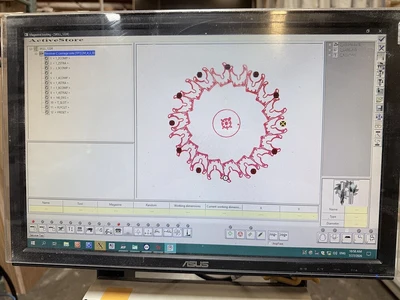

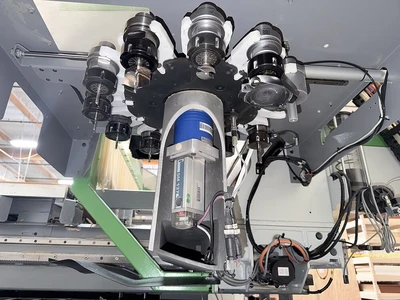

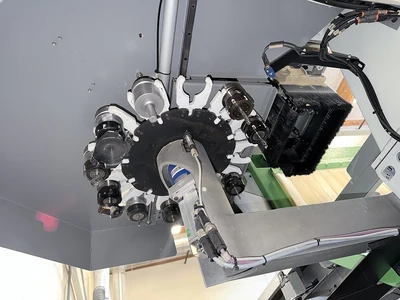

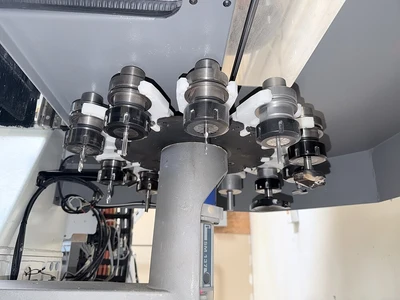

Tool Changer 12-position carousel/rotary-style tool changer riding along with the gantry for rapid, optimized cycle times.
Tool Length Setup Integrated tool length measuring device for automatic calibration.
Table & Workpiece Management

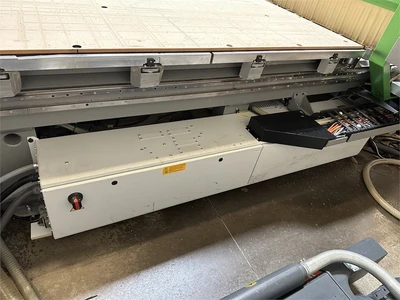

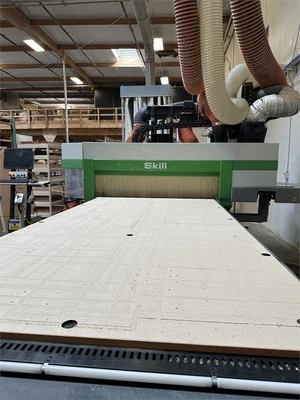

Table Type High-rigidity Precision Matrix phenolic or machined aluminum vacuum table divided into multi-vacuum zones.

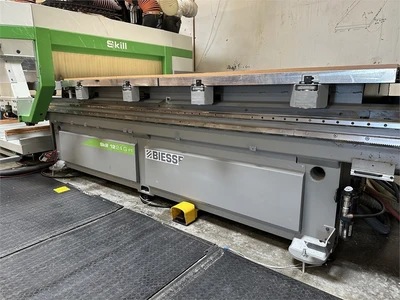

Positioning Stops Two (2) back stops with one (1) left side stop; Three (3) front stops with one (1) left side stop.

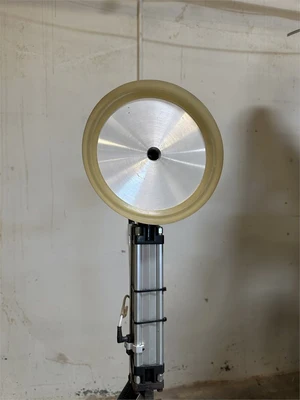

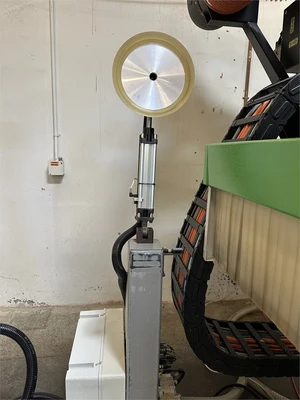

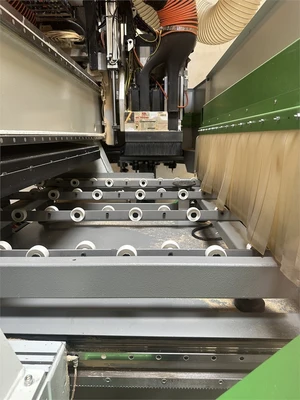

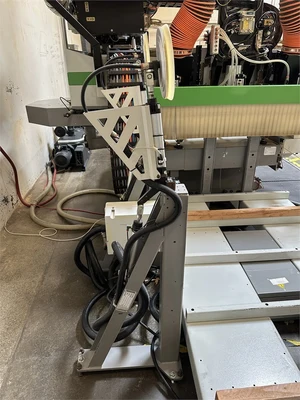

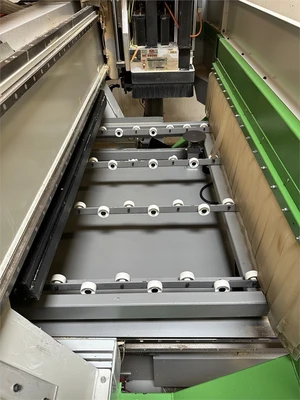

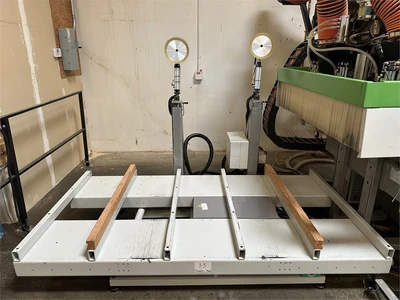

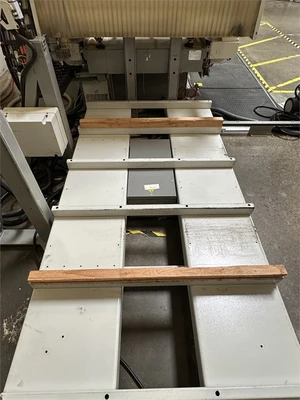

Loading System Equipped with an automatic scissor lift, idle infeed rollers leading to the CNC router, and a vacuum loading device utilizing three (3) integrated vacuum cups.

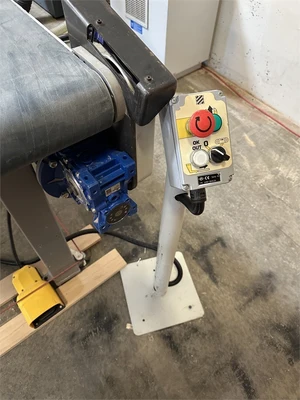

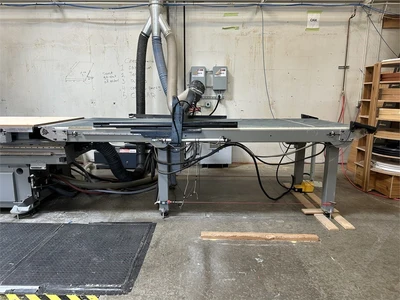

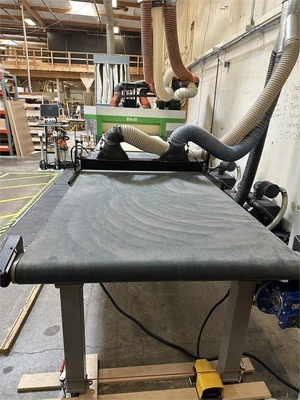

Unloading System Pusher/rake unloading device complete with integrated dust collection sweep. Accompanied by a 129" x 51" x 52" outfeed conveyor with photo eye sensor for automated start/stop control and an integrated foot pedal control.
System Infrastructure, Vacuum, & Safety

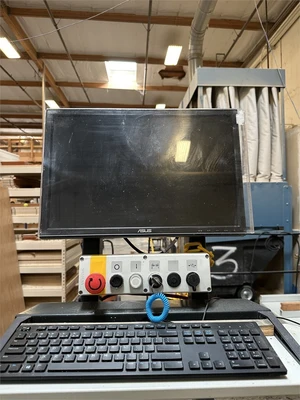

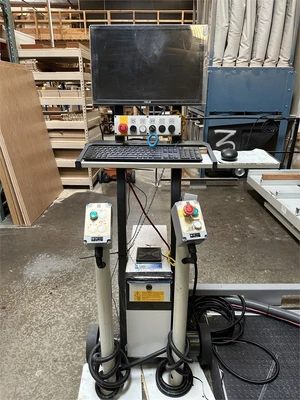

Control Software & Interface Windows PC-based interface. Housed on a mobile control stand complete with standard keyboard and mouse.

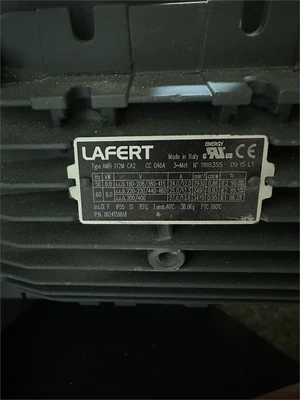

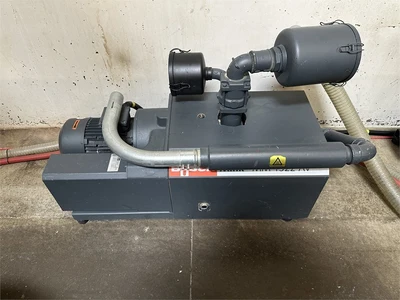

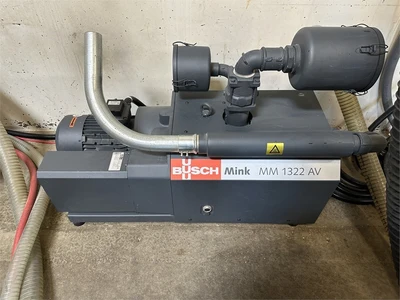

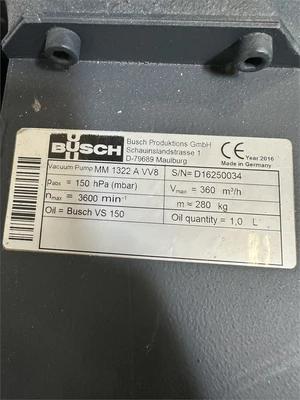

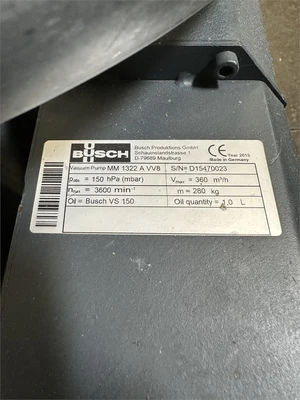

Vacuum Pumps Two (2) Busch "MM 1322 A VV8" vacuum pumps. Capacity of 360 m³/hr each, powered by individual 10 HP motors.

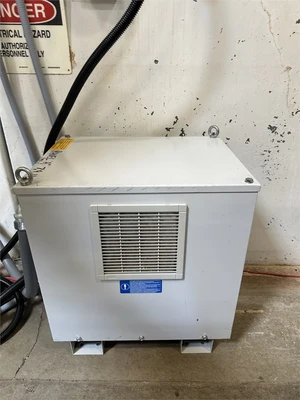

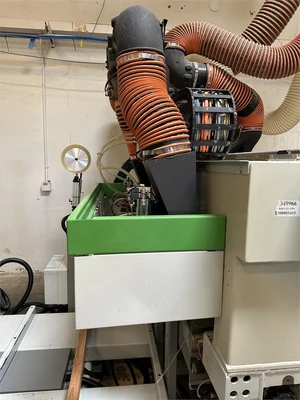

Automation & Sound Automatic lubrication system, external electrical transformer, and a top-mounted dust plenum with a structural sound enclosure over machining units.

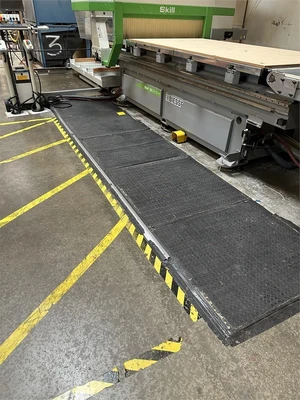

Operator Safety Heavy-duty front safety mats integrated with the system controller.
