USED 2019 BIESSE (OMAL) ELIX K3

Lot Closes:: 10/27/2026 10:00:00 AM PT

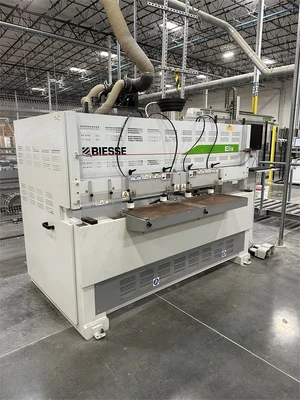

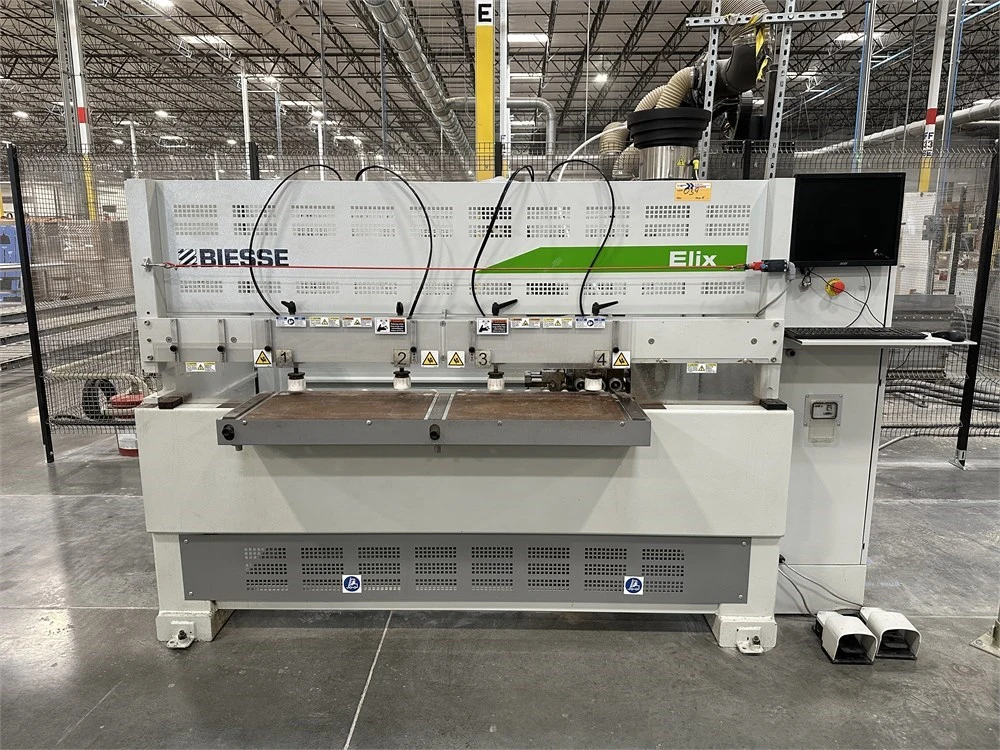

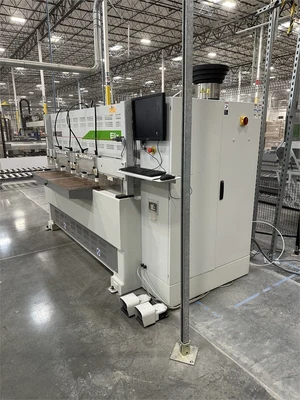

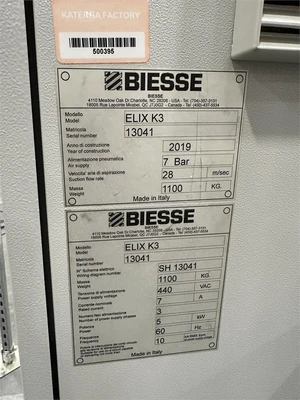

Biesse "Elix K3" CNC Bore and Dowel Machine
X-axis work area,1300 mm (51")
Y-axis, maximum depth, 40 mm (1.6")
Z-axis, maximum thickness, 40 mm (1.6")
10 mm/0.4" - 40 mm/1.6" panel thickness

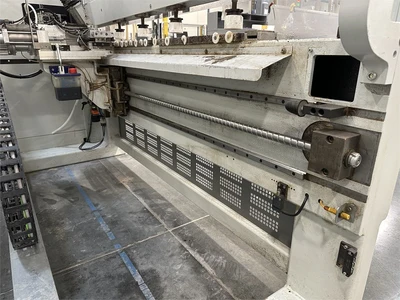

X (left to right) is CNC-controlled with ball screw and motor
Y axis (front to back) and Z axis (up and down) are manual
Panel sensing laser

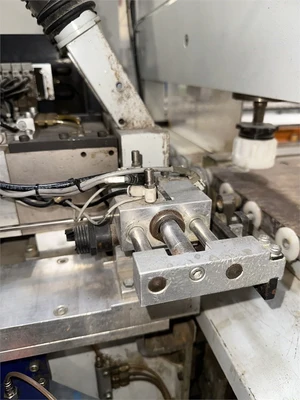

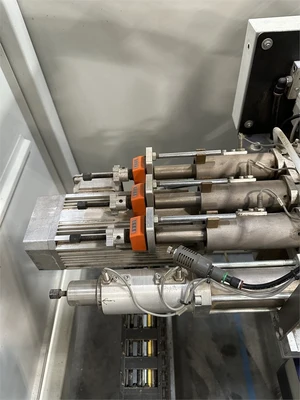

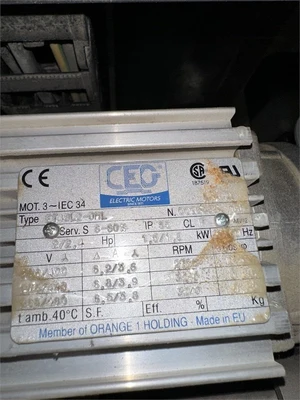

Horizontal boring unit with (3) spindles and 1.8 HP motor

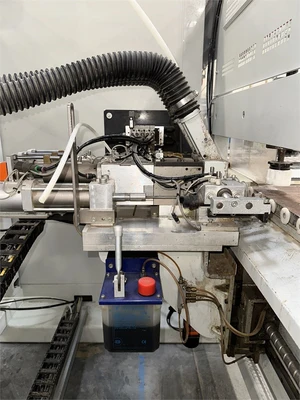

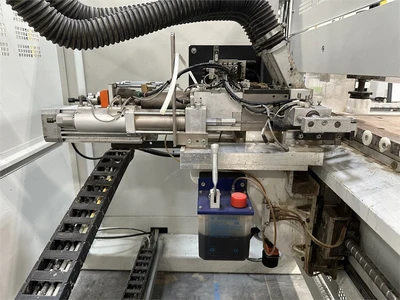

Glue/water inserter
Dowel inserter (Device Broken/Missing)

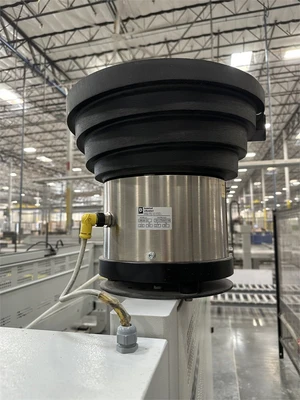

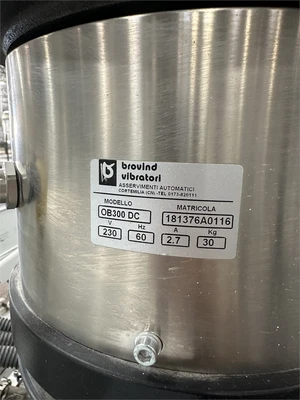

Dowel hopper

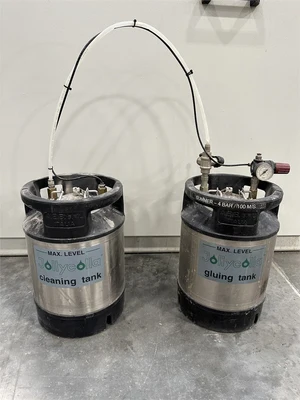

(2) tanks (one for water and one for glue)

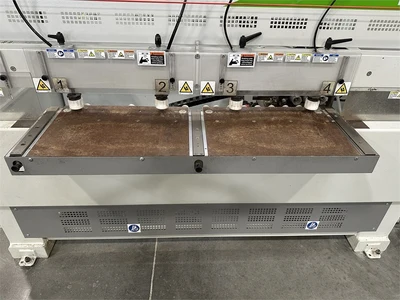

15" x 51" table

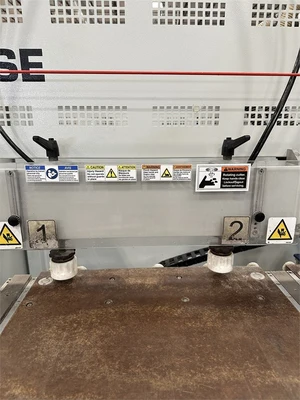

Left, center and right retractable fences
(4) independent work zones
Back fence

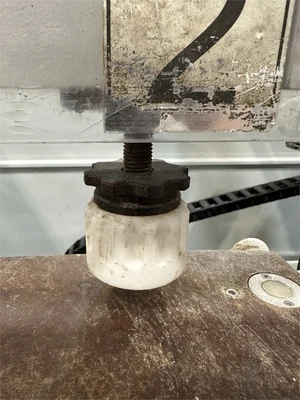

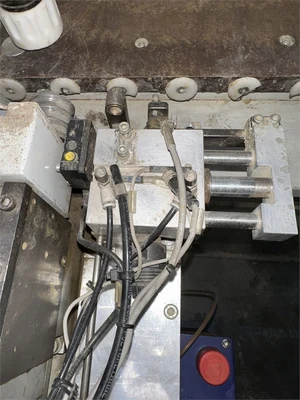

(4) pneumatic clamps

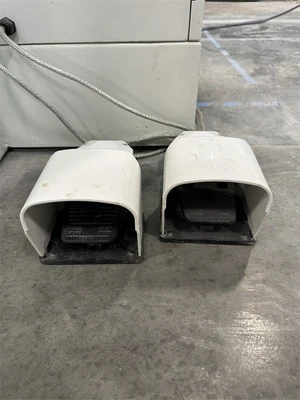

Foot pedal control
Centralized lubrication system

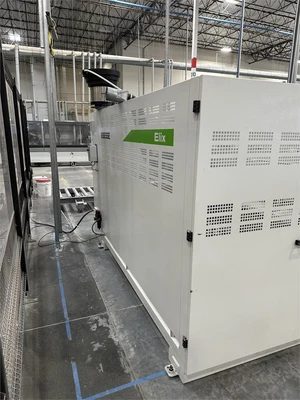

Safety enclosure
Emergency stop and line on front of machine

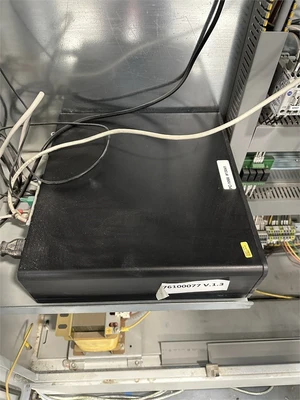

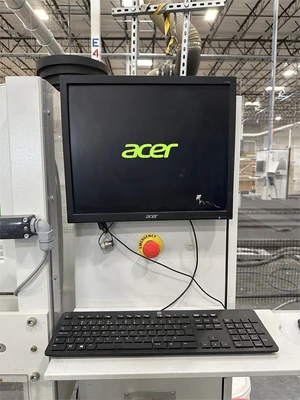

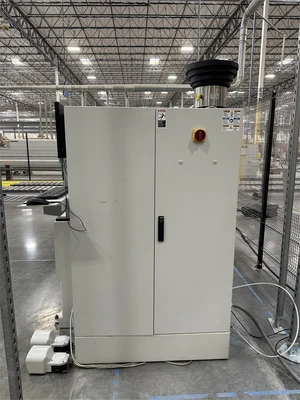

PC control operating in Windows with keyboard and mouse (Screen Turns on but Does Not Boot Up)
