USED JLT 79F-12-PC

Lot Closes:: 11/5/2026 10:10:00 AM PT

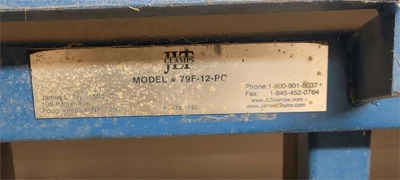

JLT "79F-12-PC" Clamp
Made in USA

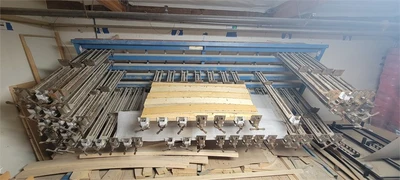

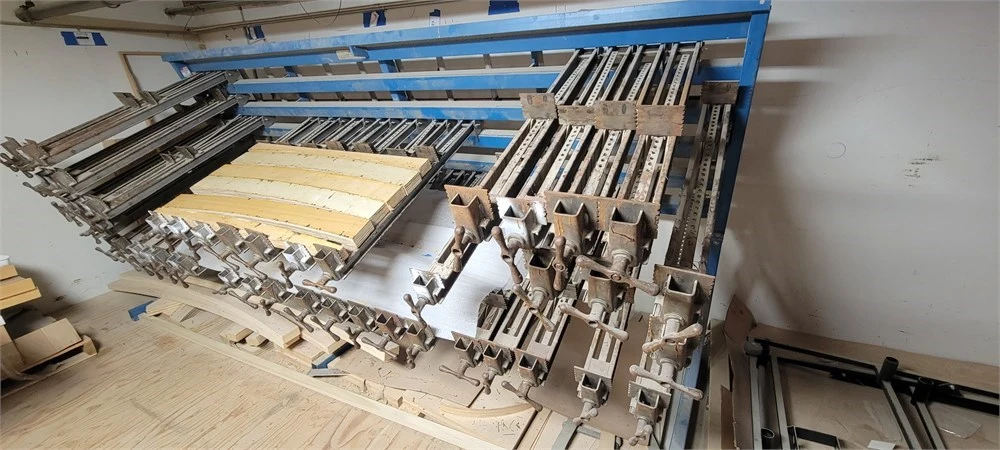

The JLT Clamps Model #79F-12-PC is an industrial-grade, 12-foot 5-row panel clamp and edge-gluing system built by the James L. Taylor Mfg. Co. This high-capacity equipment serves as a manufacturing workhorse for small to high-production woodworking facilities, providing an efficient system to securely glue solid wood components into wide, perfectly flat panels.
Structural Design & Engineering Features
• Welded Steel Frame: Constructed from 100% robotically welded heavy-gauge tubular steel. Deflection and bowing are completely eliminated under full load capacity.
• Patented Equalizer Arms: Leverages an advanced clamp arm engineering design that distributes pressure completely evenly between the front and rear jaws, ensuring perfectly flat wood panels.
• Space-Saving Profile: The multi-level configuration accommodates large panel runs and facilitates dense production curing cycles while occupying a compact footprint.
• Flexible Assembly: Clamps roll sideways smoothly on dedicated mounting plates to rapidly accommodate variable length boards and custom layup designs.
Storage Tiers 5 Gluing Levels (Rows)
Heavy-Duty Manual Clamps
Max Clamp Opening Capacity 40 Inches (Standard configuration)
Min Clamp Opening Capacity 9 Inches
Clamping Jaw Dimensions 3.5 Inches High x 5 Inches Wide
Maximum Total Weight Capacity 3,000 lbs
Clamping Force Per Clamp Up to 3,000 lbs via Manual 'T' Handles
