USED 2015 BIESSE AKRON 1445

Lot Closes:: 11/5/2026 10:00:00 AM PT

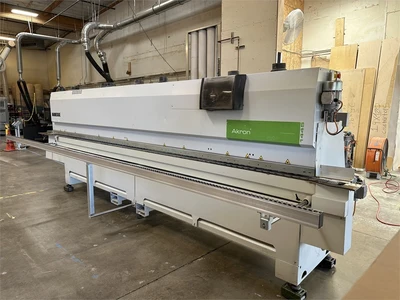

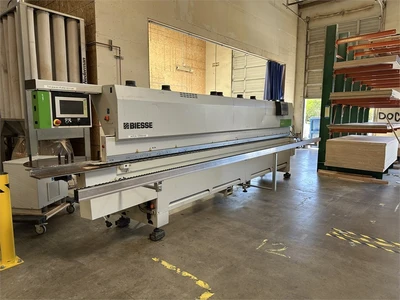

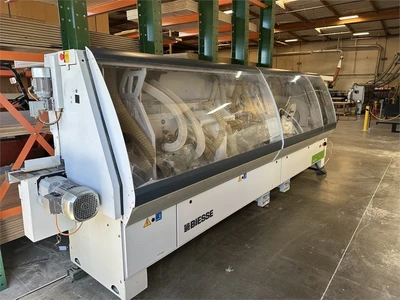

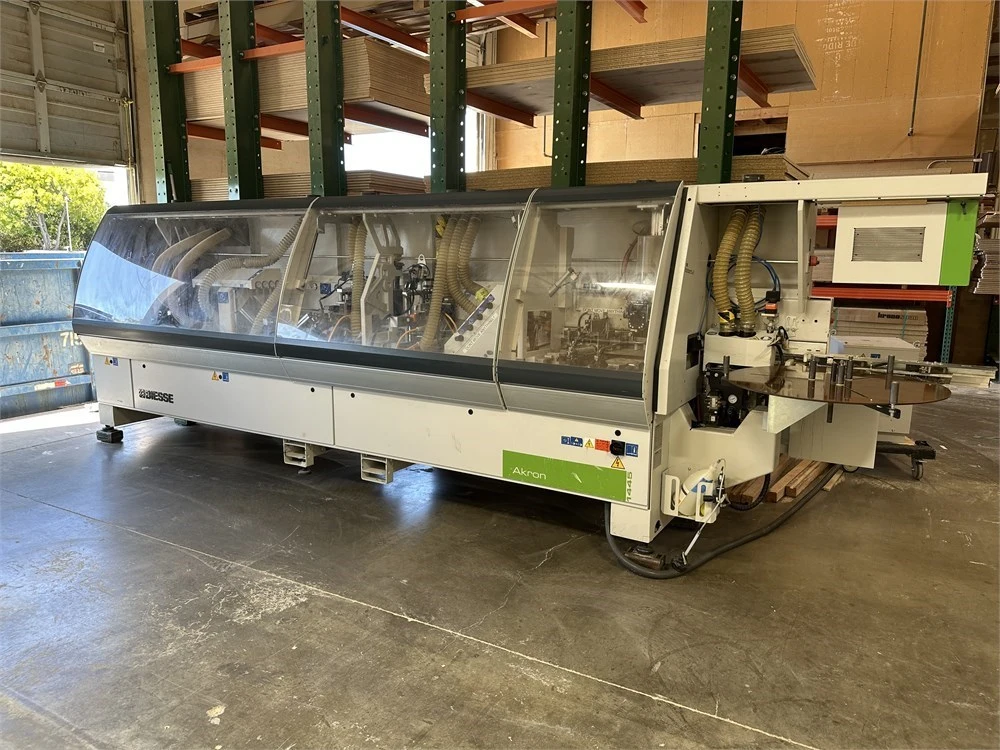

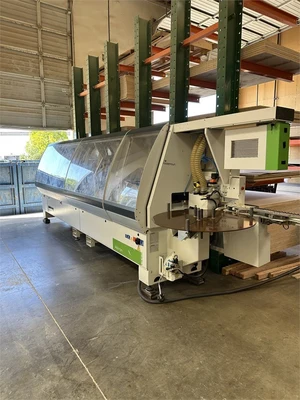

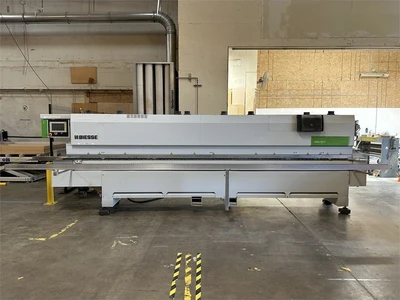

Biesse "Akron 1445" Edgebander
The Biesse Akron 1445 is a highly efficient, single-sided automatic edgebander engineered for medium-to-high production environments. Belonging to Biesse's reputable Akron 1400 series, it combines a heavy-duty monolithic base with advanced automated features to deliver seamless edge applications and immaculate edge finishing across multiple demanding work shifts.
Core Operational Features
Robust Structural Design: Built on a monolithic, torsion-resistant steel frame, the machine effortlessly absorbs processing vibrations. Instead of standard rollers, it frequently utilizes an Upper Belt Presser—a rubber belt with a stain-proof coating layered over spring-loaded connecting rods—ensuring uniform top pressure and zero slippage on delicate finishes. It also incorporates an automatic track lubrication system to ensure uniform tape movement over time.
Advanced Glue and Pre-Milling Technology:
Pre-Milling Unit: Equipped with two high-frequency motors (electrospindles) to dress the panel edge prior to gluing, completely removing surface chipping or imperfections from the upstream panel saw.
Hybrid Gluing & Quickmelt System: Features a hybrid glue head supporting quick-melt granules for traditional EVA glue, while also accommodating Polyurethane (PUR) glue blocks through a top-loading pre-melter system for superior water and heat resistance.
Adhesion Optimization: Incorporates an anti-adhesive liquid spray to keep glue from sticking to panel surfaces, paired with an adaptive IRL Infrared Lamp that pre-heats the raw panel edge before glue application to drastically boost bond strength.
Interchangeable second glue pot

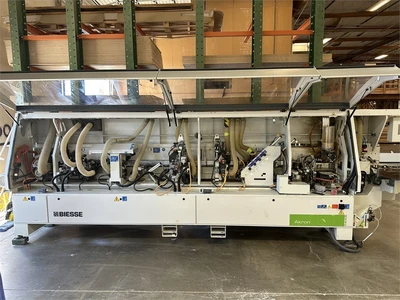

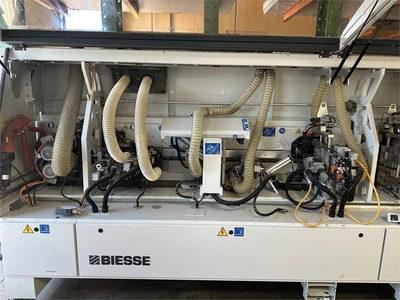

Finishing & Trimming Stations
The working stations are heavily automated and powered by servo-motors with a 0.01 mm position tolerance for zero-clearance accuracy:
End Trimming Unit: Utilizes dual independent linear guides with automatic blade tilting to cleanly eliminate front and rear overhang tape, matching up seamlessly with panel ends even when dealing with hinge holes.
Fine Trimming Unit: Dual high-frequency motors with rotating disc copiers handle fine chamfering or radius profiling.
Corner Rounding Unit: A multi-function, two-motor corner rounding station that shapes and trims the leading and trailing corner profiles on up to 3mm tape dynamically.
Scraping and Finishing Stations: Includes top/bottom Edge Scrapers for finishing PVC/ABS radiuses, Glue Scrapers to wipe away residual squeeze-out, an automated grooving spindle, and terminal Buffing Wheels

Control and Software Integration

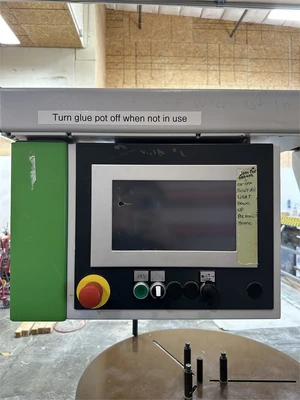

The machinery functions via a centralized Windows-based Smart Touch full HD control interface. Operators can store, program, and recall custom profile programs instantly. With automated axis control, shifting the entire line from thin 0.4mm tape to a chunky solid-wood strip can be executed through a single tap on the screen, minimizing physical setup adjustments and eliminating operator error.
Technical Specifications
Panel Height (Min/Max) 10 mm – 60 mm (0.4" – 2.4")
Edgebanding Thickness (Rolls) 0.4 mm – 3 mm
Edgebanding Thickness (Strips/Solid) 0.4 mm – 10 mm (up to 12 mm depending on setup)
Height of Edgebanding Material 14 mm – 64 mm
Panel Length Capacity 140 mm – 3200 mm
Minimum Panel Width 50 mm (at 250 mm length) or 85 mm (at 140 mm length)
Feed Speed (Multi-Speed Track) Adjustable 8, 12, 15, or 18 m/min (scaled dynamic control) Equivalent to: 39 / 59 FPM configured ranges

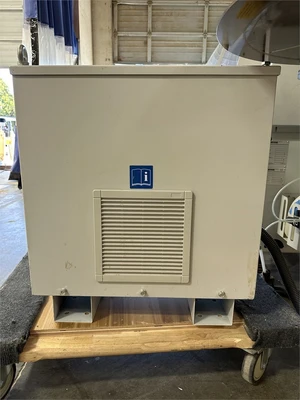

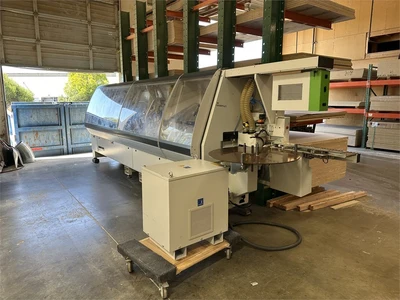

Pneumatic & Electrical 400V / 50Hz three-phase | 6 to 7 bar constant pressure *Includes External electrical transformer
Overall Machine Length Approx. 5,946 mm – 6,040 mm (config dependent)
Features & Stations

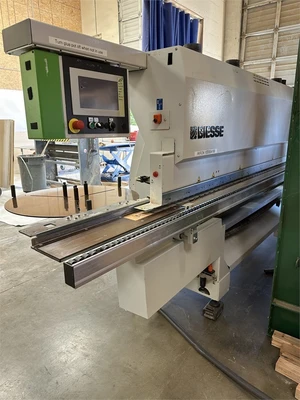

Controller: Integrated central command system for interface and adjustments.
Motorized top beam positioning: Automated thickness setup adapted to panel height.

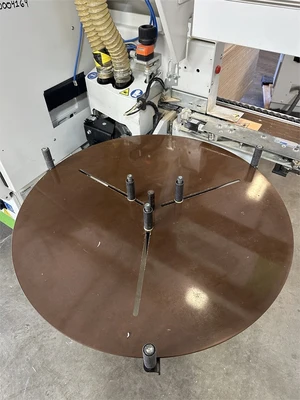

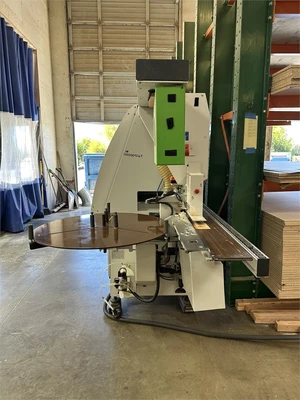

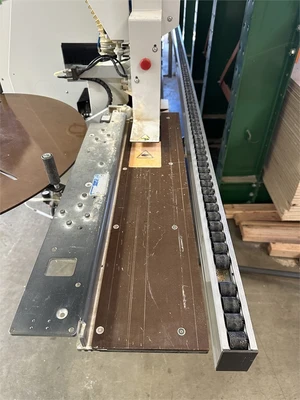

Edgebanding infeed table: 31" diameter heavy-duty rotary coil support.
Infeed fence: Adjustable alignment guide for absolute tracking accuracy.
Anti-adhesive spray station: Applied to panel surfaces to prevent stray glue adhesion.

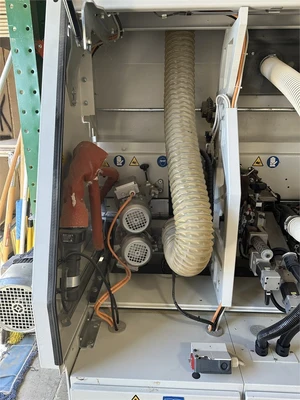

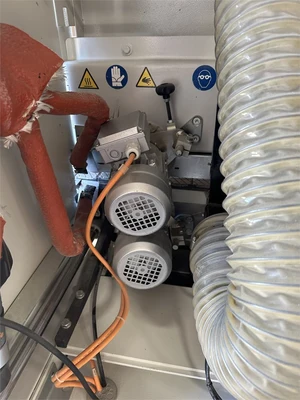

Pre-milling station: Dual-motor (2) system to square edge preparation before gluing.

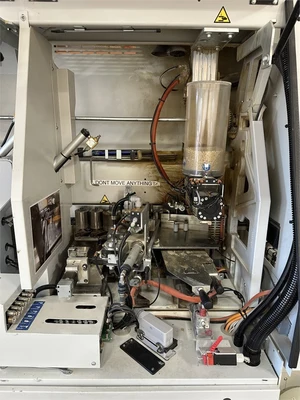

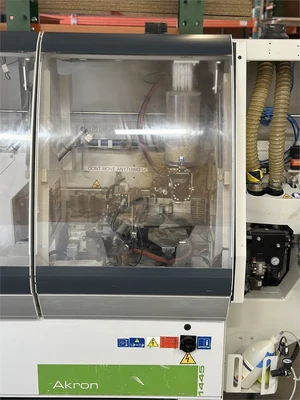

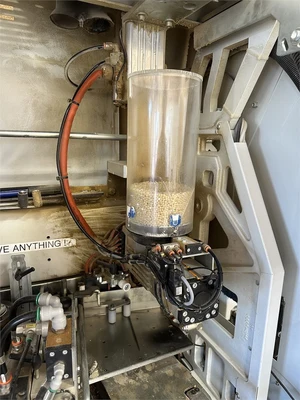

Glue pot assembly: Equipped with a pre-melt hopper and targeted application roller.
Guillotine cutter: Built-in heavy-duty automatic roll cut-off up to 3 mm capacity.
Pressure station: Formed by (1) driven and (2) idle rollers for ideal strip compression.
End trimming station: Dual-motor (2) high-frequency system for precise front/rear cuts.
Rough trimming station: Top and bottom trimming unit for primary overset removal.
Fine trimming station: Top and bottom ultra-finish unit for exact trim contours.
Corner rounding station: Dual-motor (2) tracing system for corner finishing profiles.
Profile scraping station: Top and bottom radius scrapers paired with external collection box.
Flat scraping station: Top and bottom glue joint scraper for clean panel faces.
Buffing station: Top and bottom cleaning rollers to polish completed edge profile.
Hot air blowers: Thermal treatment to revive PVC/ABS edge color and structure.
Sound enclosure: Integrated acoustic shielding with safety interlocks for noise suppression.

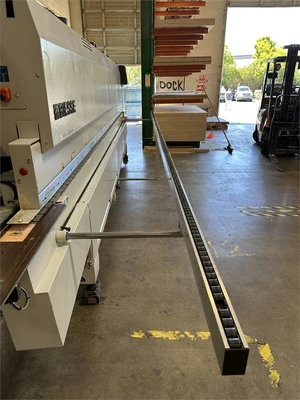

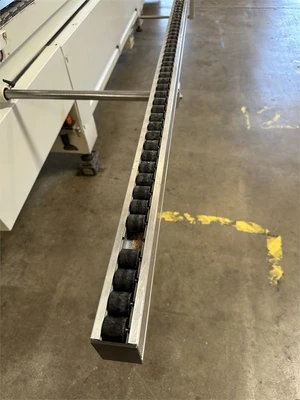

Outboard roller support: Extendable frame extension to support wide workpieces.
Forklift cutouts: Integrated into the structural heavy-gauge steel chassis frame for safe transport.
