USED 2016 SCM DMC SY TC 1350

Lot Closes:: 11/6/2026 12:15:00 PM PT

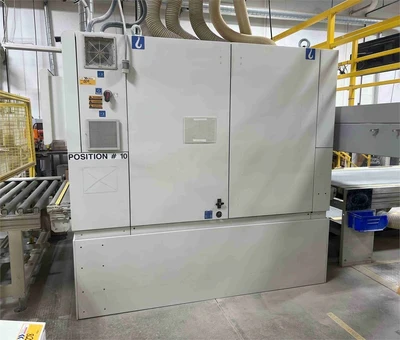

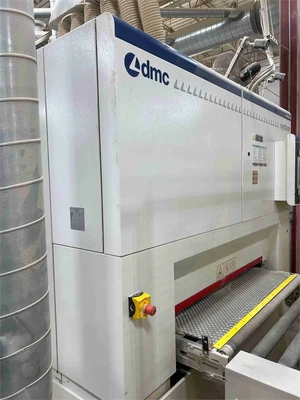

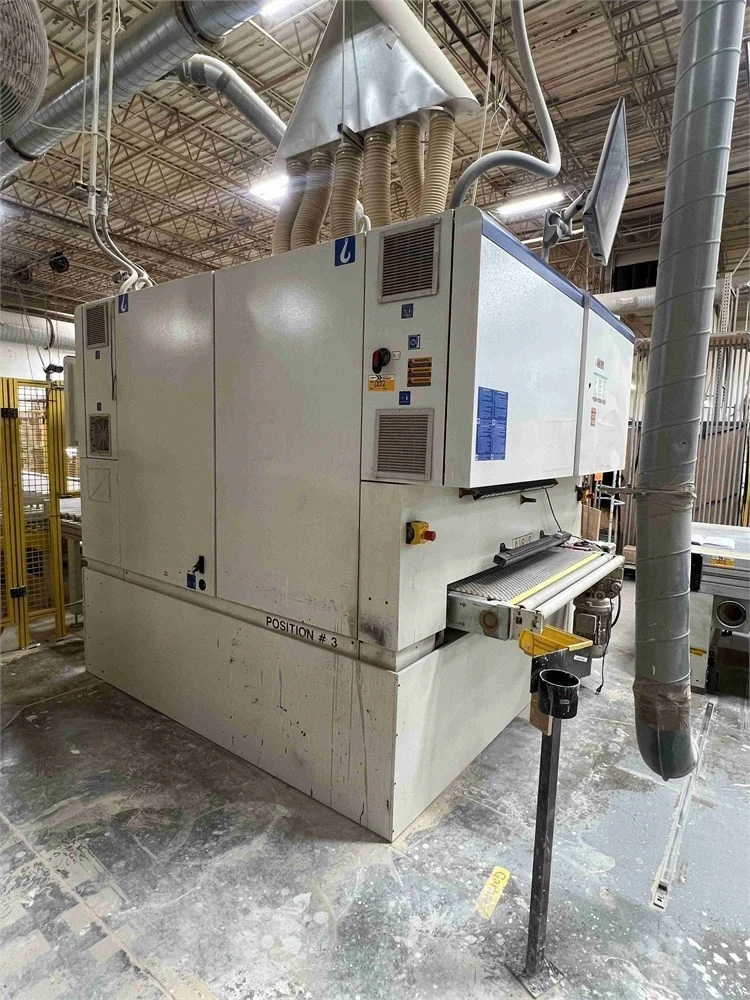

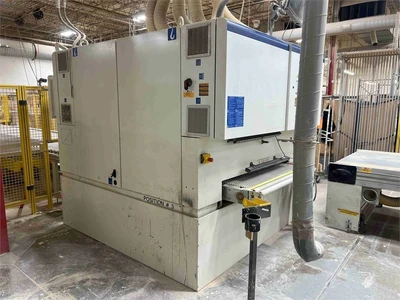

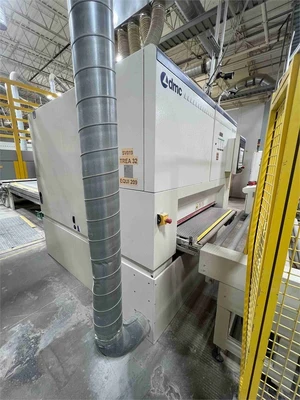

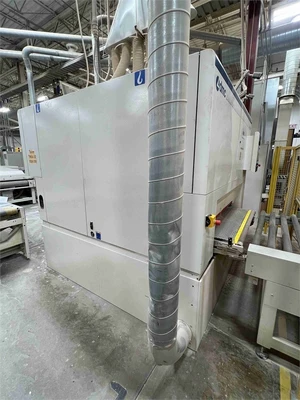

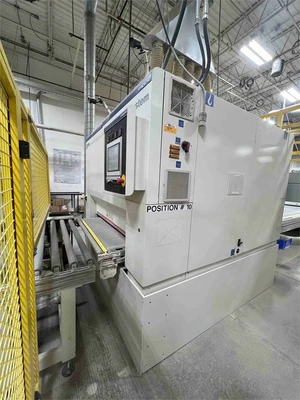

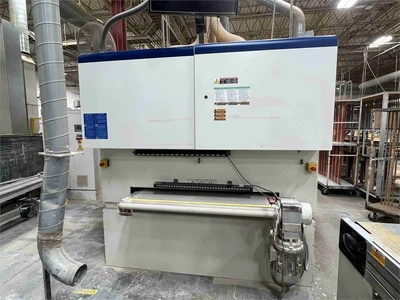

SCM "DMC SY TC 1350" Denibbing Sander - 4-Head
53" Width cap. Denibbing Sander with a patented combination of rollers and rotating/oscillating discs make this the ideal finishing solution for entry doors, cabinet doors, drawer fronts, sheet foods, shutters, face frames, furniture and much more.
Ideal solution for all sanding applications including whitewood, stain and sealer coats (including UV).

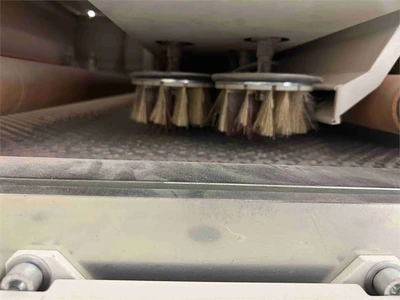

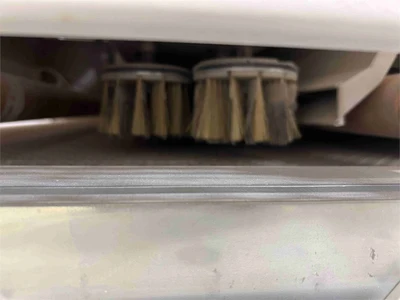

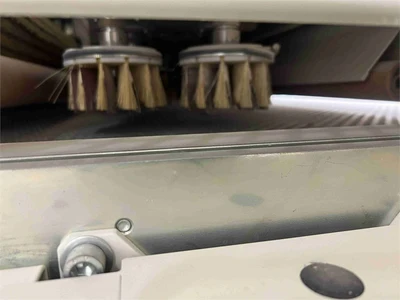

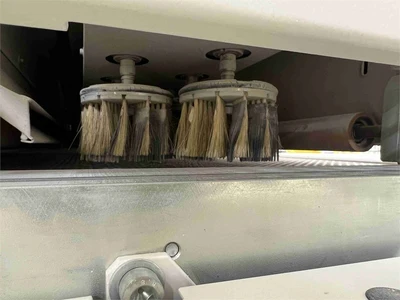

1st Station: (19) 5" Rotating discs oscillate providing very uniform edge breading in whitewood sanding and eliminates most (if not all) hand sanding of the sealer coat. Motor for the disc station (1.5 HP).

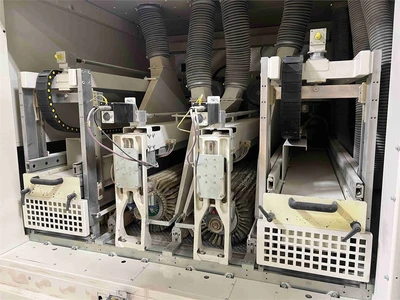

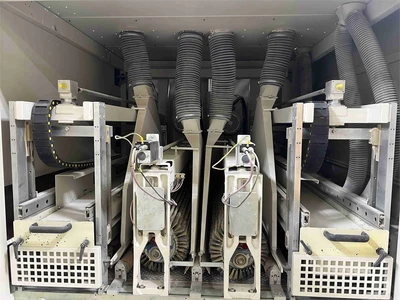

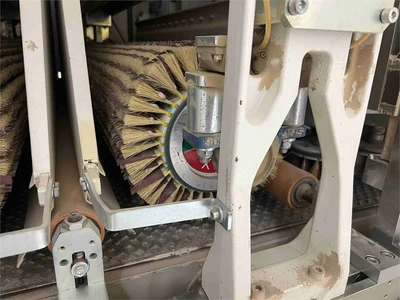

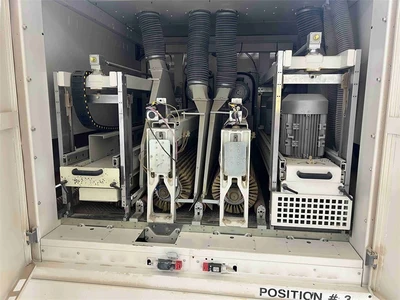

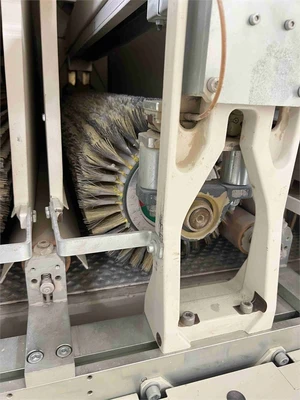

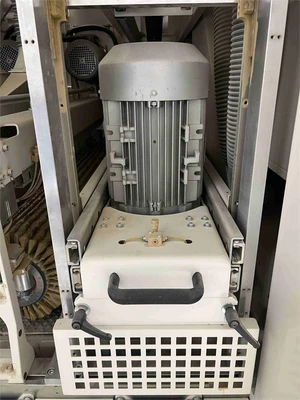

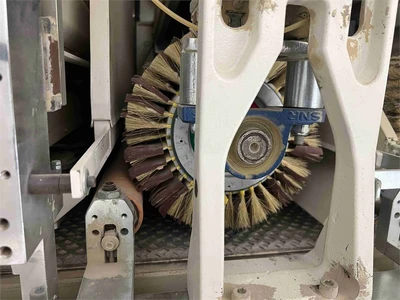

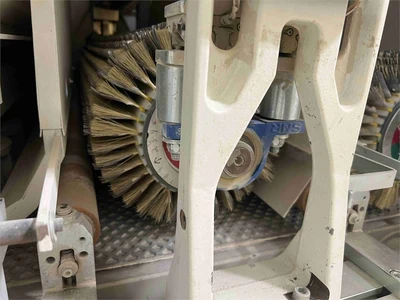

2nd Station: 12" Dia. rotating abrasive brush sanding rollers, Motors for brush heads 5.5 HP.
3rd Station: 12" Dia. rotating abrasive brush sanding rollers, Motors for brush heads 5.5 HP.
3rd Station: (19) 5" Rotating discs oscillate providing very uniform edge breading in whitewood sanding and eliminates most (if not all) hand sanding of the sealer coat. Motor for the disc station (1.5 HP).
Workpiece thickness; min. 4 mm (3/16") and max. 170 mm (6.7"); motorized thickness adjustment .

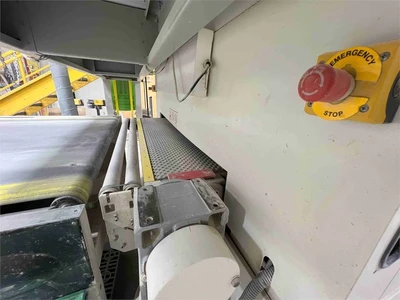

Vacuum bed with 7.5 kW (10 HP) motor.

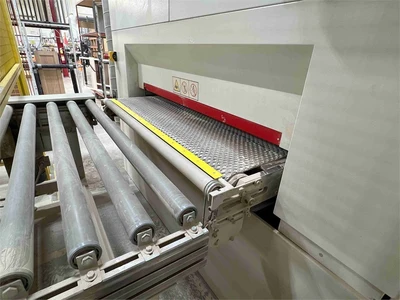

Variable vacuum bed conveyor feed speed from 6.5 - 52 FPM.
Separate variable speed adjustment for disc & roller from 25 - 300 RPM.

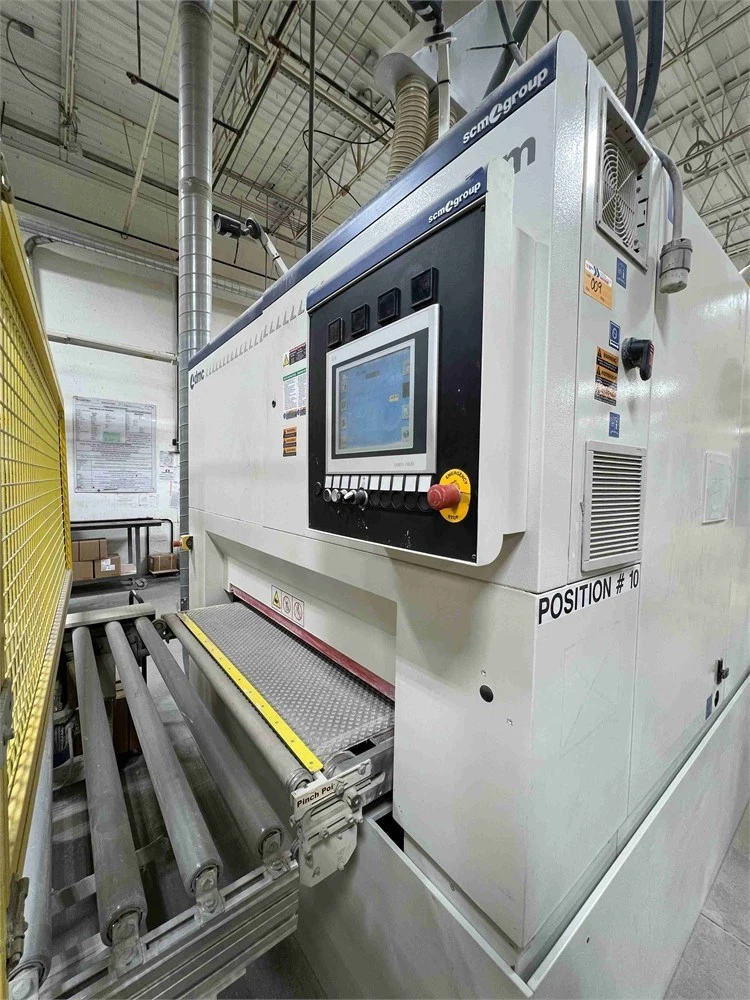

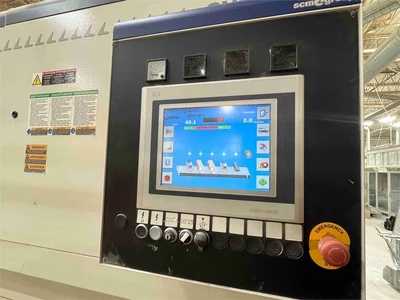

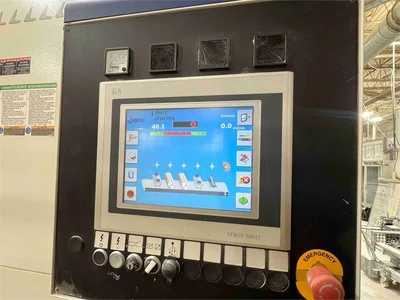

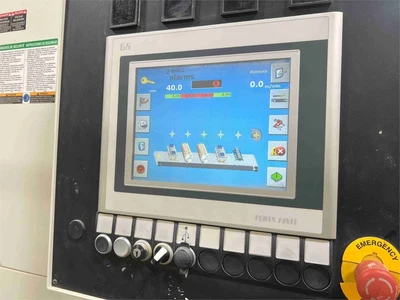

PLC Touch-screen control: Simple & user friendly " TOUCH SCREEN" PLC control with 10" color monitor; PLC storage capacity for up to (120) individual sanding programs.
