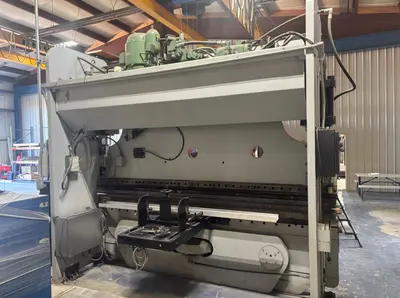

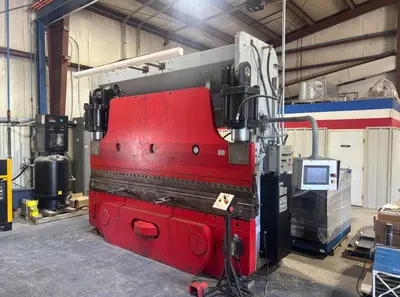

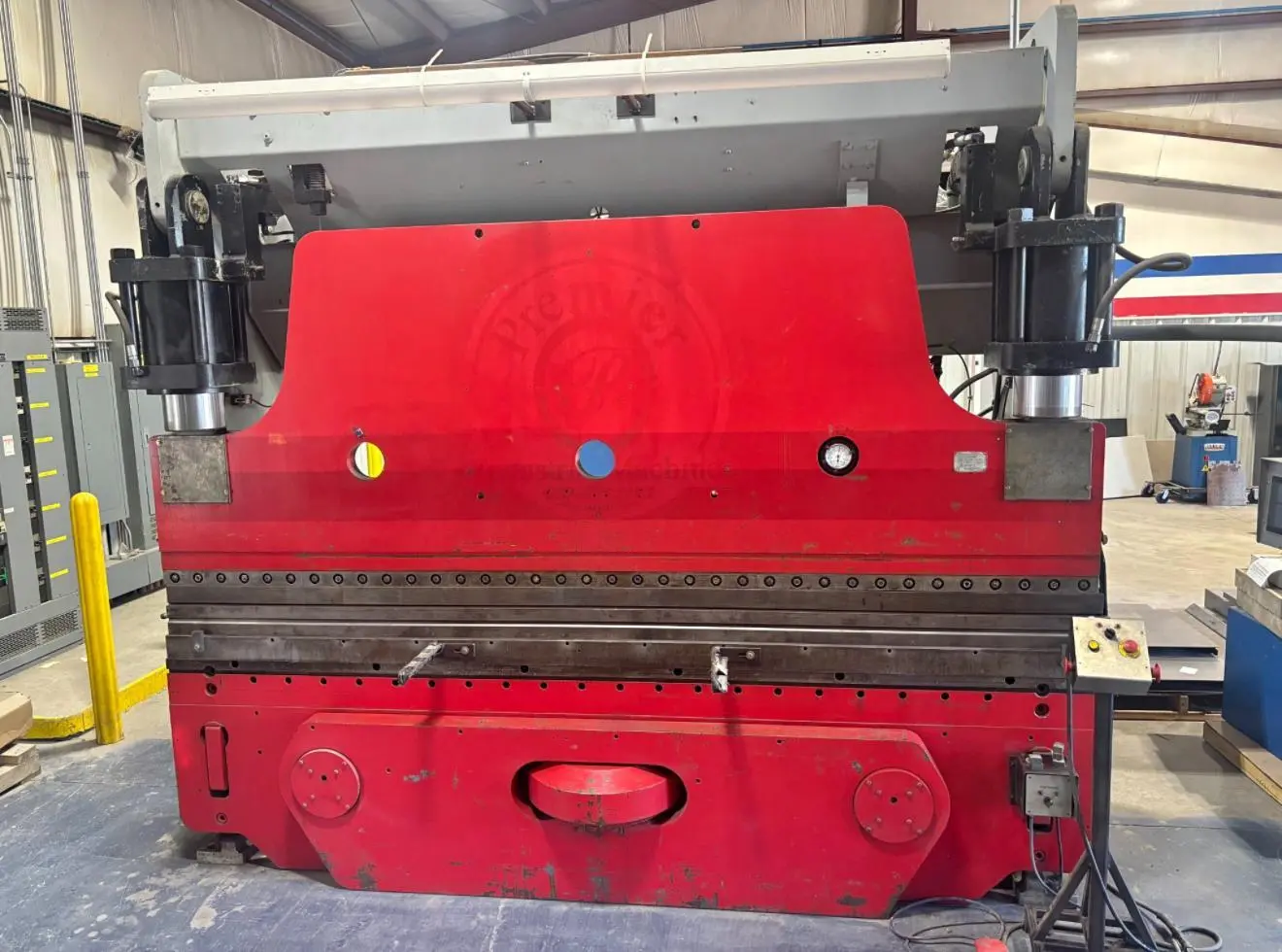

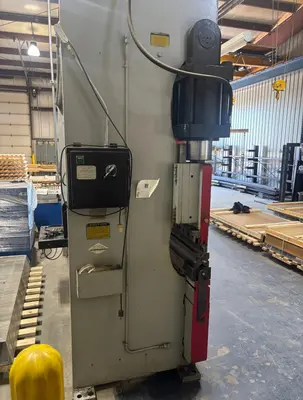

USED CINCINNATI 230X10AS
Overview
Specs

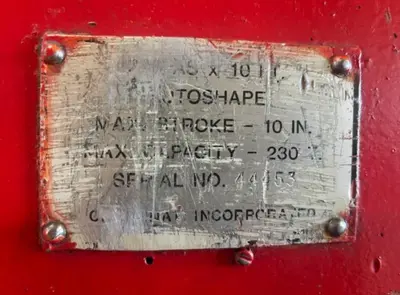

SERIAL............................: 44453
MODEL.............................: 230ASX10CAPACITY .........................: 230 TON
OVERALL LENGTH OF BED AND RAM ....: 12'
DISTANCE BETWEEN HOUSING .........: 10'6"
STROKE OF RAM ....................: 10"
OPEN HEIGHT ......................: 17"
CLOSED HEIGHT ....................: 7"
RAM SPEED HIGH ...................: 101 IPM
RAM SPEED MEDIUM .................: 49 IPM
RAM SPEED LOW ....................: 14 IPM
RAM SEED RETURN ..................: 95 IPMPOWER BACKGUAGES .................: 48"
AUTO CROWNING ....................: YES
POWER CLAMPING ON DIE RAIL .......: YESFLOOR STANDING, NO PIT REQUIRED ..: YES
ELECTRIC FOOT TRIP ...............: YES

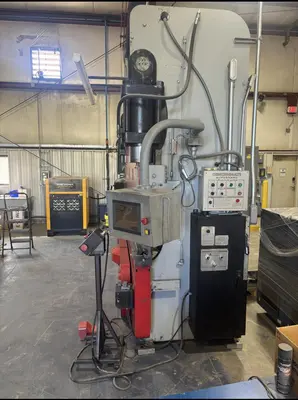

PEDESTAL STAND W/ PALM BUTTONS ...: YES

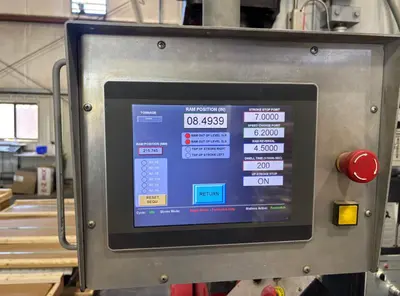

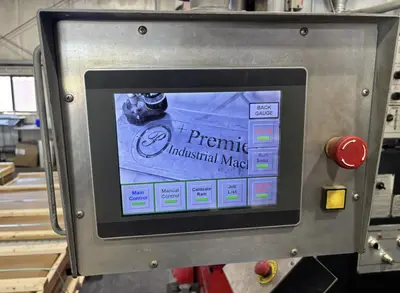

MOTOR ............................: 30 HPCYLINDERS AND HYDRUALICS REBUILT IN 2018TOUCH SCREEN CONTROL UPGRADED IN 2018. 2 AXIS CNC
