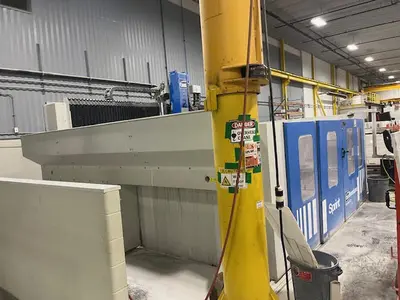

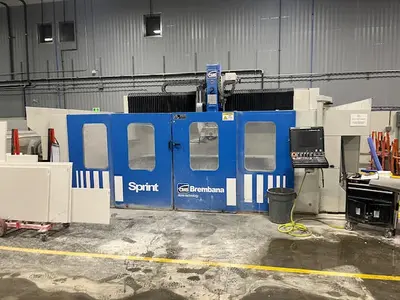

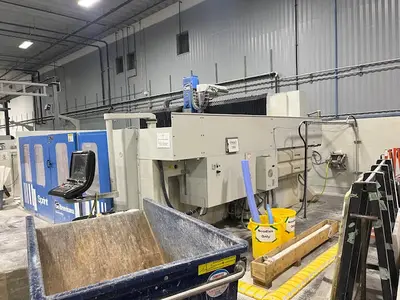

USED 2016 CMS BREMBANA SPRINT

Item Description: 5 Axis CNC Saw

Type: 5 Axis CNC Saw
Make: CMS
Model: Brembana Sprint

Year: 2016

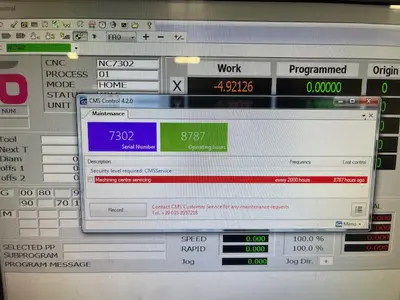

Condition (including hours used, if applicable):

Known defects: None

This information is provided by a third party online resource and we do not warranty its accuracy.

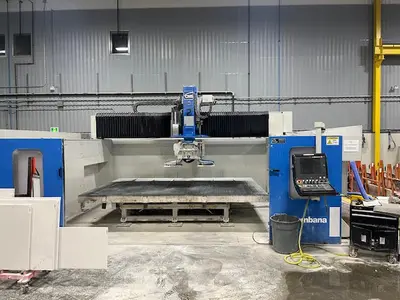

CNC 5-axis bridge saw

Numerically Controlled 5 interpolated-axis bridge saw equipped with tilting head and fixed table to carry out any type of machining, cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations, on slabs and stone blocks. This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces. The 4.250 mm stroke of the bridge guarantees easy machining of large sized slabs or stone blocks.
This machine can be very customized, it is the best solution for large sized fabshop with high productivity of:

kitchen countertops

vanity tops

wall panels for interiors and exteriors

flooring

doorsteps, staircases and thresholds

street furniture

Brembana sprint is also available with the following configurations:

with automatic exchange system of the workbenches (DUAL)

cutting line equipped with a belt working table (BT)

pendular machining

with an automatic unloading system of the pieces
Advantages

UNRIVALLED MECHANICS

Open frame version, to install on concrete or carpentry shoulders to guarantee stability and rigidity to make the most difficult processing and to ensure long lasting.

MOTION ACCURACY

As a guarantee of quality all movements are powered by brushless motors coupled with a precision reduction gear and transmitted through a rectified and tempered guides and ball bearings.

LIMITLESS TECHNOLOGY

The machine can be equipped with a powerful ISO 50 electrospindle which, together with the 5 interpolated axes, transform the machine into a modern and complete 5-axis machining center.

+33% PRODUCTIVITY WITHOUT MANUAL MOVEMENTS

Thanks to the vacuum manipulator, it is possible to automatically move the cut pieces to optimize the cutting of the slab and reduce processing waste.

Technical data

X axis stroke
4250 mm / 167 in

Y axis stroke
2550 ÷ 7200 mm / 100 ÷ 283 in *

Z axis stroke
600 ÷ 900 mm / 24 ÷ 35 in

Disk diameter
350 ÷ 825 mm / 14 ÷ 32 in

Motor
18,5 kW / 25 HP

Motor revolution
0÷5000 rpm (optional 0÷6000 rpm)

Electrospindle (optional)
13 kW / 18 HP – 0÷8000 rpm – ISO 50

Maximum working thickness (with 90° disk Ø 625 mm)
200 mm / 8 in

Maximum working thickness (with 45° disk Ø 625 mm)
130 mm / 5 in

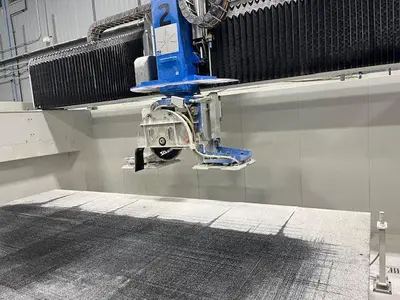

Head revolution (4th axis)
± 270° (540°)

Head inclination (5th axis)
+8° -90°

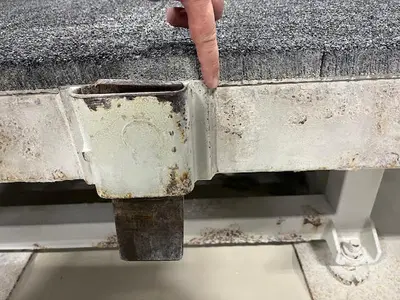

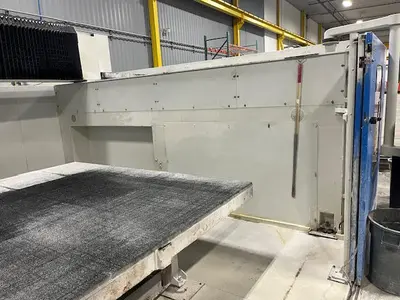

Workbench dimensions
4200×2500 mm / 165×98 in*

Minimum space required for installation
7700x4680x3780 mm / 303x184x149 in
