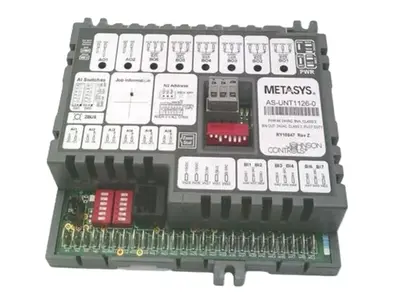

Johnson Controls AS-UNT1126-0 Unitary Controller, 6 BO/2 AO [Refurbished]

The Johnson Controls AS-UNT1126-0 is a UNT1100 Series Unitary Controller, a Metasys Application Specific Controller for single-zone and room-level HVAC equipment. This model carries six analog inputs, six binary inputs, two analog outputs and six binary outputs.

The UNT1100 is a stand-alone digital controller that can also report to a Metasys supervisory device over the N2 Bus, a two-wire plus reference network using addresses 1 through 253. Analog inputs are set with two banks of DIP switches for resistance/temperature elements, 0 to 2 VDC or 0 to 10 VDC signals, and a second bank sets the N2 address. Binary outputs are triacs that switch 24 VAC to relays, solenoids and actuators, while the two analog outputs drive modulating valve and damper actuators. A Zone Bus connection, available as an eight-pin phone jack or spade terminals, links a room sensor or a service laptop to the controller. The controller snaps onto DIN rail or mounts to a surface, uses spade quick-connect terminations, and is configured, downloaded and commissioned with HVAC PRO for Windows.

* Brand / Manufacturer: Johnson Controls
* Model / Part Number: AS-UNT1126-0
* Series: Metasys UNT1100 Series Unitary Controller
* Analog Inputs: 6 (DIP-selectable resistance/temperature, 0 to 2 VDC or 0 to 10 VDC)
* Binary Inputs: 6
* Analog Outputs: 2
* Binary Outputs: 6 (24 VAC triacs)
* Supply Power: 24 VAC, 50/60 Hz, Class 2, 40 VA per typical system
* Communication: Metasys N2 Bus (2-wire plus reference), addresses 1 to 253
* Zone Bus: 8-pin phone jack or spade terminals for room sensor
* Terminations: Spade quick connects
* Ambient Operating: -40°F to 140°F (-40°C to 60°C), 10 to 90% RH
* Dimensions: 165 x 163 x 56 mm (6.5 x 6.4 x 2.2 in.)
* Mounting: DIN rail or surface
* Configuration Software: HVAC PRO for Windows
* Agency Compliance: FCC Part 15 Class A, CSA C22.2 No. 205

Typical applications include unit ventilators, fan coil units, heat pumps, single-zone air handlers and other room-level HVAC equipment requiring modulating valve or damper control, operating stand-alone or on a Metasys N2 network.. Johnson Controls. Johnson Controls. AS-UNIT1126-0.
