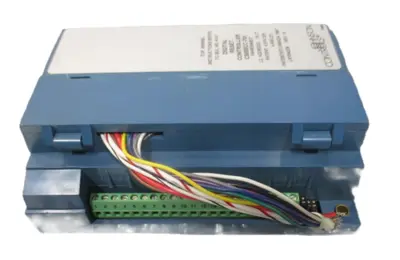

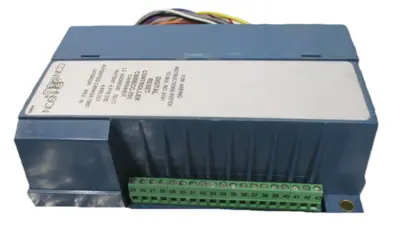

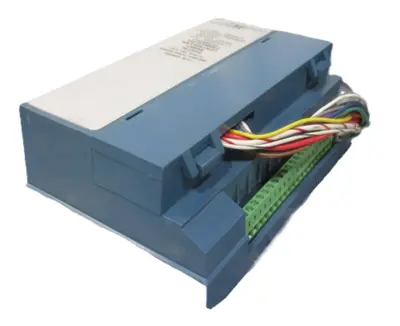

Johnson Controls C500ECC-701 DSC-1000 Reset Controller [Refurbished]

The Johnson Controls C500ECC-701 is the repair / exchange unit for the DSC-1000 Series two loop reset controller. The -701 suffix identifies it as a repair part rather than a new-installation code: Johnson Controls' ordering guidance for this platform states that a "-700" repair part can be ordered through normal ordering procedures, with credit given for the exchanged item.

Functionally it is the DSC-1000 two loop reset controller, documented by Johnson Controls as configurable to control two loops with setpoint reset from a second sensor, so each loop's setpoint can be driven automatically from another measured variable - most commonly outdoor air temperature. Each loop is structured as an analog input to analog output sideloop and the control type is PI control with a reset schedule. DSC-1000 controllers operate standalone and can also be brought onto a Metasys network through a Metasys Integrator.

* Brand / Manufacturer: Johnson Controls
* Model / Part Number: C500ECC-701
* Series: Johnson Controls DSC-1000
* Product Type: Two loop reset controller - repair / exchange unit
* Suffix Meaning: -700 series codes are repair parts; exchange credit applies for the returned item
* Standard Equivalent: C500ECC-1
* Loops: 2, each with setpoint reset from a second sensor
* Control Type: PI control with reset schedule
* Staging Expansion: R353/S353 stage modules; up to 10 stages driven by one R353
* Network Integration: Metasys network via Metasys Integrator
* Documented Replacement Path: Metasys UNT Controller or AHU Controller - application group Generic Input/Output, application name Point Multiplexer

Typical applications are service replacement of a failed DSC-1000 two loop reset controller in an existing installation - for example outdoor-air-reset hot water or chilled water temperature control - where the site is not yet ready to migrate to the Metasys Application Specific Controller line.. Johnson Controls. Johnson Controls. C500ECC-701.
