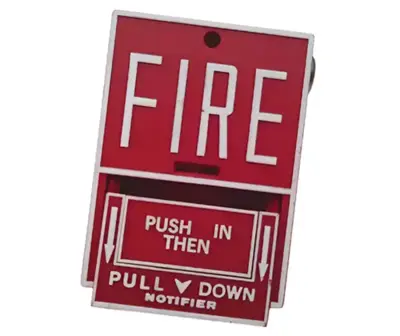

Johnson Controls BGX-101L Addressable Fire Alarm Station [Refurbished]

The Johnson Controls BGX-101L is an addressable dual-action manual fire alarm pull station with a key lock. Dual action means the user must perform two distinct motions to signal an alarm - push in, then pull down - which reduces accidental and nuisance activations compared with a single-action station.

As an addressable station the BGX-101L reports its own identity to the fire alarm control panel over the signalling line circuit, so the panel annunciates the specific station that was operated rather than a whole zone. The key lock allows authorized personnel to open the station for testing and to reset it after activation. Johnson Controls references BGX-101L installation in the IFC-200 fire alarm control panel documentation; the station is the Johnson Controls-branded counterpart of the Notifier BGX-101L in the BG-10 series family.

* Brand / Manufacturer: Johnson Controls
* Model / Part Number: BGX-101L
* Product Type: Addressable manual fire alarm pull station
* Action: Dual action (push in, pull down)
* Security: Key lock
* Circuit Type: Addressable signalling line circuit
* Panel Reference: Johnson Controls IFC-200 fire alarm control panel
* Series Family: BG-10 series

Typical applications include manual alarm initiation at exits, stairwells and corridors in commercial, institutional and multi-occupancy buildings on addressable fire alarm systems. Note that this is a fire alarm life-safety product, not an HVAC control component.. Johnson Controls. Johnson Controls. BGX-101L.
