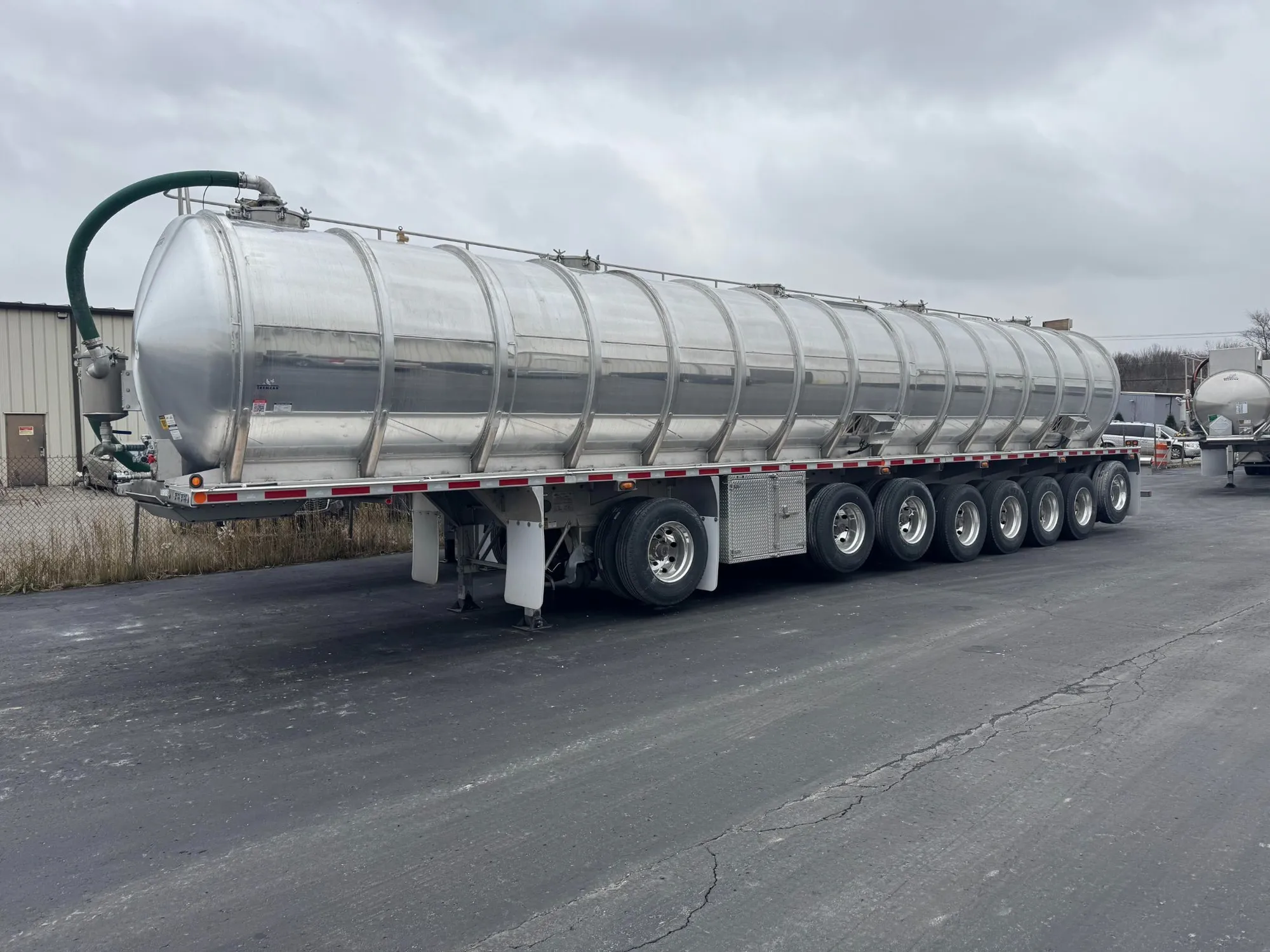

NEW 2027 Tremcar Non-Code Aluminum Vacuum Trailer

1 DIMENSIONS LENGTH : 52' HEIGHT : 154"

WIDTH : 102"
ALL DIMENSIONS ARE SUBJECT TO MANUFACTURING TOLERENCES

2 TYPE NON-CODE ALUMINUM VACUUM TANK
EIGHT (8) AXLES SEMI-TRAILER

3 SHAPE CYLINDRICAL 82" O.D. 5" SLOPE TO REAR
4 PRODUCT(S) MISC., COMPATIBLE WITH MATERIAL AND DESIGN OF TANK

LOADING DENSITY 10LBS/USG

5 REGULATION NON-CODE, MAWP 15 PSIG & FULL VACUUM, TEST 22.5 PSIG, TEMP. 200 F
5A TRACTOR **DESIGNED BASED ON STANDARD TRACTOR SPECIFICATIONS. NOTE THAT IF CLIENT TRACTOR
INFO IS DIFFERENT THAN INFO PRESENTED BELOW PLEASE INDICATE IN CHART BESIDE**
WHEEL BASE: 210 INCH INCH
TANDEM TIRE SPREAD: 55 INCH INCH
5TH WHEEL HEIGHT: 49 INCH INCH
FRONT AXLE WEIGHT: 10,000 LBS LBS
TANDEM WEIGHT: 8,000 LBS LBS

B A R R E L

6 COMPARTMENT(S) 1
7 CAPACITY 13,000 USG + 1%
8 INNER SHELL ALUMINUM GRADE : 5454-H32
THICKNESS : 0.250"
FINISH : MILL
WELD FINISH : W-0
LENGTH : 568"
9 HEADS ALUMINUM GRADE : 5454-0
THICKNESS : 0.250"
FINISH : MILL
WELD FINISH : W-0
TYPE: TORISPHERICAL
OUTSIDE SPIN POLISH : YES
10 BAFFLES 4 ALUMINUM GRADE : 5454-0 0.375"
FINISH : MILL
WELD FINISH : W-0

12 SUMP 1 6" SCH40 ALUMINUM PIPE LOCATED AT THE BOTTOM OF REAR HEAD
13 MANHOLE(S) 4 NVE 206-2006-A, 20" DIAMETER CAST ALUMINUM LID WITH WINGNUTS AND
0,625" SQUARE BUNA GASKET INSTALLED AT TOP OF TANK, HINGED TO FRONT
CENTER MANWAY INSTALLED AT CENTER. FRONT AND REAR MANWAYS
EVENTLY SPACED AND BETWEEN BAFFLES
1 REAR HEAD NVE 206-2006-A 20" MANHOLE
INSTALLED AT BOTTOM 1/3 OF REAR HEAD
SEALS: YES
1 NVE 206-2006-4NPT-8, 20" CAST ALUMINUM PRIMARY SHUTOFF WITH WINGNUTS AND
0.625" SQUARE BUNA GASKET INSTALLED AT FRONT TOP OF TANK, HINGED TO FRONT
INCLUDING 10" STAINLESS STEEL BALL CAGE WITH 8" STAINLESS STEEL FLOAT BALL AND 4" HOSE BARB

14 CLEAN OUT(S) N/A
S T R U C T U R E
16 REINFORCING RINGS 15 ALUMINUM CHANNEL FULLY WELDED TO THE BARREL
17 SHELL SUBFRAME ALUMINUM CROSSMEMBERS AND OUTRIGGERS
18 INSULATION N/A
19 OUTER SHELL N/A

PIPING

20 TYPE OF CABINET N/A
21 PIPING 1 6" SCH40 ALUMINUM PIPE OUTLET EXTENDING FROM REAR HEAD SUMP DISCHARGE LINE

SLOPING DOWN TO REAR

LOAD LINE 1 4" SCH40 ALUMINUM LOAD LINE INSTALLED IN LOWER PORTION OF REAR HEAD LOAD LINE

OFFSET TO RIGHT OF REAR 20" MANWAY. INSTALL 4" INTERNAL RISER LINE
OUTBOARD OF HEAD WITH A SLIGHT DOWNWARD SLOPE.
***CONNECTION SHOULD BE ACCESSIBLE AT SIMILAR HEIGHT TO REAR OUTLET CONNECTION***

1-PRIMARY SHUTOFF 1 ALUMINUM PRIMARY SHUTOFF IN #1 MANWAY (SEE ITEM 13)
2-SECONDARY SHUTOFF 1 10 GALLON ALUMINUM BODY AND LID MOISTURE TRAP ASSEMBLY 216-100-4HB-A

WITH 2" DRAIN VALVE, HYPALON GASKET,
6" STAINLESS STEEL FLOAT BALL & CAGE ASSEMBLY
DRAIN VALVE IS EQUIPPED WITH HOSE TERMINATING AT LANDING GEAR

3- ISOLATION VALVE 1 4" BETTS WET-R-DRI WD419ALVB AIR / SPRING ISOLATION VALVE INSTALLED IMMEDIATELY
AFTER PRIMARY SHUT OFF WITH FLIPPER SWITCH INSTALLED ON CURBSIDE FRONT FENDER

4- HOSES 4" CHEMICAL PRESSURE/VACUUM HOSE CONNECTED FROM PRIMARY TO

SECONDARY WITH CAM LOCKS. SECONDARY TO SOLID LINE AND THEN TO THE VANE PUMP
22 VALVE(S) 1 4" NVE 180-4C SINGLE GATE VALVE STEEL CAST BODY, STAINLESS STEM AND VITON SEAT

AT REAR OF LOAD LINE
1 6" NVE 180-6C SINGLE GATE VALVE STEEL CAST BODY, STAINLESS STEM AND VITON SEAT
INSTALLED AT BOTTOM OF REAR LOAD LINE
NOTE ALL MANUAL SLIDING GATE VALVE MUST HAVE A LEVER, NO FLY WHEEL.
23 OUTLET FITTINGS 1 6" ALUMINUM TYPE-A ADAPTER WITH DC TYPE COVER AND KEEPER WIRE
1 4" ALUMINUM TYPE-A ADAPTER WITH DC TYPE COVER AND KEEPER WIRE

24 PUMP ** FURNISHED AND INSTALLED BY CUSTOMER **
25 MOTOR ** FURNISHED AND INSTALLED BY CUSTOMER **
25 PUMP PLATFORM NONE
26 HYDRAULIC LINES 2 STAINLESS STEEL LINES ONE 1" PRESSURE LINE AND ONE 1" RETURN LINE, ATTACHED TO OUTRIGGERS ON
DRIVERSIDE FRONT ENDS OF LINES TERMINATE AT CENTRE OF FRONT HEAD WITH MALE NPT WITH PLASTIC
CAPS REAR ENDS OF LINES TERMINATE NEAR VACUUM PUMP AREA
NOTE: BOTH LINES MUST BE 1'' (CUSTOMER REQUEST)
LEVEL INDICATOR 1 FLOAT BALL TYPE LEVEL INDICATOR NVE 400-319-8AW WITH 8" SS FLOAT BALL ON CURBSIDE
NEAR CENTER (NOT UNDER MANHOLE). ARROW IS TO BE RED FOR MAXIMUM VISIBILITY &
LABELLED EMPTY AND FULL. INSTALL FLOAT HANDLE ON GAUGE
1 GARNET 806B ANNIHILATOR SEE LEVEL GAUGE WITH DIGITAL LED DISPLAY
INSTALLED ON DRIVER'S SIDE NEAR REAR OF TRAILER

37 VACUUM GAUGES 2 GLYCERINE FILLED ANTI-SHOCK PRESSURE/VACUUM GAUGE (WINTER# PFQ702)
LOCATION: ONE LOCATED CURBSIDE ON SECONDARY SHUT-OFF POINTING DOWN AND ONE
LOCATED ON REAR RING CURBSIDE POINTING REAR.

T O P O F T H E T A N K
43 MANHOLE BOX N/A
44 VENTING 2 2" BRASS PRESSURE RELIEF SET AT 15 PSI RIV # TV200PR INSTALLED ON 2" NPT COUPLING
INSTALLED ONE NEAR MIDDLE OF TANK AND ONE JUST BEHIND THE PRIMARY

45 VACUUM RELIEF N/A NOT REQUIRED FULL VAC RATED
47 CATWALK 1 11.75" ALUMINUM CATWALK INSTALLED ON CURBSIDE AT 2 O'CLOCK

FULL LENGTH OF TANK

50 LADDER 1 STAINLESS STEEL LADDER WITH RAILING 2/3 THE WAY UP. LADDER BEGINS AT

REAR BUMPER UP TO 2 O'CLOCK CATWALK (SEE PICTURE B)
51 SAFTEY RAIL 1 FIXED STAINLESS STEEL HAND RAIL FULL LENGTH OF SIDE CATWALK
S U S P E N S I O N
52 SUSPENSION BOGIE 1 1/4" STAINLESS STEEL, TAPERED

SPREADS : 109"-50"-50"-44"-44"-44"-50" FRONT TO REAR

53 TYPE OF SUSPENSION 4 INTRAAX AAT25K, 25,000 LBS, 15" R.H. WITH SS HANGERS AND BALCK SOFT COAT

POSITIONS 4, 5, 6 AND 7 ARE FIXED
4 INTRAAX AAL25K, 25,000 LBS, 15" R.H. WITH SS HANGERS AND BALCK SOFT COAT
POSITIONS 1, 2, 3 AND 8 ARE LIFTABLE

54 AIR LIFT 4 LIFT KIT BOLT-ON GALVANIZED UBL-202, POSITIONS 1, 2, 3, AND 8 (FRONT TO REAR)

(NO WARRANTY IF ALL AXLES ARE LIFTED WHEN TANK IS FULL)

55 CONTROL SYSTEM HENDRICKSON HEIGHT CONTROL #AKH-235-3 WITH FOUR COMBINATION VALVES

AND ONE MANUAL DUMP VALVE # AK147-1 AND QUICK RELEASE
VALVE SEALCO 200001 AT EACH SUSPENSION TO SPEED UP THE DUMP
IN A STAINLESS STEEL BOX WITH SS LATCHES, ALL AIR LIFT ARE OPERATED INDEPENDENTLY
UNLOCK FUNCTION WHEN LIFT AXLE ARE RAISED
REGULATOR W/GAUGE FOR EACH LIFT AXLE TO CONTROL DOWN PRESSURE
NOTE: - ALL LIFT AXLES WIRED TO BLUE CENTER PIN OF THE ISO-3731
- PLUMB THE COMBINATION VALVES TO ENSURE AXLES ARE IN THE UP POSITION IF POWER IS LOST
AXLES ARE TO BE LOAD EQUALIZED
- ALL AIR LINES TO BE 1/2'' FOR BETTER AIR FLOW AND FASTER AXLE LIFT RESPONSE TIMES

56 AXLES 8 INCLUDED WITH INTRAAX, 25,000 LBS, 77.5" TRACK, WELD ON SPIDERS,
SAME INNER AND OUTER BEARINGS WITH ABS BLOCKS AND DUST SHIELDS
NOTE: AXLES PREPPED FOR HENDRICKSON TIREMAAX PRO INFLATION SYSTEM
57 OIL SEALS 16 INCLUDED WITH CONMET HUBS, 75W90 SYNTHETIC GEAR OIL

5-YEAR WARRANTY BY CONMET
BRAKES LINING: KNORR/BENDIX ADB22X

BRAKE PADS: BX276
BRAKE CHAMBER: BENDIX 18/24
CONTROL VALVE BENDIX SR5
ABS SYSTEM: 2 - ZF WABCO 4S/2M STANDARD (SIDE BY SIDE)
ABS SENSOR LOCATION: ON AXLES (FRONT TO REAR): 4-5-6-7
ABS INDICATOR LIGHT: DRIVER'S SIDE, AT STANDARD LOCATION AS PER REGULATION
AIR TANK(S): ALUMINUM WITH CABLE DRAINS

59 HUBS & DRUMS 16 HUB PILOTED, CONMET PRESET HUB, 10 STUDS

WITH ABS TONE RINGS

60 RIMS 32 ALUMINUM DISC WSTAR, HUB PILOTED 10 HOLES, 8.25’’ X 22.5’’ MIRROR POLISH
61 TIRES 32 TREMCAR OEM STD 11R22.5

WITH HENDRICKSON TIREMAAX PRO INFLATION SYSTEM SET AT 90 PSI

62 HUBDOMETER N/A
63 LANDING GEAR 1 JOST MAGNUM AX150T1-17 WITH SAND SHOE 10X10X3.88 CRANK ON DRIVER'S SIDE

STAINLESS STEEL FRAME

64 TIRE CARRIER N/A
65 KING PIN PLATE 1 TREMCAR PLATE, BOLTED, ADJUSTABLE @ 2"
67 BUMPER 1 STAINLESS STEEL WITH

- REAR UNDERRIDE GUARD ACCORDING TO CURRENT CMVSS/FMVSS, WITH PROTECTION
FOR VALVE EXTEND UNDERRIDE STRUCTURE TO JUST PAST REAR 6" DISCHARGE FITTING

70 FENDERS NOTE: HOSE TRAYS TO ACT AS FRONT AND REAR FENDERS (SEE ITEM #72)
A C C E S S O R I E S
71 SIDE CABINET 1 ALUMINUM NON-INSULATED 48"W X 36"H X 24"D TWO (2) DOOR CABINET INSTALLED
ON DRIVER'S SIDE REAR OF FRONT FENDER WITH SS EXTERNAL CAM & BAR LATCH AND HINGES
72 HOSE CARRIER 2 4'' HIGH x FULL WIDTH x FULL LENGTH OF TANK BOLTED HOSE TRAYS INSTALLED ON
EACH SIDE WITH 1" DRAINS AT REAR AND BUNGEE ATTACHMENTS. TRAYS TO ACT AS FENDERS
NOTE: INSTALL PLATE TO FILL THE GAP BETWEEN THE HOSE TRAYS & TANK
75 NOSE BOX 1 TREMCAR STYLE, ON FRONT CAP, LOWER QUADRANT DRIVER'S SIDE
C/W RECEPTACLE 7 WAYS SAE-J560 (ABS ON BLUE WIRE - CONSTANT POWER)
1 ADDITIONAL ISO-3731 PLUG FOR LIFT OPERATION. ALL LIFTS WIRED TOGETHER
ON BLUE WIRE OF THE ISO-3731
NOTE: AXLES TO BE IN THE UP POSITION IF POWER IS LOST

76 LIGHTS GROTE LED NEXGEN GROMMET MOUNT LIGHTS AND ULTRA-BLUE-SEAL
WIRING UNDER THE JACKETING WITH MAINTENANCE FREE 7-YEAR WARRANTY
SIDE CENTER MARKER LIGHTS WIRED TO FLASH WITH TURN SIGNALS
WITH (2) BACK-UP LIGHTS (1 PER SIDE)
3 4" REAR TOP ID LIGHTS IN AN ENCLOSED BOX
HIGH MOUNT STOP/TAIL LAMPS ON REAR HEAD AT 3 & 9 O'CLOCK POSITIONS (VERTICAL BOX)
2 LED WORK LIGHTS ON TOP OF REAR HEAD LIGHT BOXES POINTED DOWN TO DELIVERY AREA
WIRED TO A SWITCH IN THE DRIVERSIDE LIGHT BOX
10 AMBER OVAL CLEARANCE LIGHTS INSTALLED IN ENCLOSED BOXES (5 PER SIDE )
MOUNTED BENEATH HOSE TRAYS

LIGHT BOXES 2 STAINLESS STEEL BOX, BOLT ON (4 LIGHT MODEL)
2 STAINLESS STEEL, DOUBLE LIGHT, VERTICAL AT 3 & 9 O'CLOCK

78 REGISTRATION HOLDER 1 PS1, ON LANDING GEAR ON DRIVER'S SIDE
79 MUDFLAPS TREMCAR
81 PAINT FRAME N/A
RIMS N/A
82 CALIBRATION 1 PAPER CHART 1/4" INCREMENT
84 ADDITIONS 1) CONTINUOUS CONSPICUITY TAPE ON FENDERS, BUMPER AND REAR CAP
2) STANDARD THREE YEAR WARRANTY ON ALL TREMCAR PARTS AND WORKMANSHIP
86 SPECIAL NOTICE -THE PRICING PRESENTED IS IN GOOD FAITH AND VALID AT THE TIME OF SUBMISSION.
GIVEN CURRENT AND ONGOING GLOBAL POLITICAL CIRCUMSTANCES, TARIFFS
ARE IMPACTING THE GLOBAL METALS MARKET AND ARE GIVEN CONSIDERATION
IN OUR PROPOSAL FOR RAW MATERIALS AND COMPONENTS MANUFACTURED OF
STEEL, STAINLESS STEEL AND ALUMINUM. IN THE EVENT THAT THESE TARIFFS
AND MARKET PRICES FLUCTUATE BETWEEN TIME OF ORDER AND ENTERING
PRODUCTION (INCREASE OR DECREASE) TREMCAR WILL ADJUST THE PRICE
ACCORDINGLY. VENDOR COMPONENT INCREASES WILL BE EVALUATED AT TREMCAR'S
DISCRETION AND WILL ALSO BE PRESENTED 120 DAYS PRIOR TO PRODUCTION FOR
ACCEPTANCE OR REJECTION WITH MUTUAL CANCELLATION OF THE ORDER
-TREMCAR TRAILERS ARE SUBJECT TO A CONTINUOUS IMPROVEMENT PROGRAM. TREMCAR
RESERVES THE RIGHT TO CHANGE PRODUCT SPECIFICATIONS AT ANY TIME WITHOUT
NOTICE OR OBLIGATIONS
