USED LOOPCO 160

Manufacturer: Loopco
Machine Type: Slitting Line
Slitter Model: 160
Maximum Material Width: 60"
Material Thickness Range: 0.020" - 0.188"
Coil Weight Capacity: 40,000 Lbs.
Slitter Arbor Diameter: 7-1/2"
Material Shear Strength: 45,000 - 60,000 PSI
Slitting Configuration: Pull-Through With Optional Helper Drive
Line Direction: Left to Right
Line Speed:
Low Speed Range: 250 FPM at 24" Coil Diameter, Increasing to Approximately 750 FPM at 72" O.D.
High Speed Range: Up to 1,500 FPM at 72" O.D.
Slitting Capacity - Low Speed Range (250 FPM):
45,000 PSI Material:
8 Cuts at 0.188"
9 Cuts at 0.179"
10 Cuts at 0.164"
12 Cuts at 0.135"
14 Cuts at 0.120"
16 Cuts at 0.105"
20 Cuts at 0.090"
60,000 PSI Material:
6 Cuts at 0.188"
7 Cuts at 0.179"
8 Cuts at 0.164"
9 Cuts at 0.135"
11 Cuts at 0.120"
12 Cuts at 0.105"
15 Cuts at 0.090"
18 Cuts at 0.075"
20 Cuts at 0.067"
Slitting Capacity - High Speed Range:
45,000 PSI Material:
7 Cuts at 0.120"
8 Cuts at 0.105"
11 Cuts at 0.090"
16 Cuts at 0.075"
20 Cuts at 0.067"
Lighter Gauges Down to 0.020"
60,000 PSI Material:
4 Cuts at 0.120"
6 Cuts at 0.105"
8 Cuts at 0.090"
12 Cuts at 0.075"
15 Cuts at 0.067"
19 Cuts at 0.060"
20 Cuts at 0.048"
Lighter Gauges Down to 0.020"

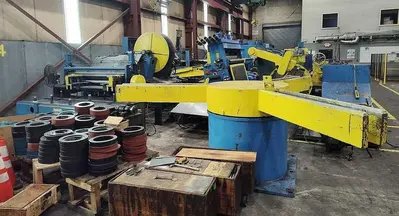

Entry Turnstile:
(3) C-Hook Type Arms
Powered Rotation
Entry Coil Car:
Above Floor Type
Self-Contained Hydraulics
Hand Pendant Control

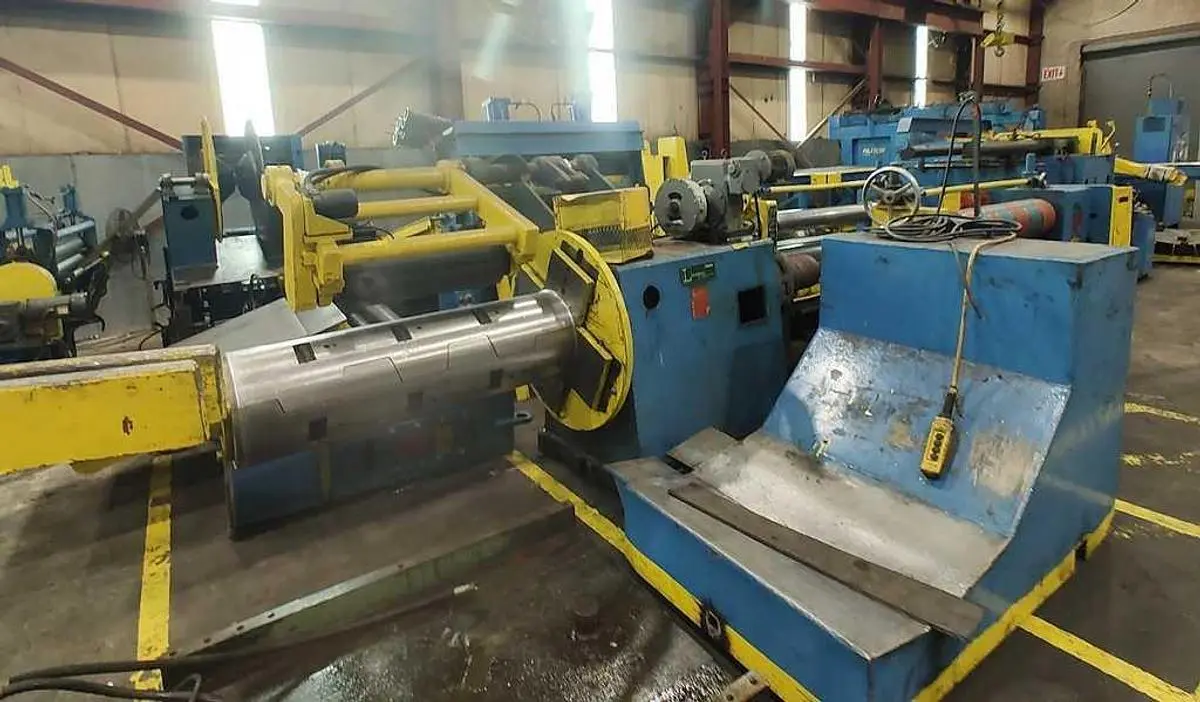

Uncoiler:
Pumpkin Tooth Mandrel
Hydraulic Expansion
Threading Drive
Sliding Base
Wichita Brake
Powered Holddown Arm
Peeler Table

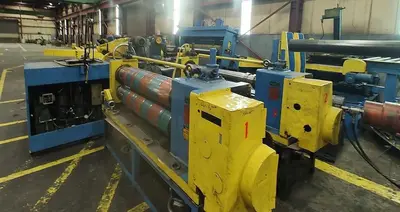

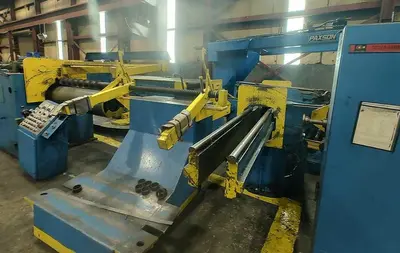

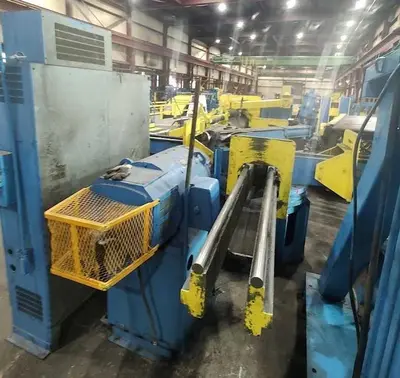

Slitter Head:
Entry Pinch Rolls
Entry Side Guides
(2) Slitter Heads
7-1/2" Diameter Arbors
Parallel Arbor Adjustment
Threading Drive
DC Motor Drive

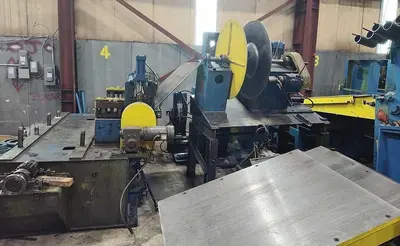

Scrap Winder:
Hydraulic Motor Driven
2-Speed Transmission
Oscillating Wind
Powered Scrap Ball Dump

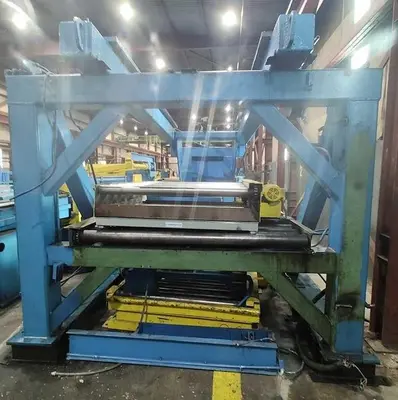

Tension Stand:
Attached Pit Table
Entry Separator Tooling Bar
Pad-Type Tension Applied by (2) Hydraulic Cylinders

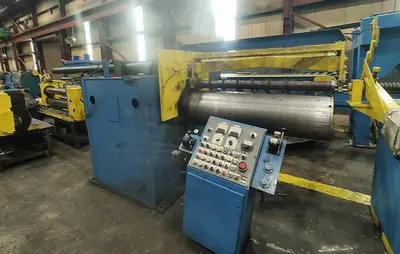

Recoiler:
Powered Clamp and Expansion
Hydraulic Push-Off
Overarm Separator
DC Drive Motor
Exit Coil Car:
Coil Stabilizing Arms
Self-Contained Hydraulics
Exit Turnstile:
(4) C-Hook Type Arms
Hydraulic Push-Off
Powered Rotation
Slitter Tooling
Main Operator Control Panel

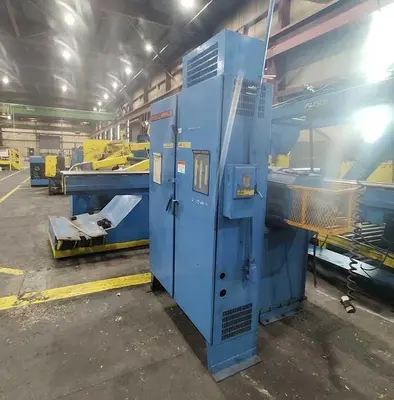

Main Electrical Panel
