USED 2023 HOMAG CENTATEQ N-300/480 V7 PRO
Overview

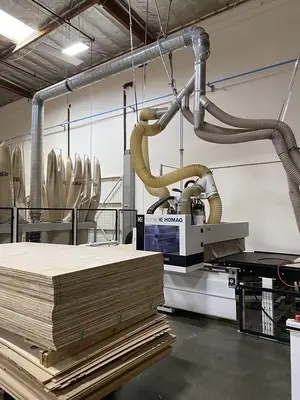

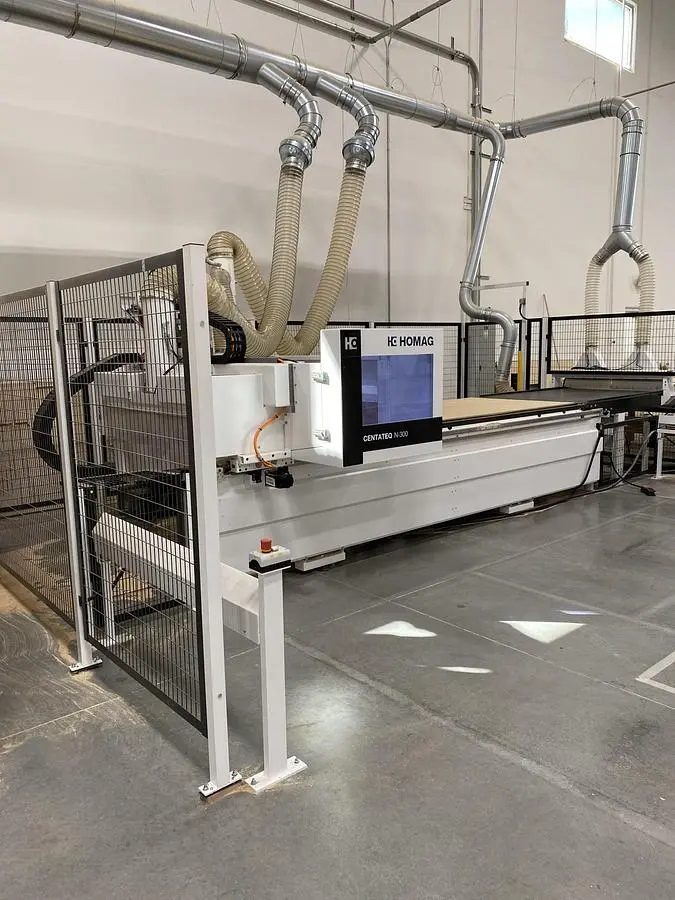

The 2023 Homag Centateq N-300/480 V7 Pro is a nested-based CNC router built for cabinet, casework, furniture, and millwork production. Its 4' × 8' MATRIX phenolic vacuum table and rigid bridge-gantry design let it size, shape, groove, and drill multiple parts from a single sheet in one cycle. That cuts handling time, material waste, and labor per part.
The machine pairs a 24,000 RPM HSK-F63 router spindle with a 7-spindle vertical drill block and an onboard automatic tool changer, so routing and line boring happen without stopping for manual tool swaps. It runs on HOMAG powerControl with the powerTouch interface and is programmed in woodWOP, the industry-standard software that many operators and CAD/CAM packages already support.
The Pro configuration, built for the North American market, adds automatic lubrication to reduce routine maintenance, an enhanced cabinet air-conditioning system for longer run times and component life, and vertical safety light curtains that protect operators while keeping the machine easy to load.
At just three years old, this N-300 is a strong fit for a shop moving from a panel saw and boring machine to nested production, or for an established operation adding a second router for capacity. Contact South Texas Machinery Group for hours, tooling, and inspection details.
Specs
Machine type: A nested-based “bridge gantry” CNC router. The N-300 platform uses a flat-table design with a grooved phenolic MATRIX vacuum table.
Main spindle: HSK-F63 electrospindle, 24,000 RPM max. A 480 V7 listing shows 12 HP (9 kW), and other N-300 builds came with 16 HP.
Table / working field: : 4' × 8' table. Comparable 480 units list 99.2" X, 49.2" Y, 9.6" Z.
Spindle speed range: Variable from 1,250 to 24,000 RPM, with right- or left-hand rotation.
Drill block (V7): 7 independent vertical spindles. On the N-300 these are 4 in the X-axis and 3 in the Y-axis, with variable speeds of 1,500–7,500 RPM.
Tool changer: An onboard automatic disc-type tool changer. Comparable 4' × 8' units have 8 ATC positions.
Axis travel speed: Up to 100 m/min (3,937 in/min).

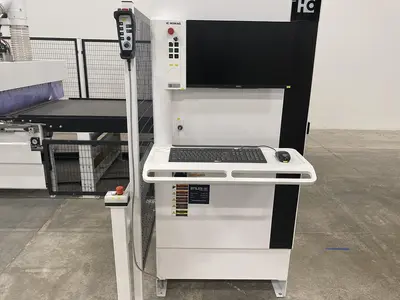

Control and software: HOMAG powerControl with powerTouch, programmed in woodWOP.
