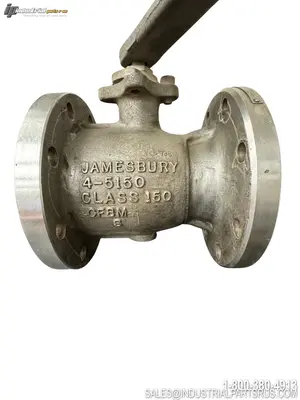

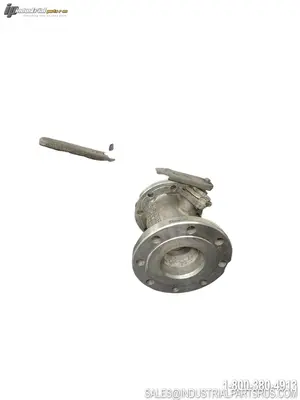

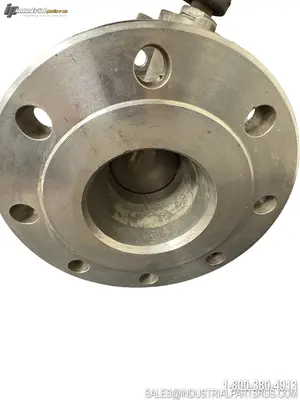

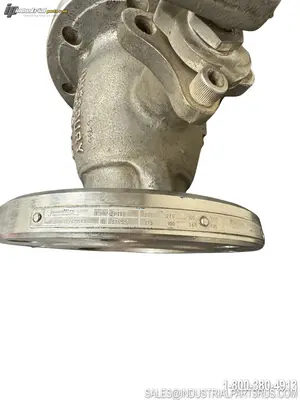

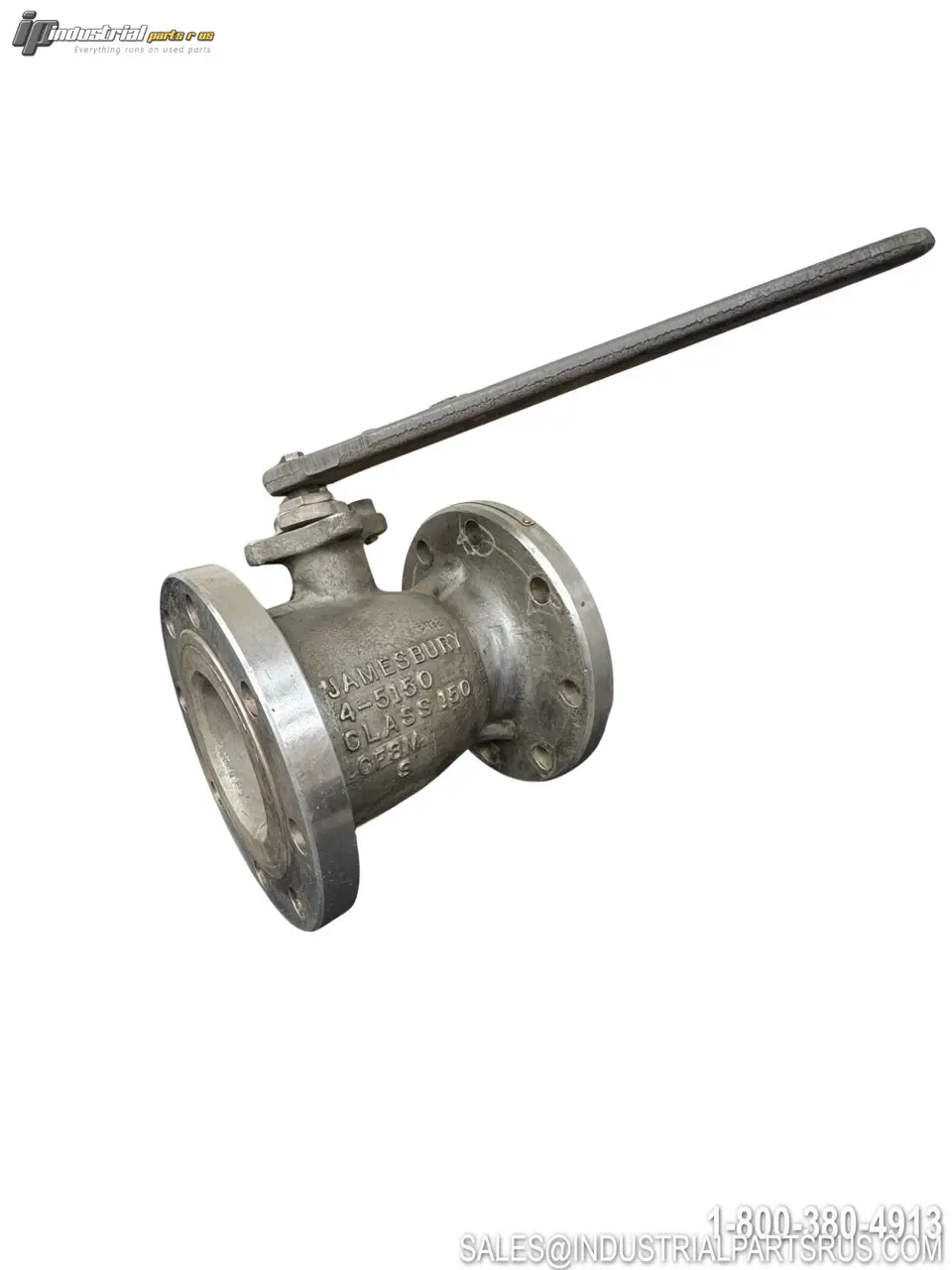

USED JAMESBURY 4-5150

The Jamesbury 4-5150 is a 4-inch (DN 100), ANSI Class 150, standard bore flanged ball valve from Jamesbury's Series 5000 product family. It features a patented flexible-lip seat design that provides positive bi-directional shut-off, and is constructed with a 316 Stainless Steel (ASTM A351 Type CF8M) body and ball. The valve is commonly cataloged under the Model B designation and is widely used in chemical, petrochemical, and industrial pipeline applications requiring reliable isolation and throttling performance.
Specification
Value
Brand
Jamesbury
Model / Part Number
4-5150
Manufacturer
Jamesbury (Valmet / Neles)
Product Type
Ball Valve
Series
5000 (Type 5150)
Model
Model B
Valve Size
4 inch (DN 100)
Bore Type
Standard Bore (Reduced Port)
Pressure Class
ANSI Class 150
Connection Type
Flanged, Raised Face (RF)
Valve Ways & Position
2-Way
Operation
Manual (lever) or Actuated (as configured)
Body Material
316 Stainless Steel (ASTM A351 Type CF8M)
Ball Material
316 Stainless Steel
Stem Material
316 Stainless Steel / 17-4PH Stainless Steel (as specified)
Seat Material
PTFE (Polytetrafluoroethylene)
Body Seal
Spiral-Wound PTFE / 316 Stainless Steel
Flow Coefficient (Cv)
550 (Standard Bore)
Face-to-Face Dimension (A)
9.00 in
End-to-End (C)
9.00 in
Bolt Circle Diameter (D)
7.50 in
Port Diameter (E)
3.00 in
Number of Bolt Holes
8
Approximate Weight
63 lb
Maximum Pressure Rating (Class 150)
275 psig (1900 kPa) at ambient temp
Flow Direction
Bi-Directional
Design Standard
ANSI B16.34 / API 607 Fire-Tite
ISO Bonnet Pattern
F10
We warranty all items for 30 days from date of purchase.
