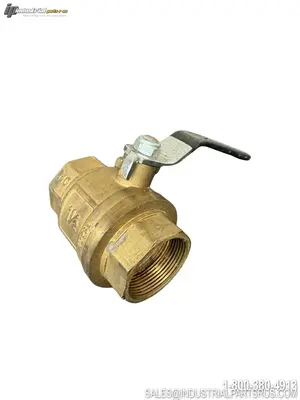

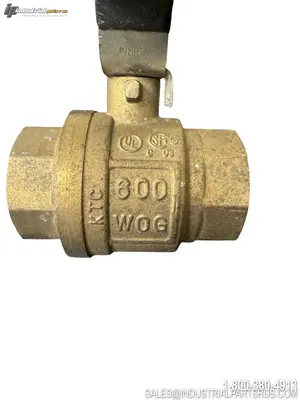

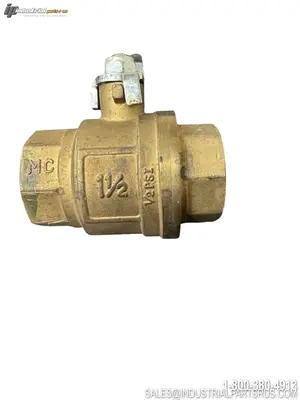

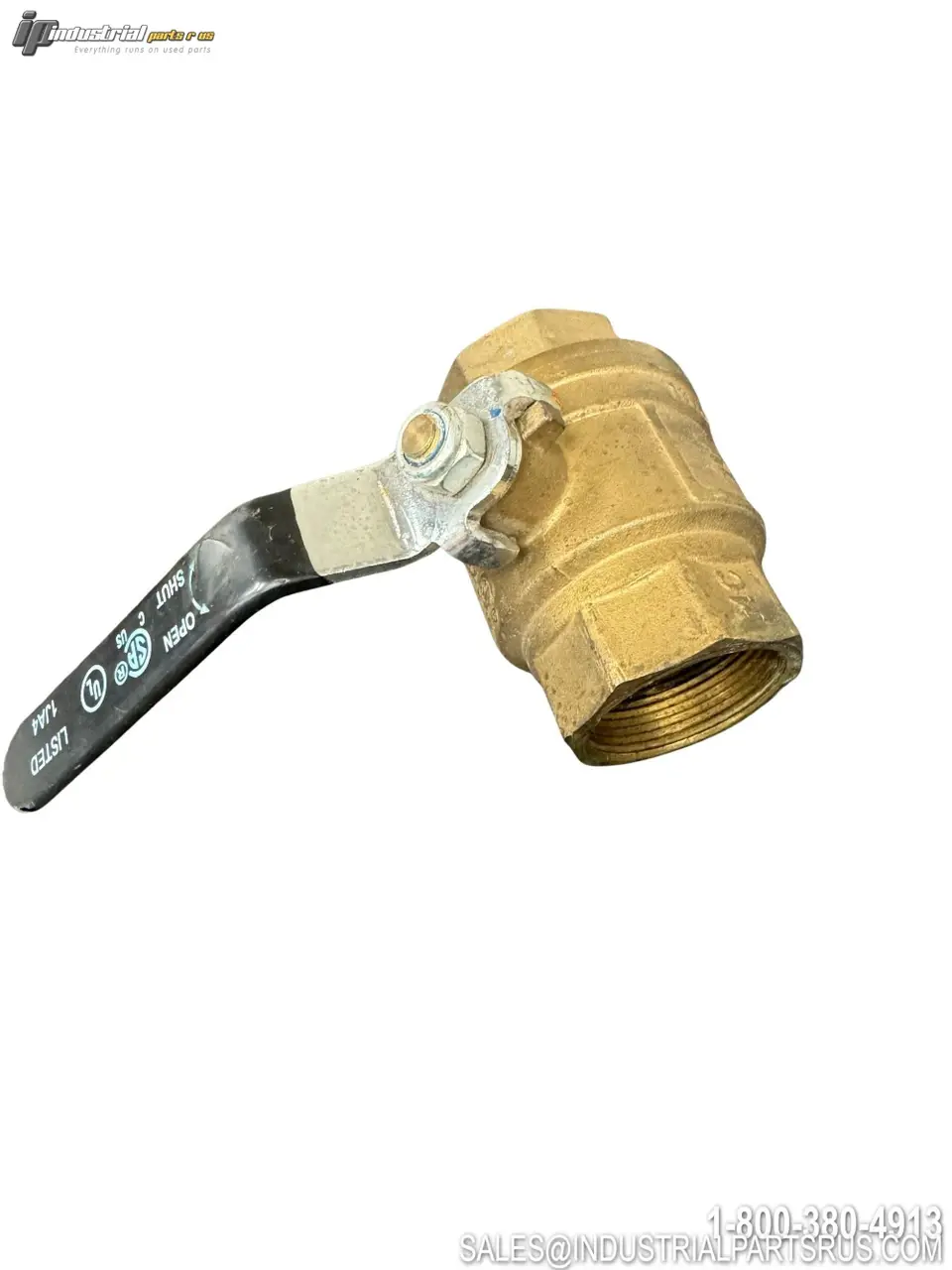

USED KTC 600 WOG

The KTC 600 WOG is a full-port, two-piece forged brass ball valve rated at 600 PSI WOG (Water, Oil, Gas) and 150 PSI saturated steam working pressure (SWP). It features a blow-out proof stem, chrome-plated brass ball, PTFE seats and packing, and a lever-operated quarter-turn design for fast open/close operation. Available in sizes from 1/4" through 2"+, these valves conform to MSS SP-110 and are suitable for water, oil, gas, compressed air, and other compatible media.
Specification
Value
Brand
KTC
Model / Part Number
600 WOG
Product Type
Ball Valve
Pressure Rating (WOG)
600 PSI
Steam Working Pressure (SWP)
150 PSI
Body Material
Forged Brass
Ball Material
Chrome-Plated Brass
Seat / Packing Material
PTFE
Stem Design
Blow-Out Proof Brass Stem
Body Style
2-Piece
Port Type
Full Port
Valve Ways & Position
2-Way
Connection Type
FNPT x FNPT (Female NPT)
Thread Standard
ANSI B1.20.1
Valve Operation
Manual – 1/4-Turn Lever Handle
Handle Material
Steel with Vinyl Grip
Technical Standard
MSS SP-110
Suitable Media
Water, Oil, Gas, Compressed Air
Available Sizes
1/4" – 2" (and larger)
We warranty all items for 30 days from date of purchase.
