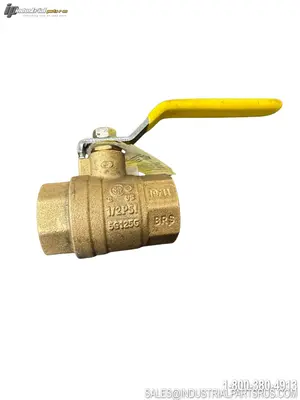

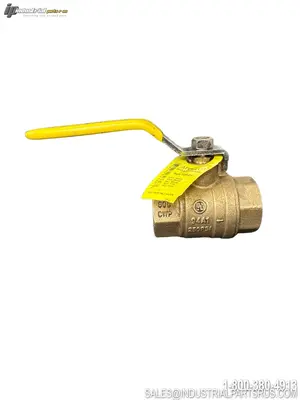

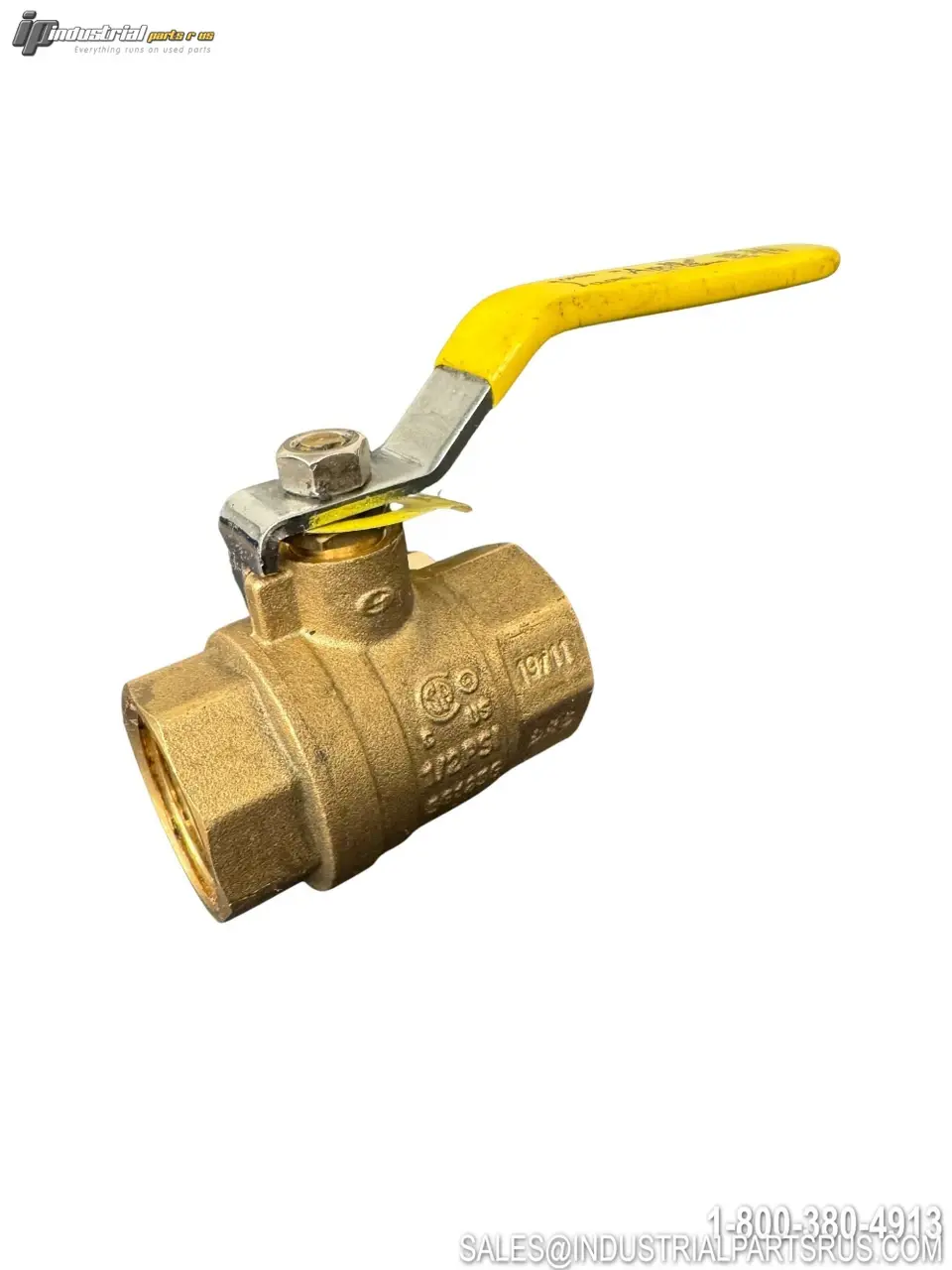

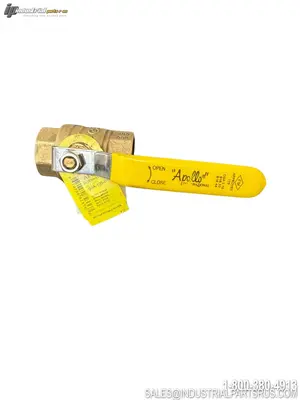

USED APOLLO 94A-105-01

The Apollo 94A-105-01 is a 2-piece, full port forged brass ball valve in the 94A Series, featuring 1-inch Female NPT (FNPT) connections on both ends. It is rated for 600 PSI Cold Working Pressure (CWP) and a temperature range of 0°F to 400°F, making it suitable for HVAC systems, fuel gas applications, and fire protection trim and drain installations. The valve includes a blowout-proof stem, adjustable stem packing nut, PTFE seats and packing, EPDM O-ring seal, and a plated steel lever handle with PVC grip, and is 100% factory tested.
Specification
Value
Brand
Apollo
Model / Part Number
94A-105-01
Manufacturer
Aalberts Integrated Piping Systems (Apollo Valves / Apollo Conbraco)
Series
94A
Valve Type
Ball Valve
Construction
2-Piece
Port Type
Full Port
Valve Ways & Position
2-Way
Operation
Manual
Nominal Size
1 in
Connection Type
FNPT x FNPT (Female NPT Both Ends)
Opening Size
0.95 in
Pressure Rating (CWP)
600 PSI CWP (Non-Shock)
Steam Pressure Rating (WSP)
150 PSI WSP
Temperature Rating
0°F to 400°F
Body Material
Forged Brass (Cu >57%)
Ball Material
Chrome Plated Brass
Stem Material
Chrome Plated Brass
Seat Material
PTFE
Seal Material
EPDM
Packing Material
PTFE
Gland Nut Material
Brass
Retainer Material
Forged Brass (Cu >57%)
Handle / Actuator Type
Lever Handle (Plated Steel with PVC Grip)
Inlet to Outlet Length
2.76 in
Top to Inlet Center
2.58 in
Overall Height (Dimension D)
4.528 in
Media
Gas, Air, HVAC, Fuel Gases, Fire Protection (Non-Potable)
Body Style
Inline (Straight)
Silicone Free
Yes
Low Lead Compliant
Yes
Weight
1.1 lbs
Material Standards
ANSI Z21.15, ASME B16.44, ASME B16.33, MSS SP-110, ISO 9001
Agency Approvals
UL (YQNZ/YRBX/YRPV/YSDT/MHKZ), UL 258, FM 1140, CSA (File No. 226234)
UNSPSC
40141607
We warranty all items for 30 days from date of purchase.
