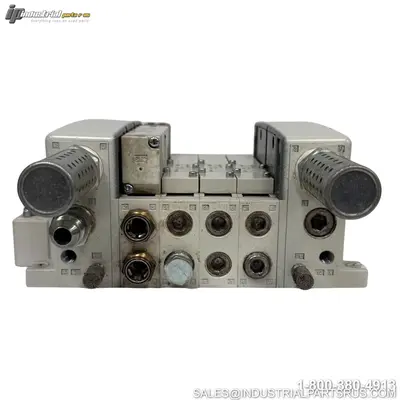

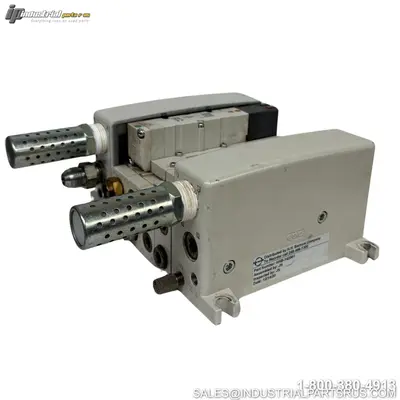

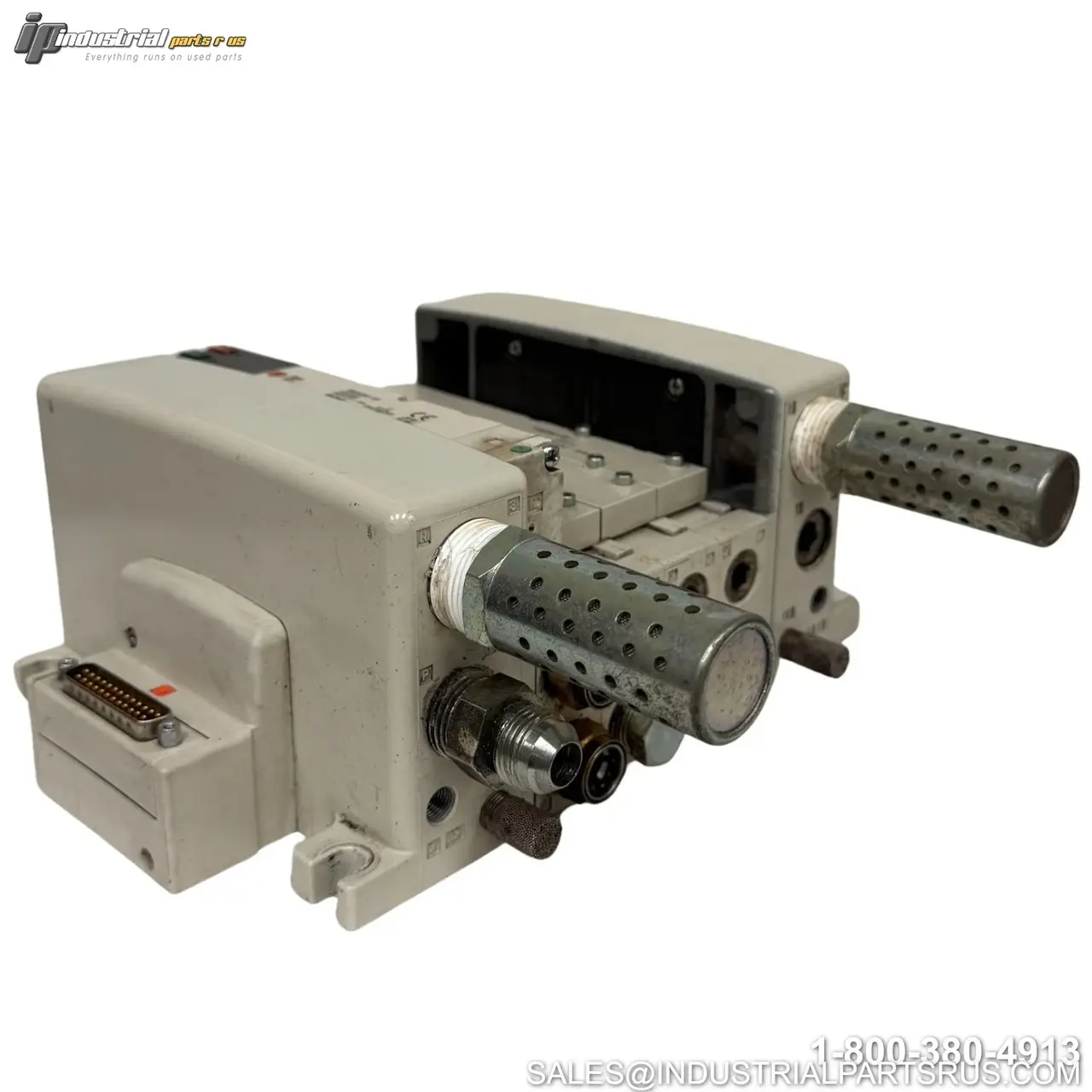

USED SMC HHB-142561

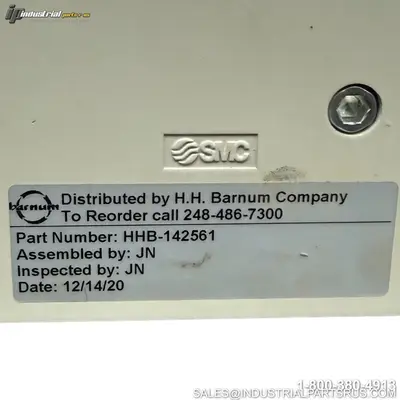

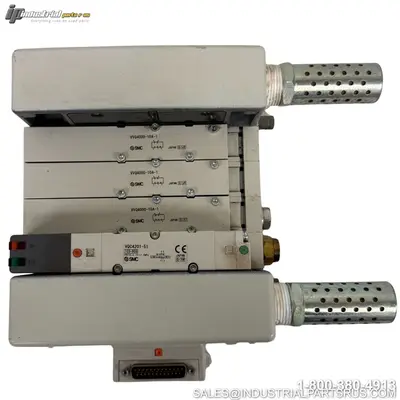

The SMC HHB-142561 is a custom pneumatic assembly engineered and manufactured by H.H. Barnum Company, one of SMC's largest and most recognized authorized distributors in North America. HHB-prefixed part numbers represent customer-specific assemblies — built to unique specifications using SMC pneumatic components such as solenoid valves, manifold blocks, valve subbases, FRL units, and related pneumatics. This unit features solenoid operation and a 5/2-way valve configuration. Because each HHB assembly is unique to its originating customer's design requirements, additional specifications (number of stations, port size, coil voltage, etc.) must be confirmed by physically inspecting the unit or contacting H.H. Barnum directly with the assembly number.Included components: SMC VQC4201-51(1), SMC VVQ4000-10-1(3)
Specification
Value
Brand
SMC / H.H. Barnum
Model / Part Number
HHB-142561
Assembly Type
Custom SMC Pneumatic Assembly
Manufacturer
H.H. Barnum Company (SMC Authorized Distributor)
Component Brand
SMC Corporation of America
Assembly Category
Pneumatic Valve / Manifold Assembly
Part Number Format
HHB = H.H. Barnum custom assembly number (customer-unique)
Operation
Solenoid
Valve Ways & Position
5/2-Way
Valve Series (Typical)
See unit label — commonly SY, VQC, or similar SMC series
Coil Voltage
See unit label — verify before installation
Number of Stations
See unit label — varies by custom configuration
Port Size
See unit label — varies by custom configuration
Max Operating Pressure
See unit label — typical SMC range up to 0.7–1.0 MPa
Media
Compressed air (pneumatic)
Electrical Connection
See unit label — varies by valve sub-model
Specifications Source
Inspect unit label or contact H.H. Barnum with assembly number
We warranty all items for 30 days from date of purchase.
