Used

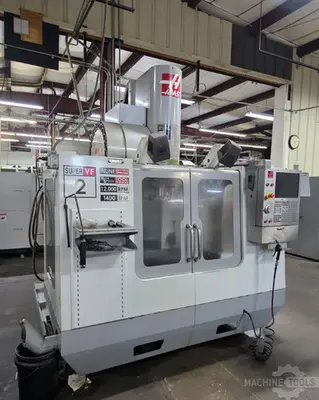

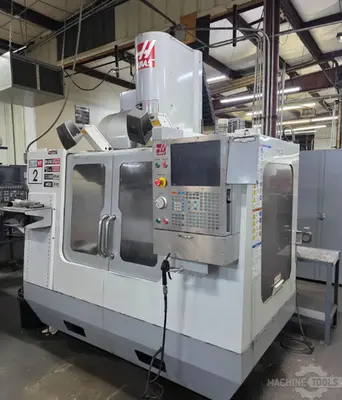

USED 2009 HAAS VF-2SS

Florida, United States
Overview
Specs
X
30"
762 mm
Y
16"
406.4 mm
Z
20"
508 mm
Power
30 hp
22.4 kW
RPM
12,000 RPM
12,000 RPM
# ATC
24
24
Taper
CT or BT 40
CT or BT 40
Table-W
14"
355.6 mm
Table-L
36"
914.4 mm

30” X 16” X 20” Vertical Machining Center with Haas CNC Control.GENERAL SPECIFICATIONS X - Axis:                        30” Y - Axis:                        16”Z - Axis:                        20”Table Length:                        36”Table Width:                        14”Max. Weight on Table:                1,500 LbsSpindle Speed:                    12,000 RPMMax. Rating:                        30 HPMax. Torque:                        75 ft-Lb @ 2,100 RPM FeedratesY - Axis Rapids:                    1,400 IPMZ - Axis Rapids:                    1,400 IPMTool Capacity:                    24+1Type:                            CT40 (BT Option)Power Requirements:                195 - 260 VAC 3-PhaseApprox. Weight:                    8,000 LbsINCLUDES: Haas CNC Control.
