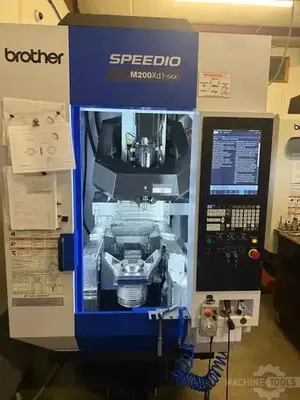

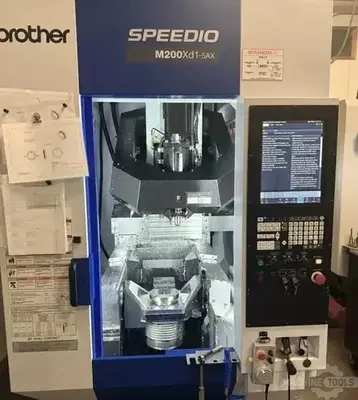

USED 2025 BROTHER SPEEDIO M200XD1

Request a Quote
Add to Cart
X-Axis Travel: 7.9"
Y-Axis Travel: 17.3"
Z-Axis Travel: 12"
Tool Magazine Capacity: 22 or 28 tools
Spindle Speed: 16,000 RPM
Spindle Taper: BT30 Big Plus
XYZ Axis Travels: 7.9¨ x 17.3¨ x 12.0¨
Spindle Motor: 9.9 HP
Number of Axis: 5
A - Axis Travels: -30° To +120°
C-Axis: 360°
Rapid Traverse Rate: 1,969 Inches Per Minute (IPM)
Cutting Feedrates: 0.04 To 1,181 Inches Per Minute (IPM)
Tool Shank Size: MAS-BT30
Max Tool Length: 9.8 Inches
Max Tool Diameter: 3.1 Inches
Max Tool Weight: 6.6 lbs
Tool to Tool: 0.8 Seconds
Chip to Chip: 1.4 Seconds
Max Table Load: 88.2 lbs
Control: Brother CNC-D00 Control With Built-In PLC

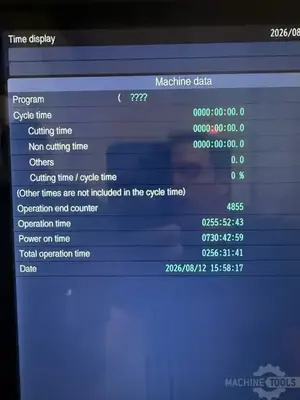

Hours: 256 Hours

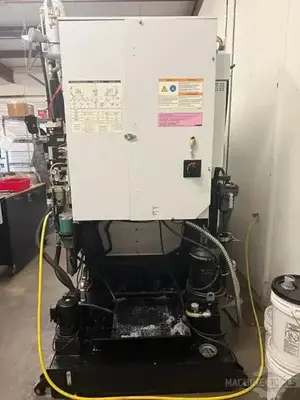

Coolant Tank: 150L Coolant Tank With Chip Shower
150L Coolant Tank With Chip Shower: 16
000 RPM BBT CTSI Spindle (Coolant Through Spindle Interface - No Pump): 2
000 RPM Turning Spindle With 5.5¨ Diameter Table: 28 Tool High-Speed ATC
9.9/6.6 HP Main Spindle Motor - IPM Motor Type: AxiSet Checkup Kit
BIG PLUS BT-30 Taper: Blum Z-Nano W/ Chip Protection
Brother CNC-D00 Control With Built-In PLC: Double A-Axis Clamp Complete Covers With Ceiling Cover And Safety Door Interlock
Feature Coordinates Settings: Memory Expansion (3Gbytes)

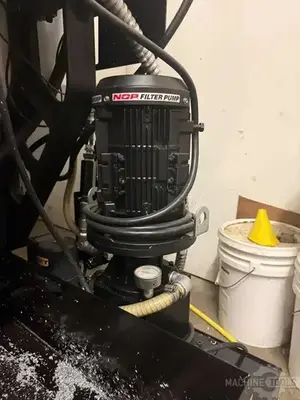

NOP 1000 PSI Brother CTS Pump With Bag Filter Kit: Renishaw OMP400 Spindle Probe
Submicron Command: Tool Center Point Control (Look Ahead 1
000 Blocks): Work Light Kit (2-Lights) W/Brackets
Air Assisted Tool Wash: Simultaneous 5-Axis Control
Manual Pulse Generator: Spindle Override
Automatic Grease Lubrication System
