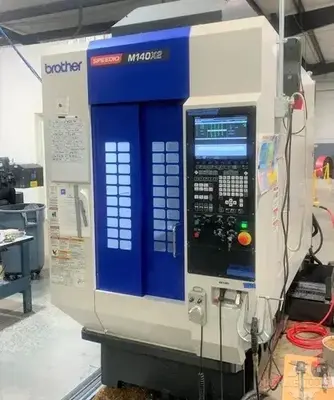

USED 2019 BROTHER SPEEDIO M140X2
Overview
CNC Vertical Machining Center
Specs
Request a Quote
Add to Cart
X-Axis Travel: 7.9"
Y-Axis Travel: 17"
Z-Axis Travel: 12"
Tool Magazine Capacity: 22 ATC
Spindle Speed: 16,000 RPM
Spindle Taper: BT 30
Chip Removal: Mayfran Chip Conveyor
Number of Axis: 5
Spindle Motor: 5.5 HP

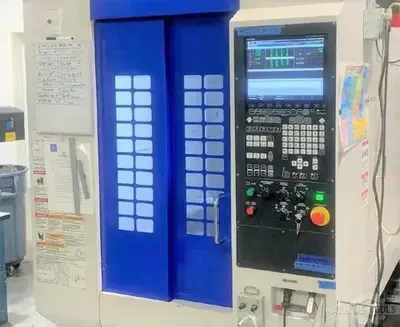

Control: CNC (Brother C00 CNC Control)
A - Axis Travels: 120 - -30
C - Axis Travels: 360
Max Load Capacity: 24 Lbs
Rapid Traverse Rate: 1969 IPM
Cutting Feedrates: 1181 IPM
Tool Shank Size: MAS-BT30
Max Tool Length: 7.9"
Max Tool Diameter: 3.1"
Max Tool Weight: 6.6 lbs.
Tool to Tool Change Time: 0.9 Seconds
Approx Machine Weight: 5,979 Lbs

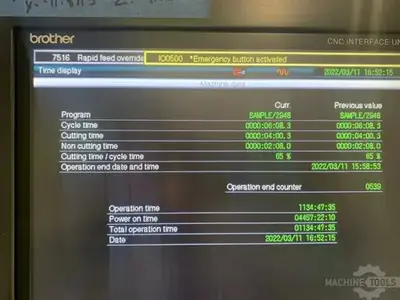

Hours: Operation Time: 1247 Hours, Power On Time: 5026 Hours
Coolant: Coolant Through Spindle
Coolant Tank: 150L Coolant Tank
Brother C00 CNC Control With Built In Interface: Chip Power System
Complete Covers Witih Ceiling Cover And Safety Door Interlock: Coolant Through Spindle Interface (No Pump)
NK Brand Turning Tool Holder: 150L Coolant Tank

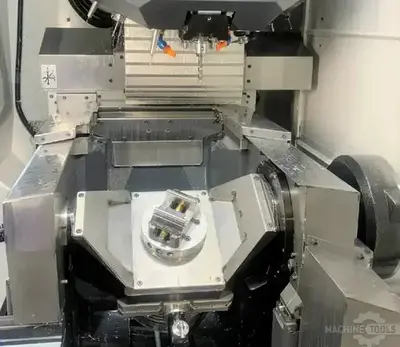

Air Assisted Tool Wash and Back Washing System: 5th Axis Trunnion Table
Automatic Grease Lubrication System
