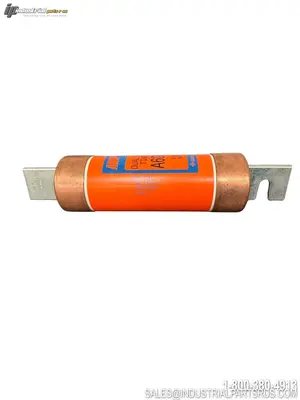

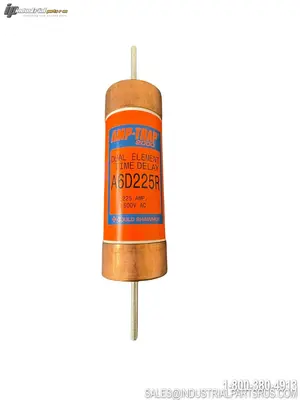

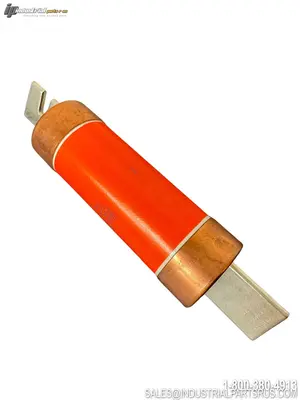

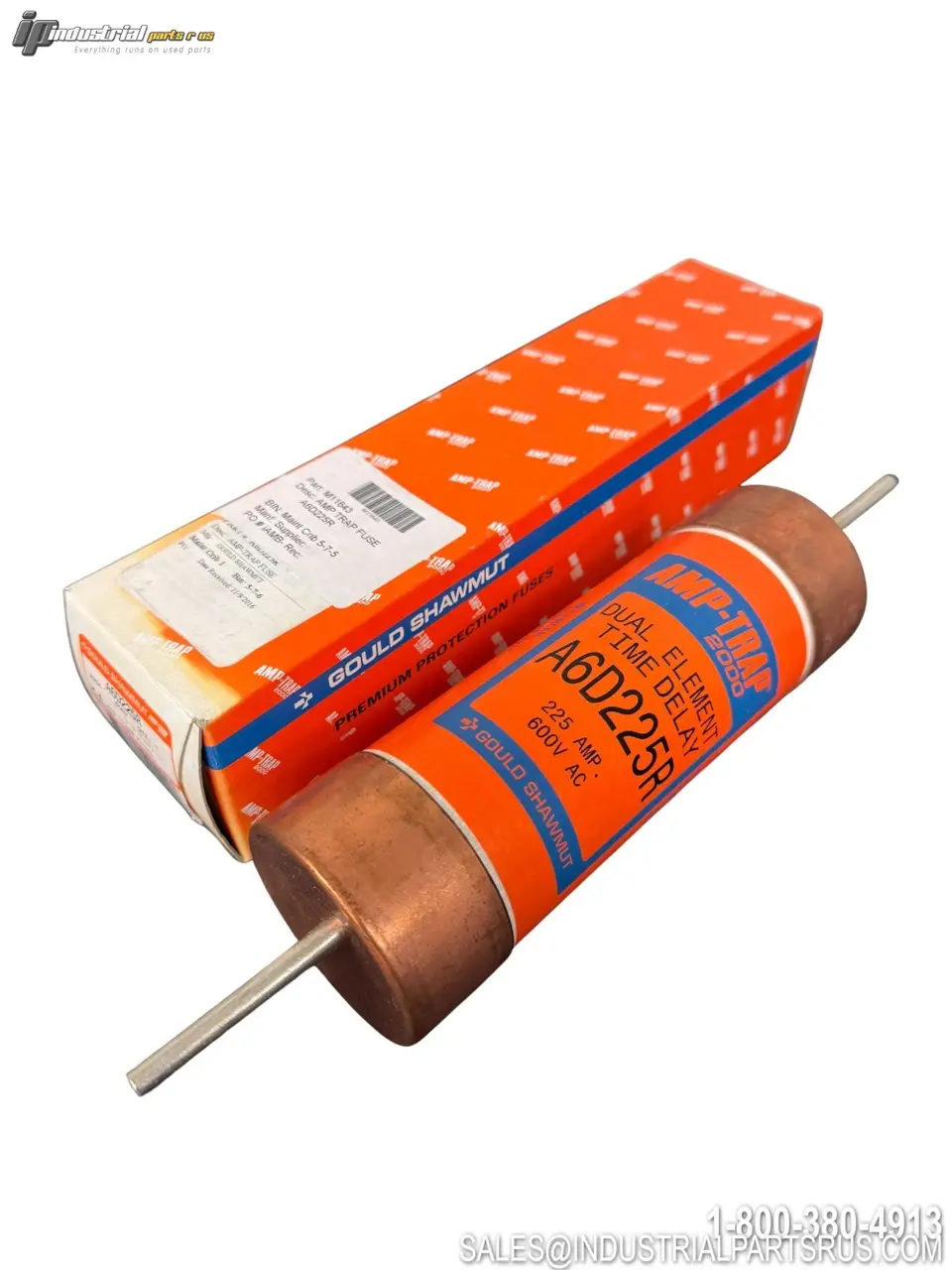

NEW GOULD SHAWMUT A6D225R

The Gould Shawmut A6D225R is a 225-ampere, 600V AC/DC, Class RK1 time-delay current-limiting fuse from the Amp-Trap 2000® series. It features a SmartSpot® visual open-fuse indicator and a rejection-style blade terminal design that prevents installation errors. This fuse provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits serving motor and non-motor loads, offering time-delay characteristics for motor inrush currents while delivering fast-acting short circuit protection. Gould Shawmut is now Mersen (formerly Ferraz Shawmut).
Specification
Value
Brand
Gould Shawmut (Mersen / Ferraz Shawmut)
Model / Part Number
A6D225R
Series
A6D-R (Amp-Trap 2000®)
Ampere Rating
225 A
Voltage Rating (AC)
600 VAC
Voltage Rating (DC)
600 VDC
Fuse Class
Class RK1
Speed / Characteristic
Time Delay / Current Limiting
AC Interrupting Rating
200,000 AIC (200 kA)
DC Interrupting Rating
100,000 AIC (100 kA)
Terminal / Connection Type
Blade
Terminal Material
Tin-Plated Copper
Mounting Type
Clip
Body / Insulating Material
Fiberglass / PolyTube
Indication System
Yes — SmartSpot® Visual Open Fuse Indicator
Diameter
2.56 in (2-9/16") / 65.02 mm
Overall Length
11.63 in (11-5/8") / 295.4 mm
Blade / Ferrule Length
1.875 in
Blade Height
1.625 in
Blade Width
0.250 in
Product Weight
3.22 lb (1.46 kg)
Frequency
50/60 Hz
UL Approval
UL Listed — Standard 248-12, File E2137
CSA Approval
CSA Certified — Standard C22.2 No. 248.12
Color
Orange
Sell Pack Quantity
1 EA
Bussmann Equivalent
LPS-RK-SP (225A)
We warranty all items for 30 days from date of purchase.
