USED MCGILL CCYR 4 S

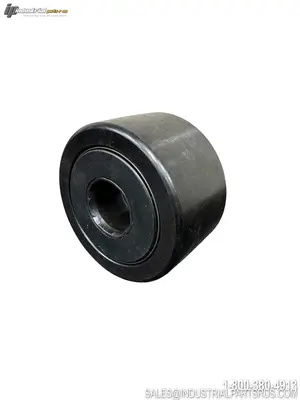

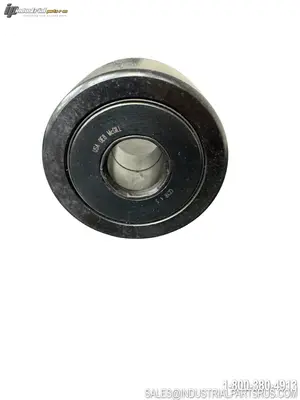

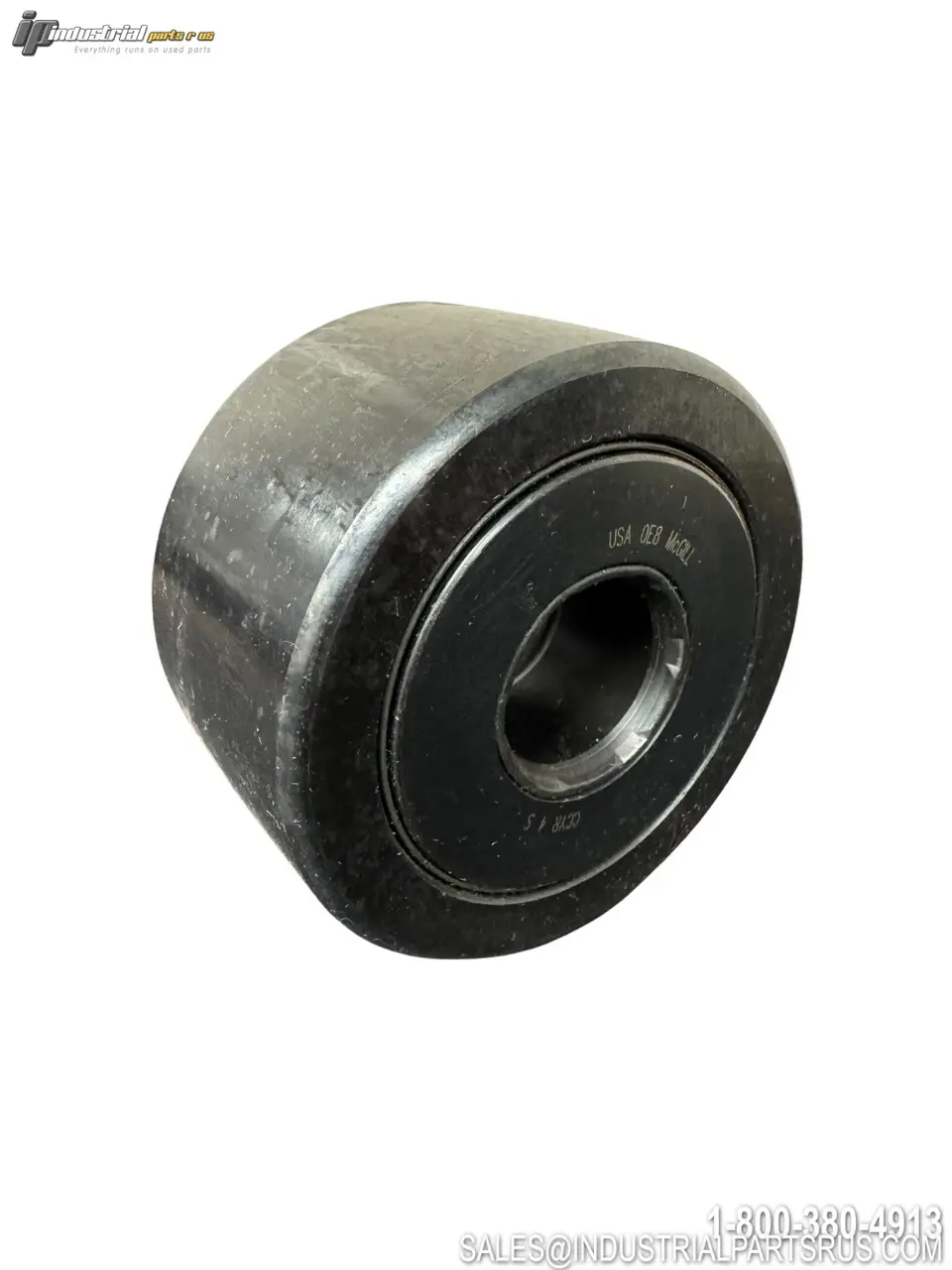

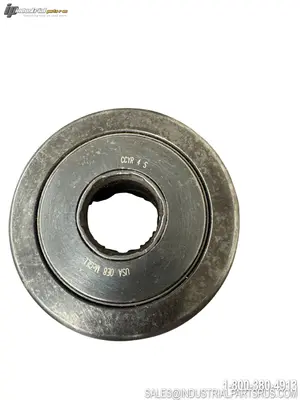

The McGill CCYR 4 S is a CAMROL® crowned yoke-type cam follower bearing featuring full complement needle roller construction for high radial load capacity. Built from 52100 bearing steel with a black oxide finish, its yoke-style mounting allows flush installation between supports for cam tracks, rail-following, and conveyor head pulleys. Suitable applications include follower arms, guide rollers, table support bearings, and other uses involving linear movement or the translation of rotary motion to axial motion.
Specification
Value
Brand
McGill
Model / Part Number
CCYR 4 S
Product Type
Cam Follower – Yoke Type
Platform / Series
CAMROL® – Inch CAMROL
Stud Type
Yoke
Roller Diameter
4 in (101.6 mm)
Bore Diameter
1.25 in (31.75 mm)
Roller Width
2.25 in (57.15 mm)
Overall Width
2.3125 in (58.74 mm)
Roller Shape
Crowned
Face Design
Screwdriver Slot
O.D. Configuration
Cylindrical Housing / Crowned Roller
Rolling Element
Needle Roller – Full Complement
Seal Type
LUBRI-DISC® – Contact Seal Both Sides (2 Seals)
Dynamic Load Rating
29,985 lb
Static Load Rating
62,200 lb (89,540 lb per some sources)
Limiting Speed
700 rpm
Operating Temperature Range
-20 to 250 °F
Material
Bearing Steel (52100 Chrome Steel), Black Oxide Finish
Endplate Diameter
2.797 in
Minimum Boss Diameter
2.281 in
Oil Hole Diameter
0.125 in
Relubricatable
Yes
Tolerance Class
P0
Roller Material
Chrome Steel
Weight
6.73 lb (3.06 kg)
Interchange – JTEKT/Koyo
YCRSC-64
Interchange – RBC
CY128L / CRBY4
We warranty all items for 30 days from date of purchase.
