USED SICK C4P-SA12031A00

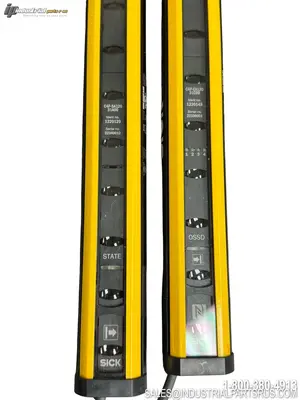

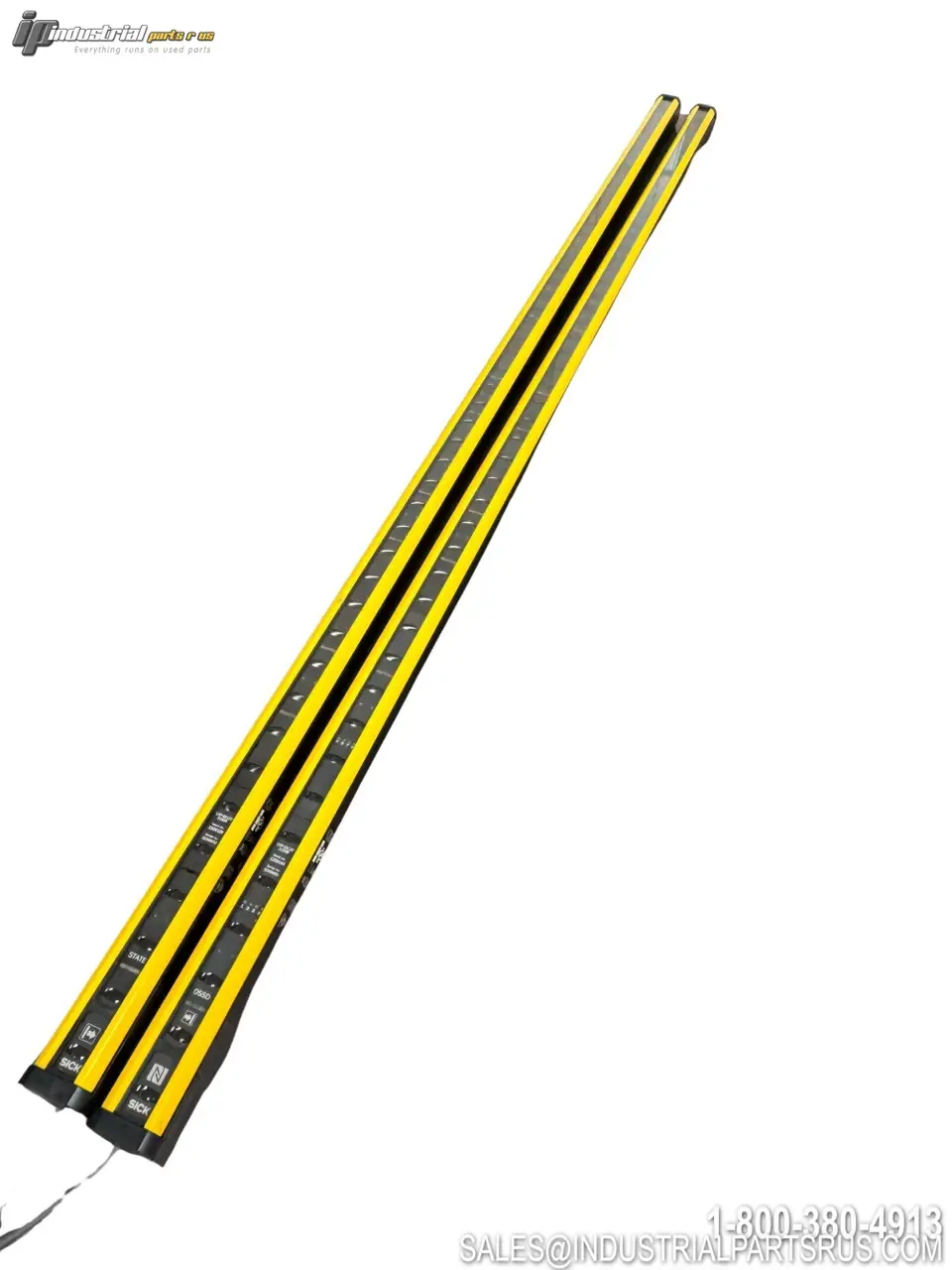

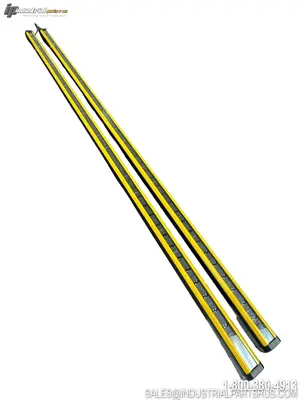

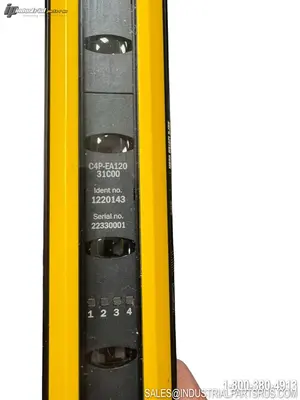

This listing includes the COMPLETE SET with both emitter and receiver units.
The Sick C4P-SA12031A00 is a deTec4 series safety light curtain sender designed for machine guarding in normal industrial environments. It delivers Type 4 (IEC 61496-1) safety performance with a 30 mm resolution (hand protection), 1,200 mm protective field height, and a 30-meter scanning range. The unit features optical synchronization, an integrated laser alignment aid, beam coding, cascading capability, and no blind zones, making it suitable for demanding safety applications requiring SIL 3 and Performance Level e.
Specification
Value
Brand
Sick

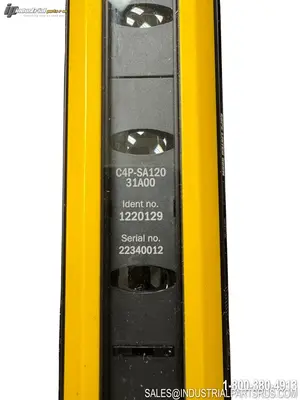

Model / Part Number
C4P-SA12031A00
Manufacturer Part Number (Alt)
1220129
Product Series
deTec4
Product Type
Safety Light Curtain – Sender
System Part
Sender
Application
Normal industrial environment
Resolution
30 mm (hand protection)
Protective Field Height
1,200 mm
Scanning Range
30 m
Response Time
12 ms (Uncoded); 20 ms (Code 1 or Code 2)
Synchronization
Optical synchronization
Safety Type
Type 4 (IEC 61496-1)
Safety Integrity Level
SIL 3 (IEC 61508) / SILCL 3 (IEC 62061)
Category
Category 4 (ISO 13849-1)
Performance Level
PL e (ISO 13849-1)
PFH_D (Single Device)
15.3 × 10⁻⁹
PFH_D (Cascade with 1 Guest)
30.5 × 10⁻⁹
PFH_D (Cascade with 2 Guests)
45.6 × 10⁻⁹
Mission Time (T_M)
20 years (ISO 13849-1)
Supply Voltage (V_S)
24 V DC (19.2 V … 28.8 V)
Ripple
≤ 10%
Power Consumption (Typical)
1.68 W (DC)
Protection Class
III (IEC 61140)
Enclosure Rating
IP65 / IP67 (IEC 60529)
Ambient Operating Temperature
–30 °C … +55 °C
Housing Material
Aluminum extruded profile
Connection Type
M12 male connector, 5-pin or 8-pin (system plug required)
Extension Connection
Without extension or M12 female connector, 5-pin (depending on system plug)
Configuration Method
DIP switch on system plug
Display Elements
LEDs
No Blind Zones
Yes
Beam Coding
Yes
Cascading
Yes
Integrated Laser Alignment Aid
Yes
Safe State (Fault Condition)
At least one OSSD is in the OFF state
Replaces
C40S-1204CA010
Items Supplied
Sender (system plug ordered separately)
We warranty all items for 30 days from date of purchase.
