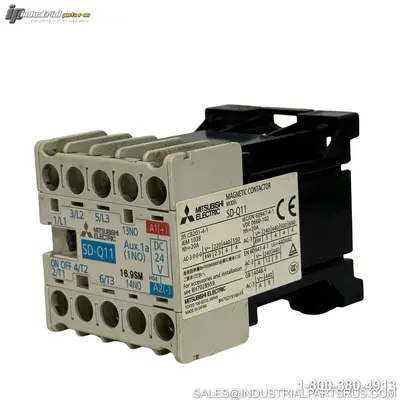

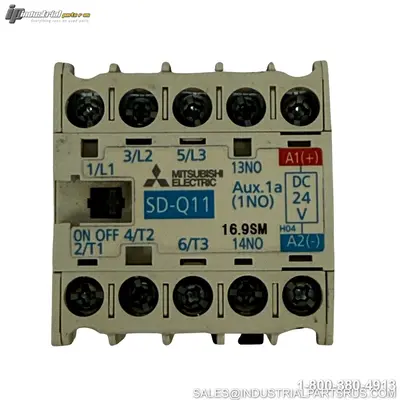

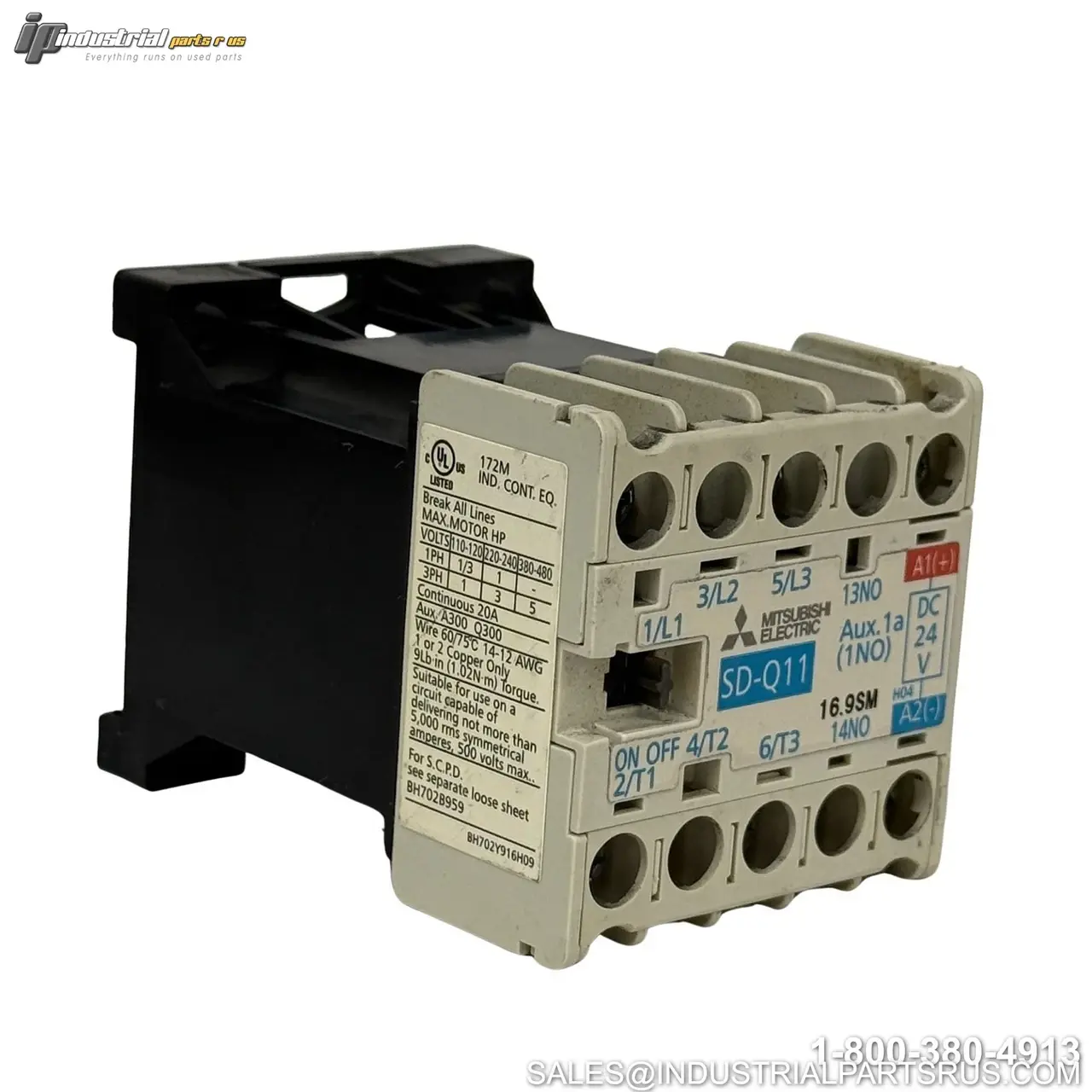

USED MITSUBISHI SD-Q11

The Mitsubishi Electric SD-Q11 is a non-reversing, DC-operated magnetic contactor from the MS-N Series, designed for reliable motor starting and stopping in industrial automation applications. It features a 24VDC control coil, a 3-pole main circuit configuration with a 9A rated current at 380–440V AC (12A at 200–240V), and a rated voltage of 690V. Rated at 4 HP and IEC utilization category AC-3, the SD-Q11 incorporates a built-in surge absorber, screw-clamp terminals, and mounts directly on standard 35mm DIN rail or surface, complying with EN60947-4-1, IEC60947-4-1, and JIS C8201-4-1 standards. RoHS compliant and approved by UL, CSA, and TÜV.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
SD-Q11
Series
MS-N Series
Type
Non-Reversing, DC Operated Magnetic Contactor
Frame Size
11
NEMA Size
00
IEC Utilization Category
AC-3
Coil Voltage
24VDC
Coil Current
55 mA
Coil Power Consumption
1.3 W
Current Type
DC
Number of Poles
3
Number of Phases
3
Contact Configuration
3NO Main + 1NO Auxiliary
Rated Current (AC, 380–440V)
9A
Rated Current (AC, 200–240V)
12A
Rated Current (AC, 500–550V)
7A
Rated Capacity (220–240V, 3-Phase)
3 kW
Rated Capacity (380–440V, 3-Phase)
4 kW
Horsepower Rating
4 HP
Rated Voltage
690V
Thermal Current (Ith)
20A
Auxiliary Contacts (Standard)
1 NO
Frequency Range
50/60 Hz
Wiring Type
Screw-Clamp
Protection Class
IP20
Mounting Type
DIN Rail (35mm) / Surface Mount
Coil Drive
Transistor Output Direct Drive
Surge Absorber
Built-In
Min. Operating Temperature
-10°C
Max. Operating Temperature
40°C
Mechanical Durability
10,000,000 Operations
Body Material
Thermoplastic (Flame Retardant)
RoHS Compliant
Yes
Width
45 mm
Height
51 mm
Depth
66.5 mm
Weight
0.19 kg
Standards Compliance
EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
UL / CSA / TÜV Approved
Yes
European Order Code
147626
We warranty all items for 30 days from date of purchase.
