USED BALLUFF BN100CR BNI IOL-104-S02-Z012

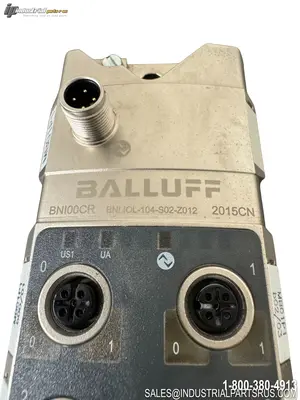

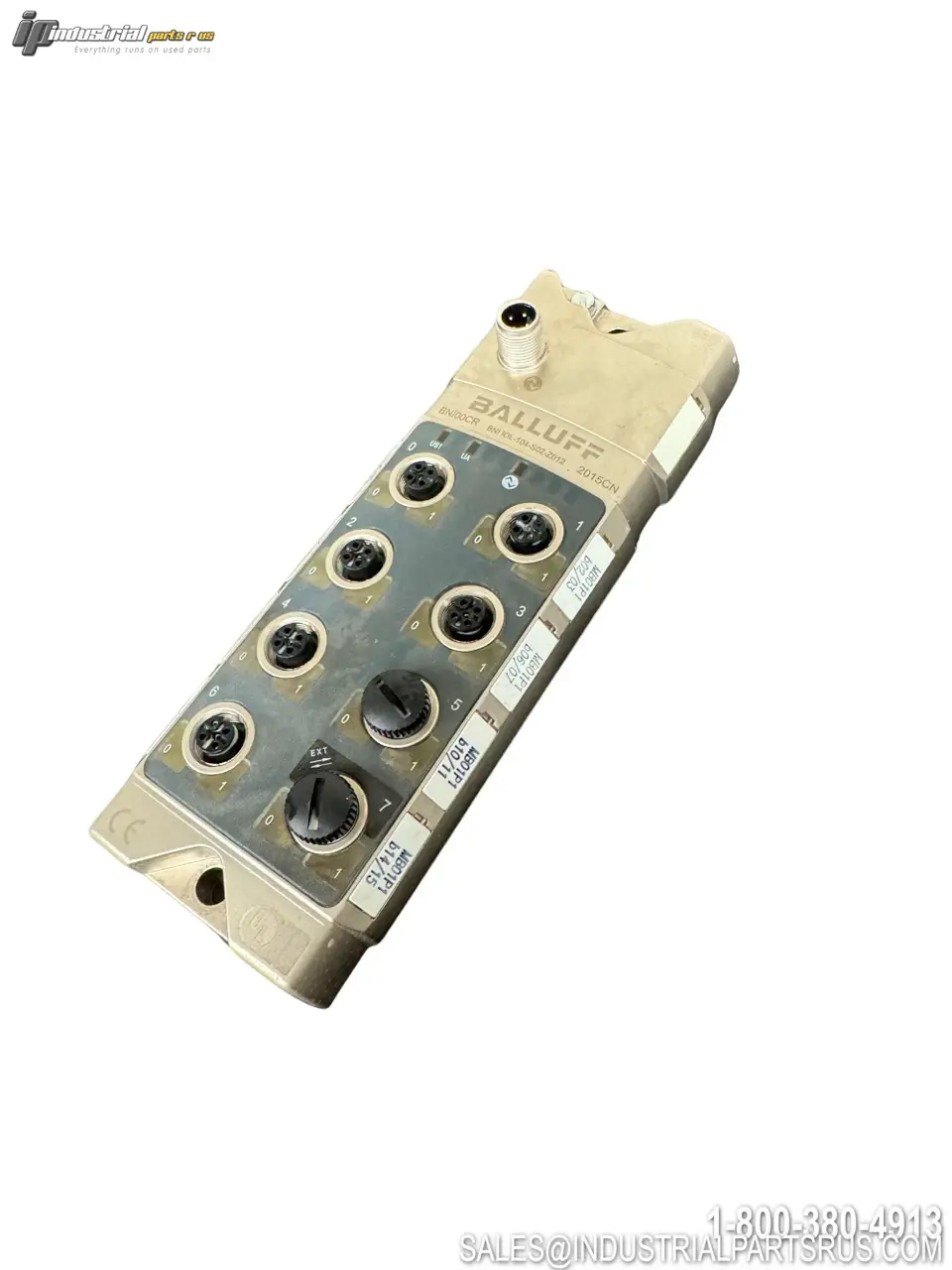

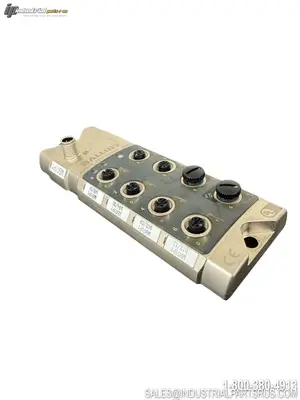

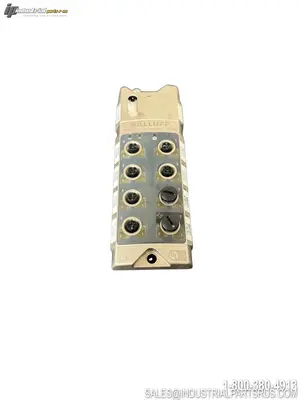

The Balluff BNI00CR (BNI IOL-104-S02-Z012) is an IO-Link 1.1 Sensor/Actuator Hub designed to bundle digital sensor signals and transmit them over the IO-Link interface to a higher-level master module. Functioning similarly to a passive splitter box, it records up to 16 digital PNP inputs via 8 M12 connection ports with single-channel monitoring and features an extension port for daisy-chaining additional hubs. The module receives its supply voltage directly through the IO-Link interface — no separate power connection is required.
Specification
Value
Brand
Balluff
Model / Part Number
BN100CR BNI IOL-104-S02-Z012
Balluff SKU
BNI00CR
Product Type
IO-Link Sensor/Actuator Hub (I/O Module)
Analog/Digital
Digital
Controller Platform
IO-Link
Communication Standard
IO-Link 1.1
Interface
IO-Link 1.1
Operating Voltage (Ub)
18...30.2 VDC
Supply Voltage Source
Via IO-Link interface (no separate supply required)
COM Port Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection Slots
8x M12x1-Female, 5-pin, A-coded
Digital Inputs
16x PNP, Type 3
Configurable Inputs/Outputs
No
Extension Port
Yes
Single-Channel Monitoring
Yes
Current Sum US (Sensor)
4 A max
Current Sum UA (Actuator)
4 A max
Transfer Rate
COM2 (38.4 kBaud)
Process Data Cycle (Min.)
4.4 ms
Process Data IN
4 bytes
Max Cable Length
20 m
Housing Material
Die-cast zinc, nickel-plated
Dimensions (W x H x D)
68 x 31.8 x 181.5 mm
Ambient Temperature
-25...55 °C
IP Rating
IP67 (when threaded in)
Mounting
2x M6 screws and 2 spacers
Ground (FE) Connection
Yes
ECLASS 10.1 / 11.0
27-24-26-02
We warranty all items for 30 days from date of purchase.
