NEW MITSUBISHI F1-60MR

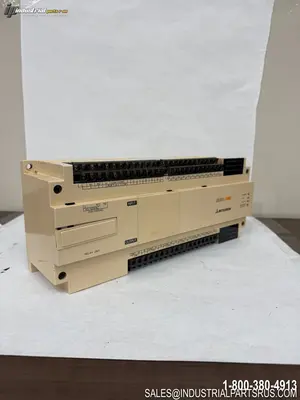

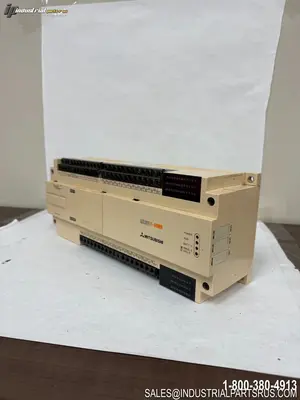

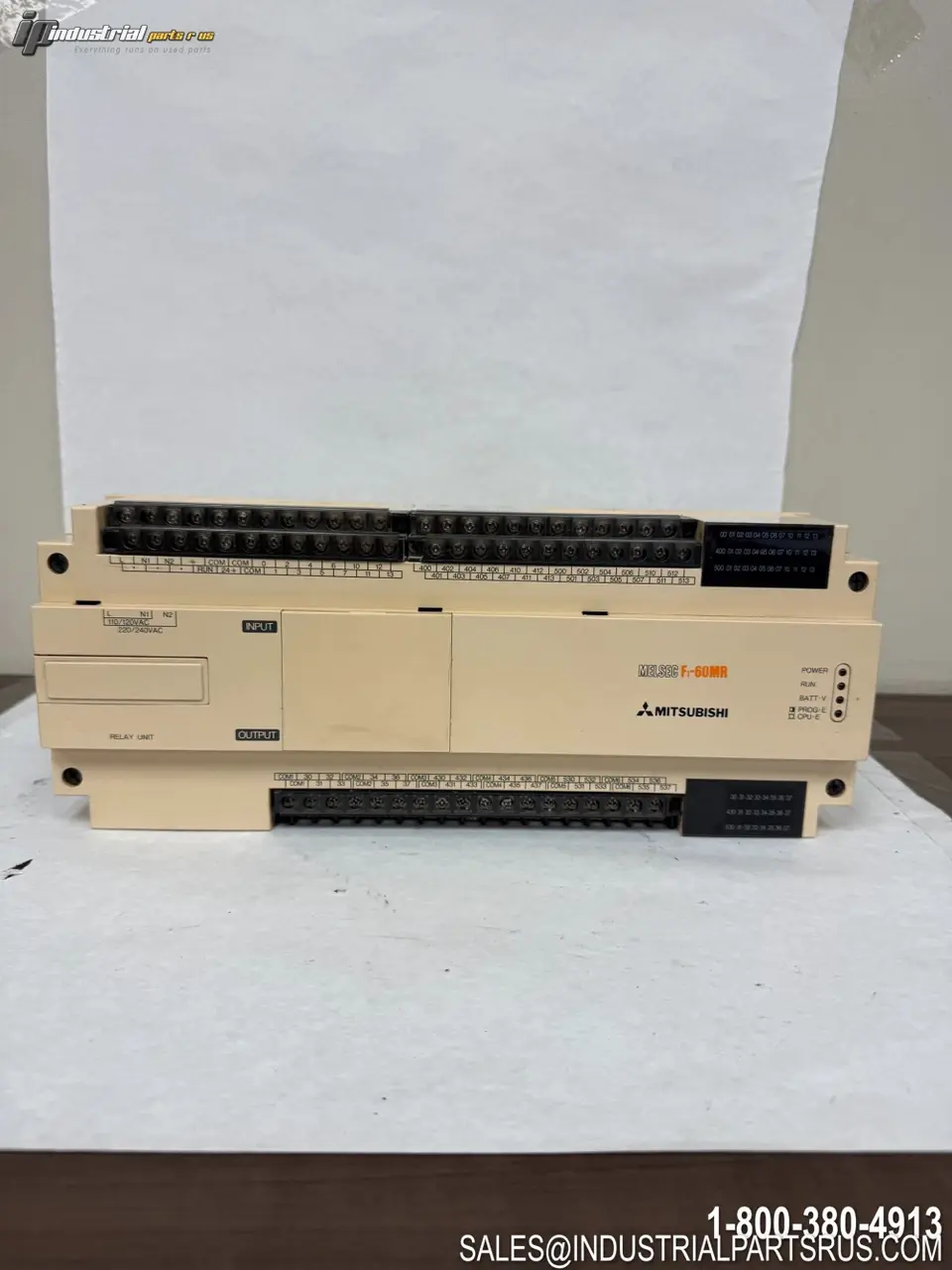

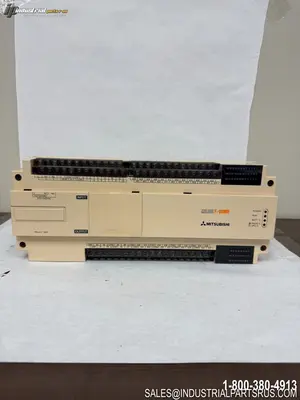

The Mitsubishi MELSEC F1-60MR is a brick-style programmable logic controller (PLC) from the legacy F1 Series, featuring 60 I/O points (36 DC inputs and 24 relay outputs) in a single integrated base unit. It operates on AC mains power (100–120V or 200–240VAC, selectable) and provides an internal 24VDC service rail for input sensor devices. The F1-60MR is expandable to 120 I/O points via extension units and supports EPROM, EEPROM, or cassette tape external program storage. Programming is performed via Mitsubishi's F Series handheld programmer or dedicated programming software using ladder logic. This model has been discontinued by Mitsubishi Electric.(Output relay will not switch. Parts only)
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
F1-60MR
Series / Platform
MELSEC F1 Series
Product Type
Programmable Logic Controller (PLC) – Brick / Base Unit
Total I/O Points
60 (36 Inputs / 24 Outputs)
Number of Inputs
36
Input Voltage (Sensor)
24V DC
Input Current (OFF→ON)
4 mA minimum
Input Current (ON→OFF)
1.5 mA maximum
Number of Outputs
24
Output Type
Relay (NO contacts)
Output Rating
30V DC / 250V AC, 2A max

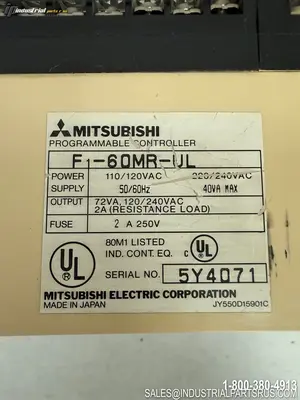

AC Power Supply Voltage
100V/110V AC or 200V/220V AC (selectable)
Power Supply Frequency
50/60 Hz
Power Consumption
40 VA
Input Response Time
Approx. 10 ms
Program Memory Capacity
1000 Steps
Memory Type
CMOS RAM (battery backed); optional EPROM / EEPROM / cassette
Execution Speed
Average 12 µs/step
Programming Language
Ladder Logic (Relay Ladder Diagram)
Programming Device
F Series Handheld Programmer or compatible programming software
Maximum Expandable I/O
120 I/O (via extension units)
Battery Backup
Yes (5-year battery for built-in RAM)
Terminal Type
Screw terminals (removable terminal block)
Diagnostic LEDs
Inputs, Outputs, Power Supply, RUN/STOP, Battery Voltage, Program Error, CPU Error
Mounting Type
DIN Rail or Surface Mount
Weight
Approx. 2.59 kg (5.75 lbs)
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
