2013 Haas EC-400 with Full 4th Axis Rotary Tbl, Coolant Thru Spindle, Tool & Part Probing, 40 Station ATC, 12,000 RPM,. Hi-Spd Machining

2 Pallet Changer System

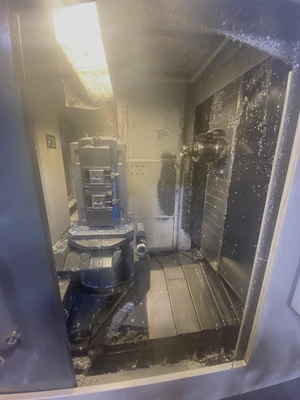

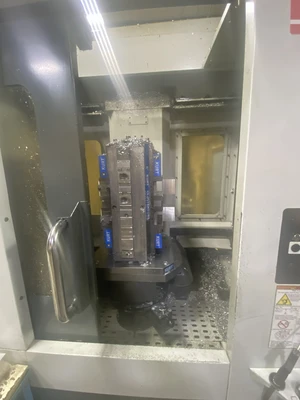

Full 4th Axis Rotary Table
Renishaw Wireless Intuitive Probing System (WIPS)
Coolant Thru the Spindle
12,000 RPM Spindle
40 Station Tool Changer
Chip Conveyor
High Speed Machining
Rigid Tapping
User Macros
Coordinate Rotation & Scaling
Spindle Orientation
Intuitive Programming System
Wired 195-260V Electrics

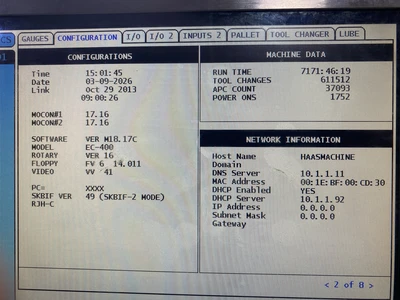

**ONLY 7,171 Run Time Hours**
**Machine Manufactured New in December of 2013**

**Tombstones and fixturing are NOT included with machine**

**Also available from same plant, 2005 Haas SL-10 Chucker with toolsetter, parts catcher, mist collector, collet chuck**

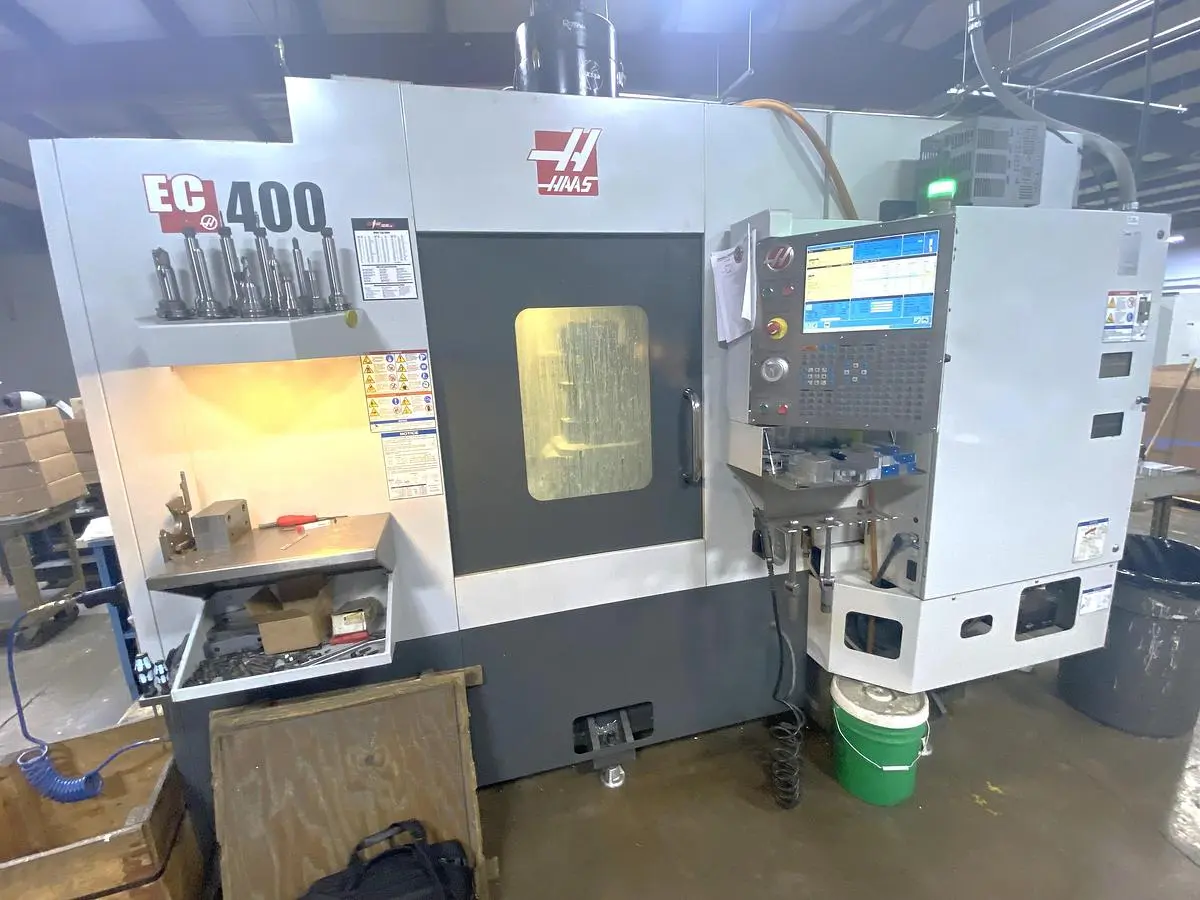

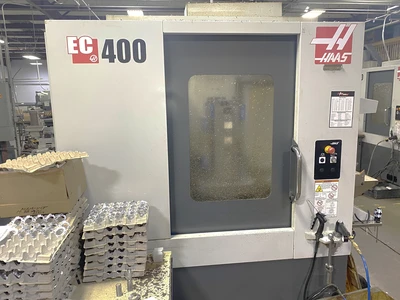

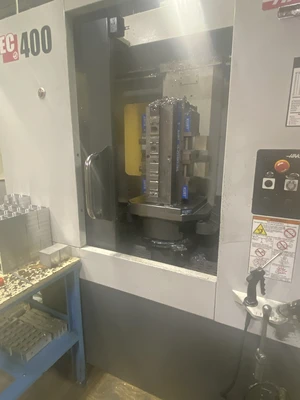

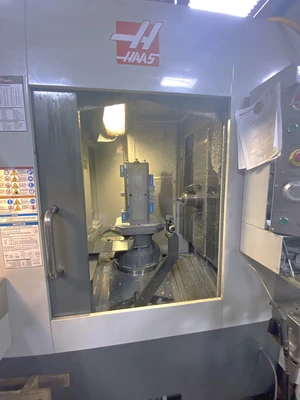

The 2013 Haas EC-400 is a robust CNC horizontal machining center designed for efficiency and precision. This used model comes equipped with a full 4th axis rotary table offering .001-degree indexing, enhancing its versatility for complex machining tasks. It features a 15.75" x 15.75" pallet with a 2-pallet changer system capable of handling up to 1,000 lbs, ensuring high productivity and reduced setup times.

The machine boasts a 12,000 RPM spindle speed, driven by a 20 HP motor, and a CAT 40 spindle taper, ideal for various milling operations. With travels of 22" in X and Z axes and 25" in the Y-axis, it accommodates a wide range of workpiece sizes. The 40-station automatic tool changer and tool change times of 2.1 seconds (tool to tool) and 3.7 seconds (chip to chip) further contribute to its efficient operation.

To support precision, it is outfitted with features like coolant through spindle and both tool and part probing. Rapid traverse rates of 1,000 IPM and cutting feed rates of 500 IPM ensure swift and accurate machining operations. The machine's dimensions are 133" x 135" x 101", with a substantial weight of 21,000 lbs, reflecting its sturdy construction. Suitable for high-speed machining, this unit is an excellent choice for industries demanding reliability and accuracy.
