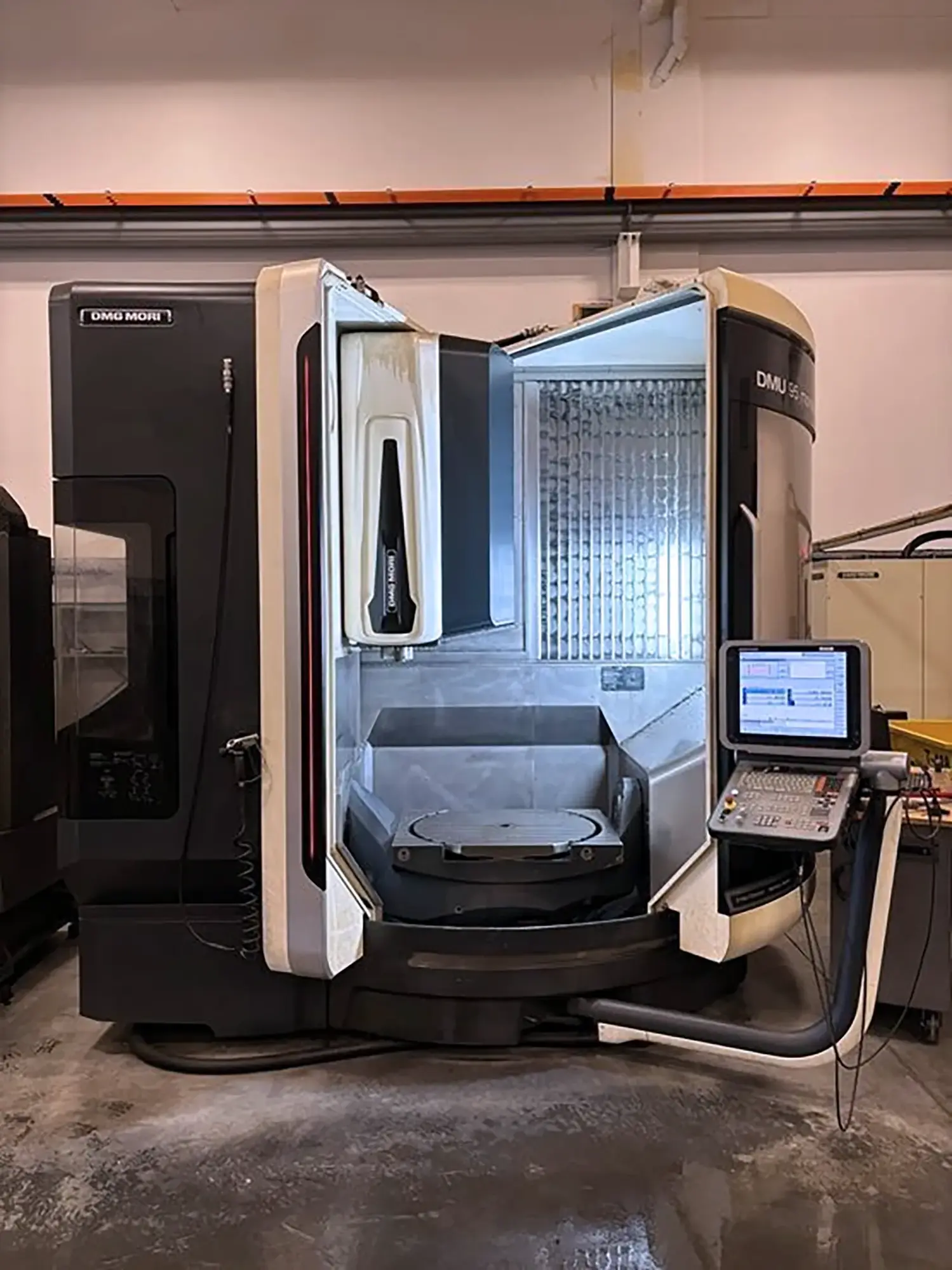

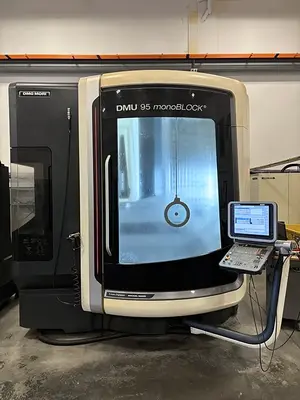

USED 2018 DMG MORI DMU 95 MONOBLOCK
Overview
The Used 2018 DMG Mori DMU 95 monoBLOCK is a high-rigidity, 5-axis CNC machining center built for precision milling of complex metal and composite parts. Ideal for aerospace, medical, automotive, mold and die, and energy industries, it delivers exceptional accuracy, machining flexibility, and efficient single-setup production.
Specs
Heidenhain TNC 640 3D CNC Control
Mdynamics Package
MPC Machine Protection Control
Safety Package for Power Failure
Spray Pistol with Pump
Rotating Clearview Window
Coolant Ring Jet
3D Quickset
Chip Conveyor
Renishaw Infrared Measuring Probe
Blum Laser Tool Length Measurement
Production Package: 40 Bar 23 L/min Coolant Thru Spindle
500L Tank & Filtration
Hand-Held Remote Pulse Generator
Inner Cooled Ball Screws
Optimal 3-Point Support System
3D Simultaneous Graphics
Dynamic Collision Monitoring
Simultaneous 5-Axis Milling
Four (4) Colour Signal Light
Transformer
Number Of Tables / Pallets: 1
Table Size: 39.3” x 29.5”
Weight On Table: 2,200 lbs
Integrated NC Rotary Table Size: 33.4”
Main Spindle Horsepower: 46.9 HP
Main Spindle Speed: 20,000 RPM
Maximum Workpiece Diameter & Height: 40.9” x 23.2”
Main Spindle Taper: HSK A63
X-Axis Travel: 37.4”
Y-Axis Travel: 33.5”
Z-Axis Travel: 25.6”
A-Axis Travel: +/- 120 Degrees
C-Axis Travel Table Indexing: 360 Degrees
Rapid Traverse Rate X, Y and Z: 1,576 IPM
Cutting Feed Rate: 1,576 IPM
AUTOMATIC TOOL CHANGER: 60 Positions
Tool Diameter: 3.14” / 6.3”
Tool Length: 16.5”
Tool Weight: 17.6 lbs
Machine Weight: 39,462 lbs
Equipped With
Heidenhain TNC 640 3D CNC Control
Mdynamics Package
MPC Machine Protection Control
Safety Package for Power Failure
Spray Pistol with Pump
Rotating Clearview Window
Coolant Ring Jet
3D Quickset
Chip Conveyor
Renishaw Infrared Measuring Probe
Blum Laser Tool Length Measurement
Production Package: 40 Bar 23 L/min Coolant Thru Spindle
500L Tank & Filtration
Hand-Held Remote Pulse Generator
Inner Cooled Ball Screws
Optimal 3-Point Support System
3D Simultaneous Graphics
Dynamic Collision Monitoring
Simultaneous 5-Axis Milling
Four (4) Colour Signal Light
Transformer
