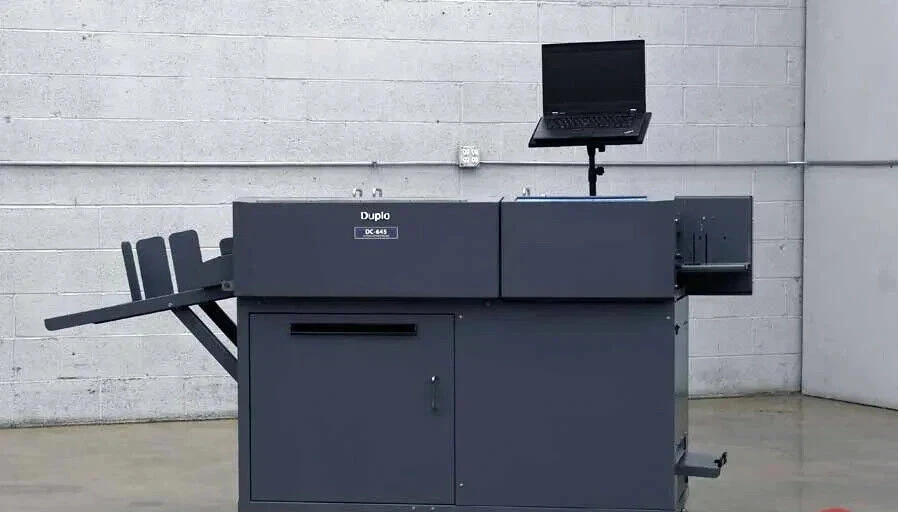

USED 2005 Duplo DC-645

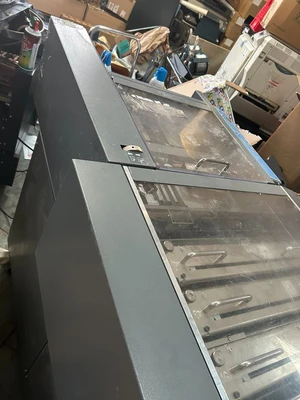

Duplo DC-645 Slitter/cutter/creaser

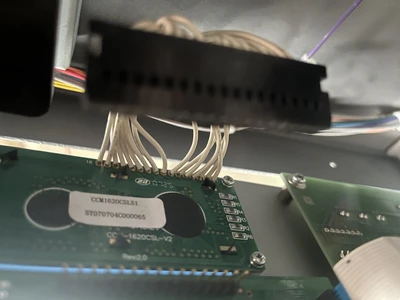

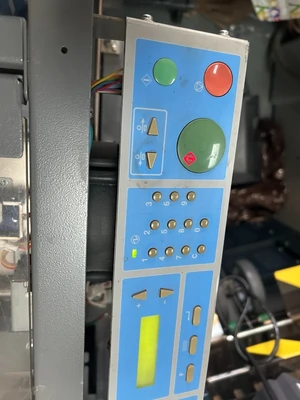

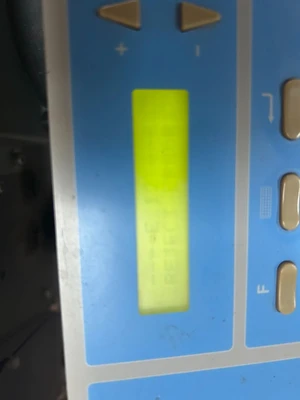

Screen not included, has error code E12, unable to remedy
Year of manufacture: 2005
S/N 051059818

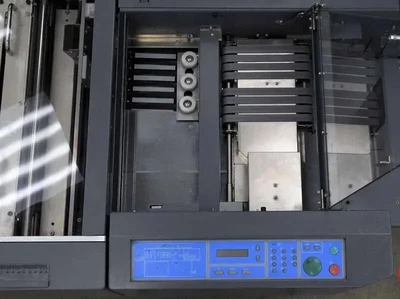

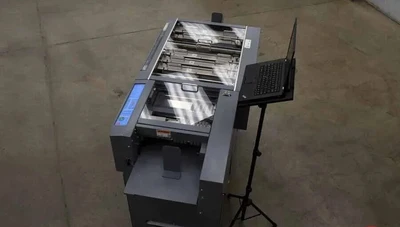

The Duplo DC-645 is the ideal finishing solution for digital color documents. Unlike any in the industry, the DC-645 slits, cuts, and creases documents in a single pass at an incredible speed of 26 sheets per minute. Unattractive white borders and cracked spines of digitally printed documents are problems of the past as the DC-645 produces a wide variety of professional quality, full-bleed applications such as business cards, greeting cards, invitations, brochures, pamphlets, catalogs, posters, book/CD covers, photographs, and more by simply loading the automatic high-capacity feeder.
SLITTER CUTTER CREASER SPECIFICATIONS
Speed Up to 26 sheets per minute¹
Paper Weight 80 lb. text – 130 lb. cover (110 gsm – 350 gsm)
Paper Size Input: 210 mm x 210 mm (8.26” x 8.26”) to
370 mm x 650 mm (14.56” x 25.59”)
Minimum output: slit width 48 mm (1.89”) x cut length 85 mm (3.35”)
Paper Type Non-coated, coated, laminated²
Input Tray Capacity 100 mm (3.93”)
Slitters Six rotary slitters (two margin and four center slitters)
Slit Accuracy ±0.2 mm (±0.3 mm for business cards)
Margin Slit Width 3.2 mm – 40 mm from paper edge
Gutter Slit Width 5 mm – 15 mm (gutter strips wider than 15 mm will output on stacker tray)
Cuts Up to 15 cuts per sheet
Minimum Cut Length Lead edge cut: 3.2 mm
Gutter cut: 4 mm
Trail edge cut: 5 mm
Cut Accuracy ±0.2 mm (±0.3 mm for business cards)³
Creases Up to 10 creases per sheet
Crease Accuracy ±0.2 mm on fi nished size³
Crease Depth Adjustment Three steps
Gutter Defl ector Up to two gutter slits per sheet
Stacker Capacity 140 mm (5.5”)
Standard Features Maximum 80 job program memory; proof feed mode (process one
sheet); job program computer interface (with software installed) via USB
connector; air knife; skew adjustment; double feed detection and reject;
image shift compensation with REG mark; automatic set-up with barcode;
gutter defl ector; image shrinkage compensation
Options Business card module; perforation module (2 perforation tools, 15 pitches
per inch); IFS
Power Consumption 120V 50/60Hz 3.3A
Dimensions (LxWxH) 30” x 90” x 45” (with additional tray 30” x 97” x 45”)
Weight 793 lbs. (360 kg)
