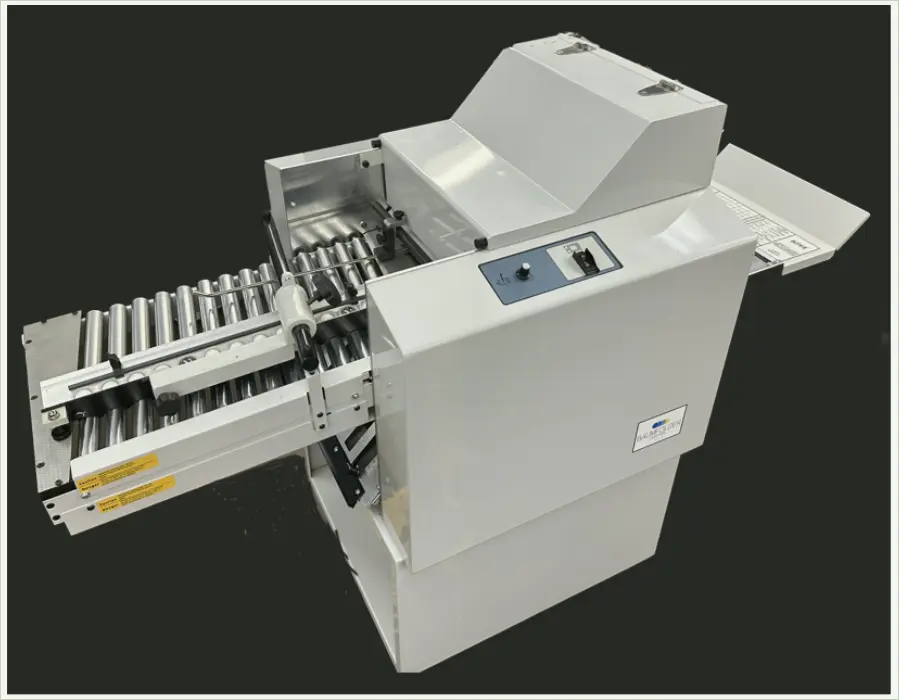

NEW Baum 714XLT

Baum Ultrafold 714H-2-8PG-1 8 Page Air Feed Paper Folder
714 8-Page Specifications:
Maximum sheet size right angle.............. 14" x 12.5"
Minimum sheet size......................................... 3" x 5"
Maximum size fold – #1 or #2 plate................... 13.5"
Minimum size fold.............................................. 2.25"
Maximum paper weight........................... 65 lb cover
Fold roll diameter.................................................1.5"
Fold roll material...................... either Polyurethane
.......................... or Combination Polyurethane/Steel
Right-Angle fold roll speed.........................5000"/min
Operating voltage.............................110 VAC - 60 Hz
Power consumption ................................ 1500 watts
Dimensions & Weights:
Overall machine dimensions .................... Height 27"
Length 49"
Width 24.5"
Weight (net).................................................... 310 lbs
Weight (crated)............................................... 340 lbs
Crate size.................................. 27" h x 29" w x 56" l
714XLT 8-Page Features
Toner-resistant fold rollers [urethane only]
Polyurethane fold rolls
Gear-driven fold rolls
Automatic fold roller tensioning
Angular roll cross carrier
Gear driven cross carrier rolls
Easy Access slitter shafts
Flow-Thru design
Adjustable scoring assembly
Extended delivery stacker
DC drive
Sealed ball bearings
Sound Covers standard
Special 8-page cart included standard
transfer table
Heavy duty construction
Requires Freight Shipping
