NEW MASTER PNEUMATIC-DETROIT 71003104B

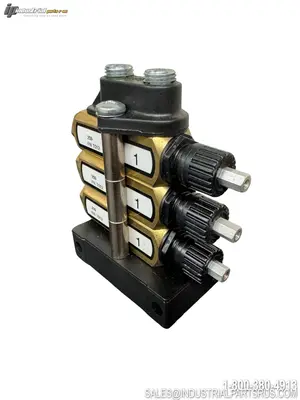

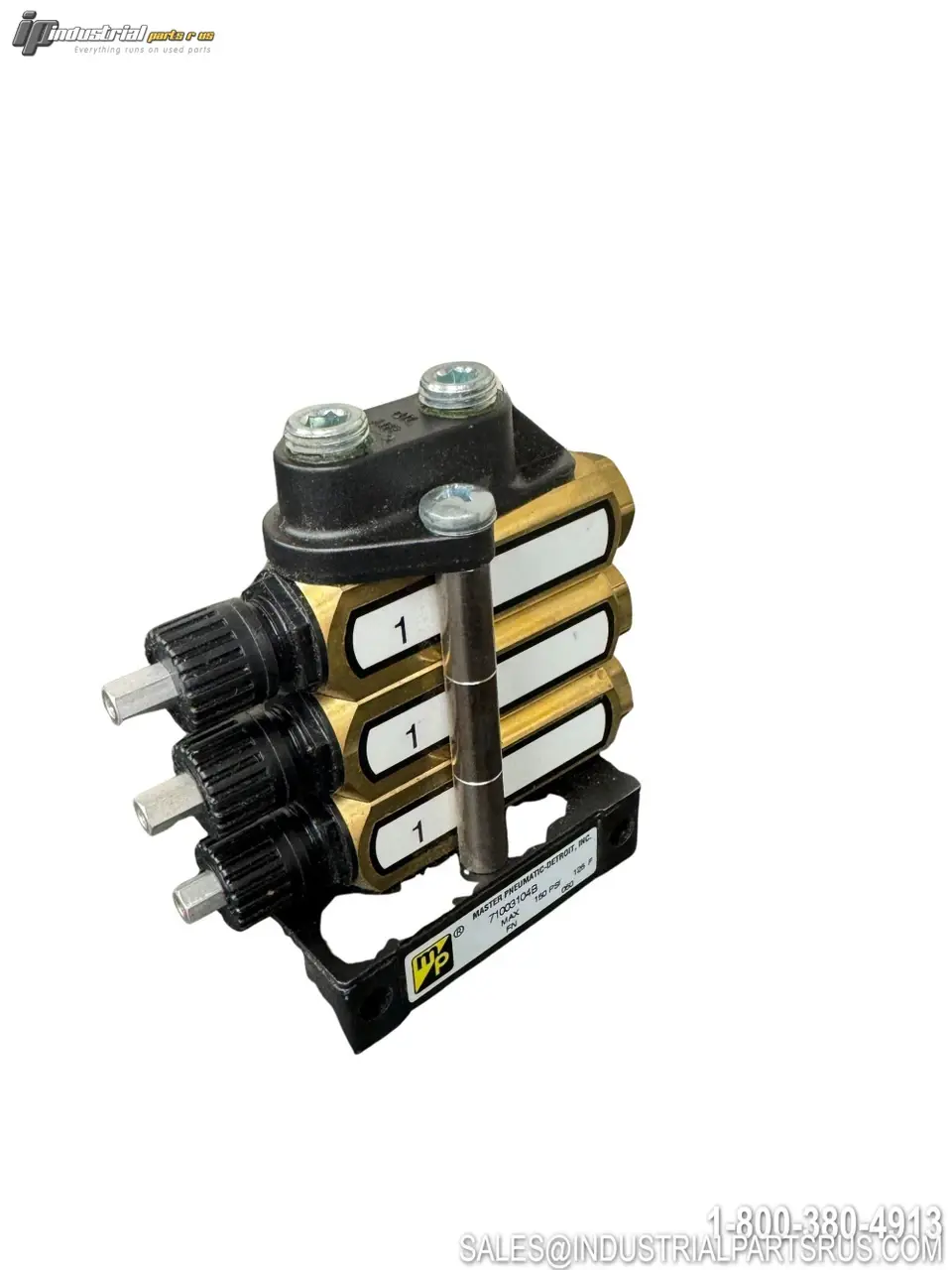

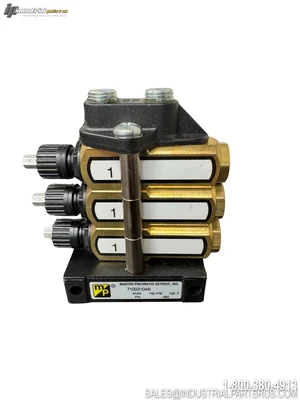

The Master Pneumatic-Detroit 71003104B is a SERV-OIL® Series 710 Multiple-Point Injection Lubricator (MPL) configured with three 1-drop (0.030 ml) Servo-Meter injectors for precision lubrication of pneumatic actuators, cylinders, air motors, and other wear points. The assembly features a solenoid-actuated 3-way pneumatic valve and uses positive-displacement Servo-Meter modules that deliver precise, measured oil doses with each actuation cycle. The Series 710 assembly uses two mounting holes and is suitable for applications requiring dependable micro-lubrication at multiple independent points.
Specification
Value
Brand
Master Pneumatic-Detroit
Model / Part Number
71003104B
Product Series
SERV-OIL® MPL Series 710
Description
MPL 1 DROP — 3-Point Multiple-Point Injection Lubricator
Number of Servo-Meters (Lubrication Points)
3
Servo-Meter Rating
1 Drop (0.030 ml) per actuation
Servo-Meter Adjustment Range
Adjustable down to 1/10 of rated volume (min. 0.003 ml)
Servo-Meter Body Material
Brass (optional Aluminum)
Servo-Meter End Caps
Acetal
Pneumatic Valve Type
Solenoid-actuated 3-way
Solenoid Voltage Options (AC)
24V, 120V, 220V AC — 50/60 Hz
Solenoid Voltage Options (DC)
12V, 24V, 110V DC
Operating Pressure
60–150 psig (4.1–10.3 bar)
Maximum Pressure
150 psig (10.3 bar)
Minimum Actuating Pressure
60 psig (4 bar)
Port Size
1/4 in NPTF
Air-to-Oil Pressure Ratio
11:1
Ambient / Media Temperature
40°–125°F (4°–52°C)
Mounting Holes
2 (standard Series 710)
Dimensions (A × B × C × D × E)
3.9 × 2.5 × 1.8 × 4.1 × 4.3 in (99 × 64 × 46 × 104 × 109 mm)
Oil Supply
Gravity reservoir or pressurized supply ≤30 psig (reservoir ordered separately)
Compatible Controllers
PC100 or PC110 (ordered separately)
Max Servo-Meters per Assembly
Up to 10
Fluid Media
Oil / Lubricant
ISO Certification
ISO 9001:2015
We warranty all items for 30 days from date of purchase.
