NEW DOALL DS-500SA

3,252Listings|0Followers
Overview
Horizontal Band Saws

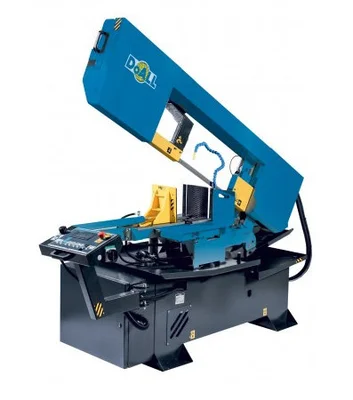

The DoALL DS-500SA StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the DS-500SA is ideal for machine shops, repair facilities and industrial manufacturing plants that need to occasionally cut metal solid and profile material.

Specs
Rect-Cap (H)
14.17"
359.92 mm
Rect-Cap (W)
19.69"
500.13 mm
Rounds-Cap
14.17"
359.92 mm
Power
4 hp
3 kW
Type (Auto, Manual, Semi)
Semi
Semi
Blade Width
1.25"
31.75 mm
Blade Thickness
0.042"
1.0668 mm
Blade Length
188"
4,775.2 mm
Dimensions
109"W x 38"L x 90"H
109"W x 38"L x 90"H
Weight
1576 lbs
1576 lbs
