New | Build-to-Order

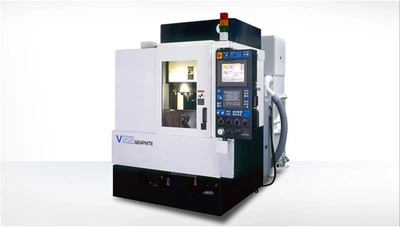

NEW MAKINO V22 GRAPHITE
Overview
The V22 Graphite features a low-vibration, high-speed spindle and Makino’s proprietary SGI.4 control to deliver high-accuracy, high-speed machining. The V22 Graphite has a fully enclosed splash guard that completely seals graphite dust inside for a clean shop environment. Besides sealing graphite dust, dry machining of steel and castings is also possible.
Specs
X
12.6"
320.04 mm
Y
11"
279.4 mm
Z
11.8"
299.72 mm
RPM
40,000 RPM
40,000 RPM
# ATC
30
30
Table-W
13.8"
350.52 mm
Table-L
17.7"
449.58 mm
# Axis
3
3
