USED ATLANTIC HDE 10X1/4
Overview

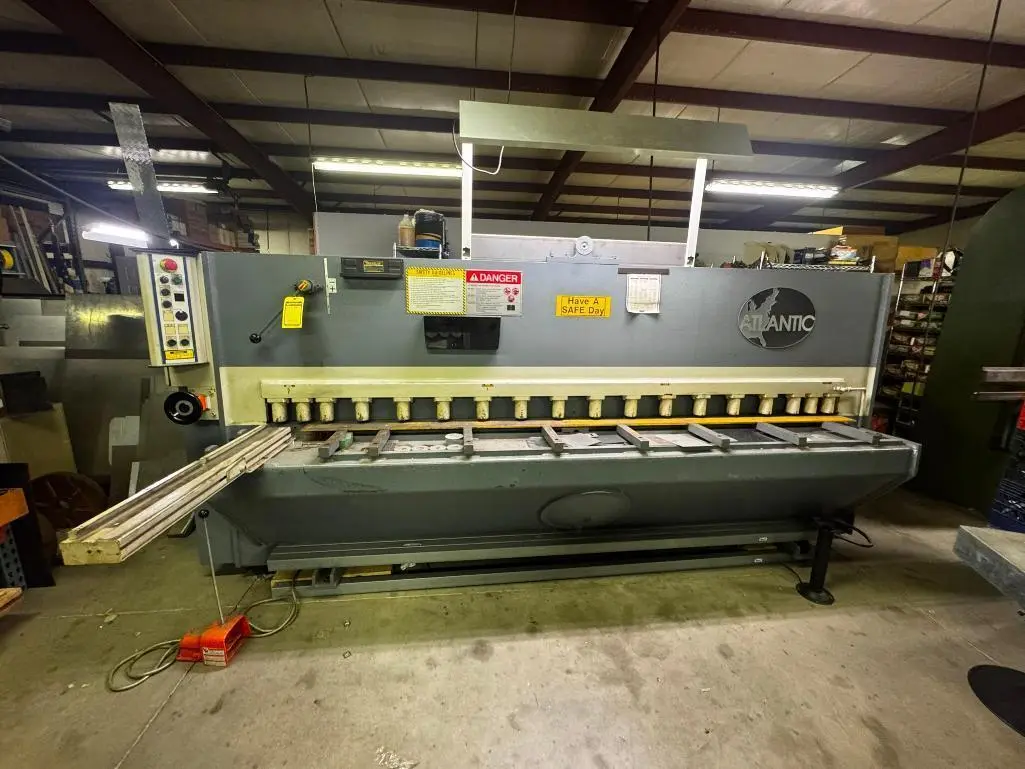

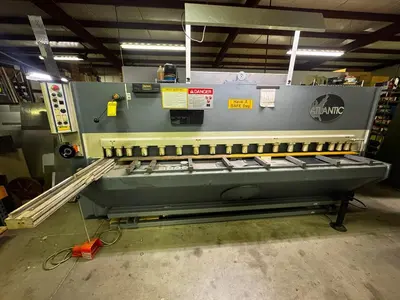

`10’ X 1/4” ATLANTIC “HDE 10x1/4”HYDRAULIC POWER SQUARING SHEAR - Power Back Gauge -
Squaring Arm - Foot Pedal
Specs
10' x 1/4" ATLANTIC HYDRAULIC POWER SQUARING SHEAR

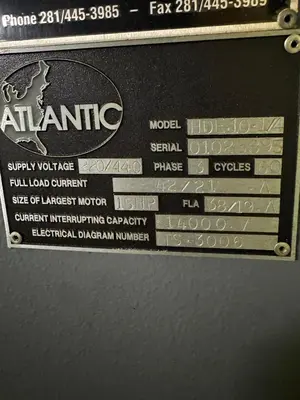

Serial No 01025895, Model HDE 10x1/4”,
EQUIPPED WITH:
29” Front Operated Power Back Gauge
(18) Hydraulic Hold-Downs
40” Squaring Arm
Cutting Angle Adjustment
Quick Blade Gap Adjustment
Foot Pedal
No Pit Required

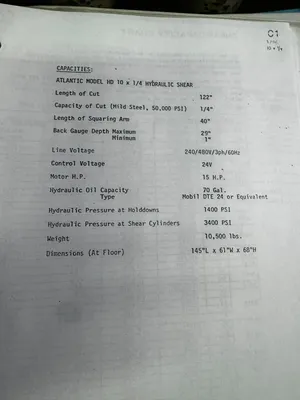

CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 10' x 1/4"
Shearing Capacity, Stainless 10' x 10 GA
Cutting Length, Maximum 122"
Back Gauge Range, Maximum 29”
Back Gauge Range, Minimum 1”
Angle Adjustment, Range 1 to 3-DEGREES
Strokes Per Minute, Range 10 to 25 SPM
Hydraulic Pressure at Hold-Downs 1400 PSI
Hydraulic Pressure at Shear Cylinders 3400 PSI
Hydraulic Oil Capacity 70 GALLONS
Motor Horsepower 15 HP
Electrical System 230-440/3/60
Overall Dimensions, L x D 145" x 61"
Overall Height 68"
Weight, Approximately 10500 LBS
F.O.B. ON WAY IN
