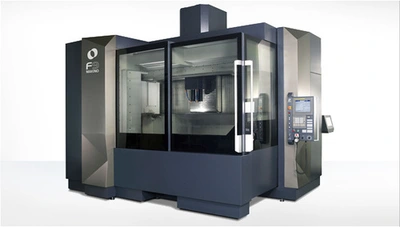

NEW MAKINO F9

3,252Listings|1Follower
Overview
Vertical Machining Centers

The F9 large, vertical machining center is designed to provide the power, speed, precision and versatility to attack both large production part applications as well as big die and mold components. The F9 is designed to provide stiffness and rigidity for chatter-free, heavy cutting, roughing and finishing on the same machine, agility for high-speed / hard-milling and accuracies for tight-tolerance blends and matches typical of complex, 3-D contoured geometry associated with die/mold and medical production. The unique machine design provides unparalleled access to ease setup and changeover reducing WIP and overall lead-time.

Specs
X
62.992"
1,600 mm
Y
31.496"
800 mm
Z
25.591"
650 mm
Power
50 hp
37.3 kW
RPM
10,000 RPM
10,000 RPM
# ATC
30
30
Taper
CAT-50
CAT-50
Table-W
31.496"
800 mm
Table-L
72.835"
1,850 mm
# Axis
3
3
Dimensions
4300x4090x3560mm
4300x4090x3560mm
Weight
17000kg
17000kg
