NEW MAKINO T2

3,252Listings|0Followers
Overview
Horizontal Machining Centers

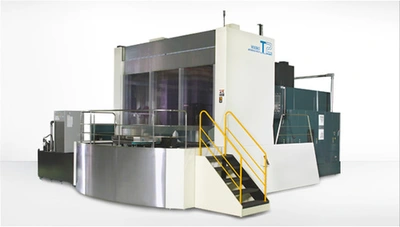

Makino’s new T2 5-axis horizontal machining center dramatically increases titanium-milling efficiency, combining lean manufacturing methods and increased metal-removal rates for today’s aerospace applications. It is specifically designed for the production of large titanium and titanium-alloy aerospace parts such as edge frames, pylons and bulkheads. The T2 includes several key elements for efficient titanium machining, including an Active Dampening System, rigid construction for enhanced performance, a high-torque, high-powered spindle, and a high-pressure, high-flow coolant system for increased speed and productivity.

Specs
X
78.7"
1,999 mm
Y
78.7"
1,999 mm
Z
63"
1,600.2 mm
Power
133 hp
99.2 kW
RPM
4,000 RPM
4,000 RPM
# ATC
120
120
Pallet-W
39.4"
1,000.8 mm
Pallet-L
49.5"
1,257.3 mm
# Axis
5
5
