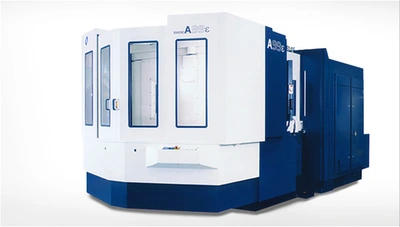

NEW MAKINO A99E

Ideally suited for manufacturing in the diesel engine block, transmission and semiconductor markets, the A99E accepts loads up to 4,400 lbs., with an optional upgrade to 6,600 lbs. (3,000 kg). A 40-tool magazine is standard. The A99E has a tremendous metal-removal-rate capability of 244 cubic inches per minute (4,000 cm3/minute) for softer metals such as aluminum, and a rate of 61 cubic inches per minute (1,000cm3/minute) for mild steel. It also has a 360-degree bidirectional index table for superior versatility and machining flexibility. The 1.7-second automatic tool change and 5.0-second chip-to-chip time significantly reduce non-cutting time.
