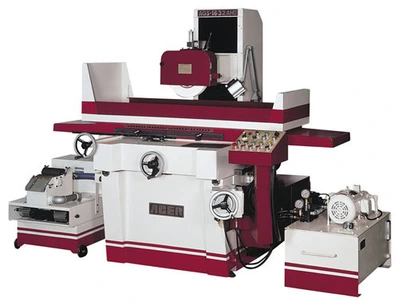

NEW ACER AGS-1640AHD

Features:
- Spindle run-out within 0.00015".
- Enlarged honey comb-ribbed column is designed for heavy duty grinding. Standard high is at 28-5/16".
- Continuous flood type lubrication system to reduce machine wear and maintain the accuracy of the machine.
- Revolutionary proximity switch on table and crossfeed movement.
- Zero-setting slip rings with venier scale on both Z & Y axes.
- Crossfeed precision ball screw allows for zero backlash.
- Saddle lock/unlock device.
- Magnetic separator & paper filter system.
- FC-25 casting iron allows for maximum damping and stress relief.
- Turcite-B coated spindle housing.
- Direct drive spindle motor. Front mount flanged type spindle design for heavy duty grinding.
- Able to hold more than 1,000 lbs as work load.
- Preset table speed hydraulic control allows for fine increment of table speed.
- Double V of crossfeed system is 36" wide for maintaining table flatness accuracy.
- Three axes fully microprocessor controlled system with LED panel display.
- Safety 24V contol circuit.
- Rough and fine downfeed system is controlled by precise stepping motor control.
- Power disconnect safety device on electric-cabinet.
- Levelling bolts and pads.
- Machine weight more than 7,000 lbs.
