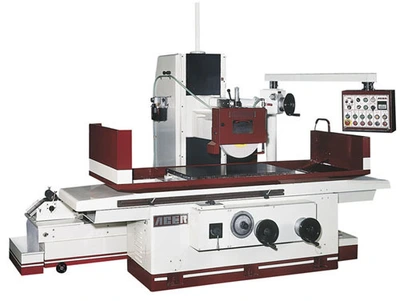

NEW ACER AGS-2060AHD

Features:
- Column type movement machine.
- One V and one flat table slideways are coated with Turcite-B.
- Reinforced column with Meehanite cast iron allows for heavy duty grinding.
- Double-V crossfeed ways are laminated with Turcite-B.
- Recirculating auto lubrication system ensures all moving parts are properly lubricated.
- Spindle uses four Class 7 high precision angular contact ball bearing. They are sealed and greased for life.
- Enlarged hydraulic tank with dual pump design allows for accurate downfeed and smooth table movement.
- Hydraulic temperature is kept constant by a separated cooling system. This is to make sure oil temperature will not rise more than 20° over room temperature.
- Mechanical downfeed designed for easy maintenance.
- V 3 graded 10 HP spindle motor.
- Maximum grinding capacity is 20" x 60".
- Front setting crossfeed dials allow users to set work piece distance without moving away from control panel.
