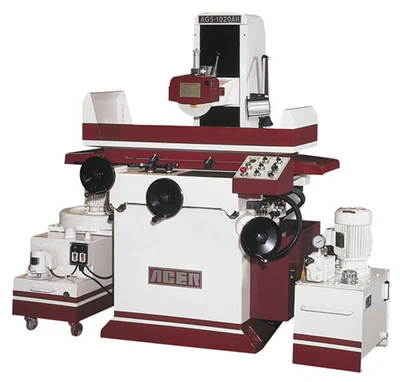

NEW ACER AGS-1224AHD

Features
- Reinforced high column & heavyweight Meehanite casting.
- Direct drive spindle equipped with 4 ABEC-7 angular contact ball bearing.
- Spindle motor: 2 HP (1020AHD), 5 HP (1224AHD).
- 1020AHD with 10" x 20" grinding capacity: 1224AHD with 12" x 24" grinding capacity.
- 3 axes auto movement, easy to operate & maintain.
- Auto surface & plunge downfeed
- Built-in chuck control for electromagnetic chuck (1224AHD only).
- 24 volt circuit control.
- Double-V crossfeed ways; one V, one flat table ways.
- Auto-lube system.
- Dual hydraulic pump system: one each for auto incremental downfeed and table longitudinal travel.
- Large volume hydraulic tank.
- Rapid power elevation for 1224AHD.
- Double nut design for crossfeed leadscrew.
- 19 3/4" \ 23 1/2" from table top to the center of spindle.
- 4,180 lbs of full Meehanite casting (1224AHD only)
- Extra wide saddle at 24 1/2" and 30 1/2" each.
- Package with parallel dresser, dust suction & coolant - system, halogen light and magnetic chuck.
