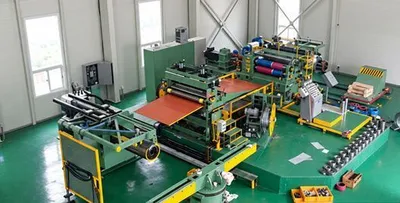

USED LOOPCO 1300mm X 15,000Kg SLITTING LINE (14731)

LOOPCO PULL THRU SLITTING LINE
Stock # 14731

MANUFACTURER: LOOPCO USA
RAW MATERIAL: COLD ROLLED STEEL
COIL THICKNESS: MIN 0.3mm _ MAX 3.0mm
COIL WIDTH: MAX 1,300mm UNTRIMMED
MAX 1,250mm TRIMMED
COIL WEIGHT: 15MT MAX
UNCOILER ID: 508mm
609mm
UNCOILER OD: MIN 609mm - MAX 1,524mm
RECOILER ID: 508mm (610mm W/ATTACHMENT)
RECOILER OD: MIN 609mm - MAX 1,524mm
RECOILER WEIGHT: MAX 15,000Kg
LINE SPEED: MAX 12m/min
SLITTING SYSTEM: PULL & DRIVE CUTTING BY DC POWER
CONTROL
STANDARD OF
THREADING: LINE CENTER
PASS LINE HEIGHT: OP GL + 1,270mm
LINE DIRECTION: RIGHT TO LEFT
(VIEW OF THE OPERATION SIDE)
MAIN CONTROL POWER: AC 440 V, 60 Hz, 3PH
PLC PROGRAM: SIEMENS
EPC PROGRAM: PORA ELECTRIC MACHINERY

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS SUBJECT TO VERIFICATION**
