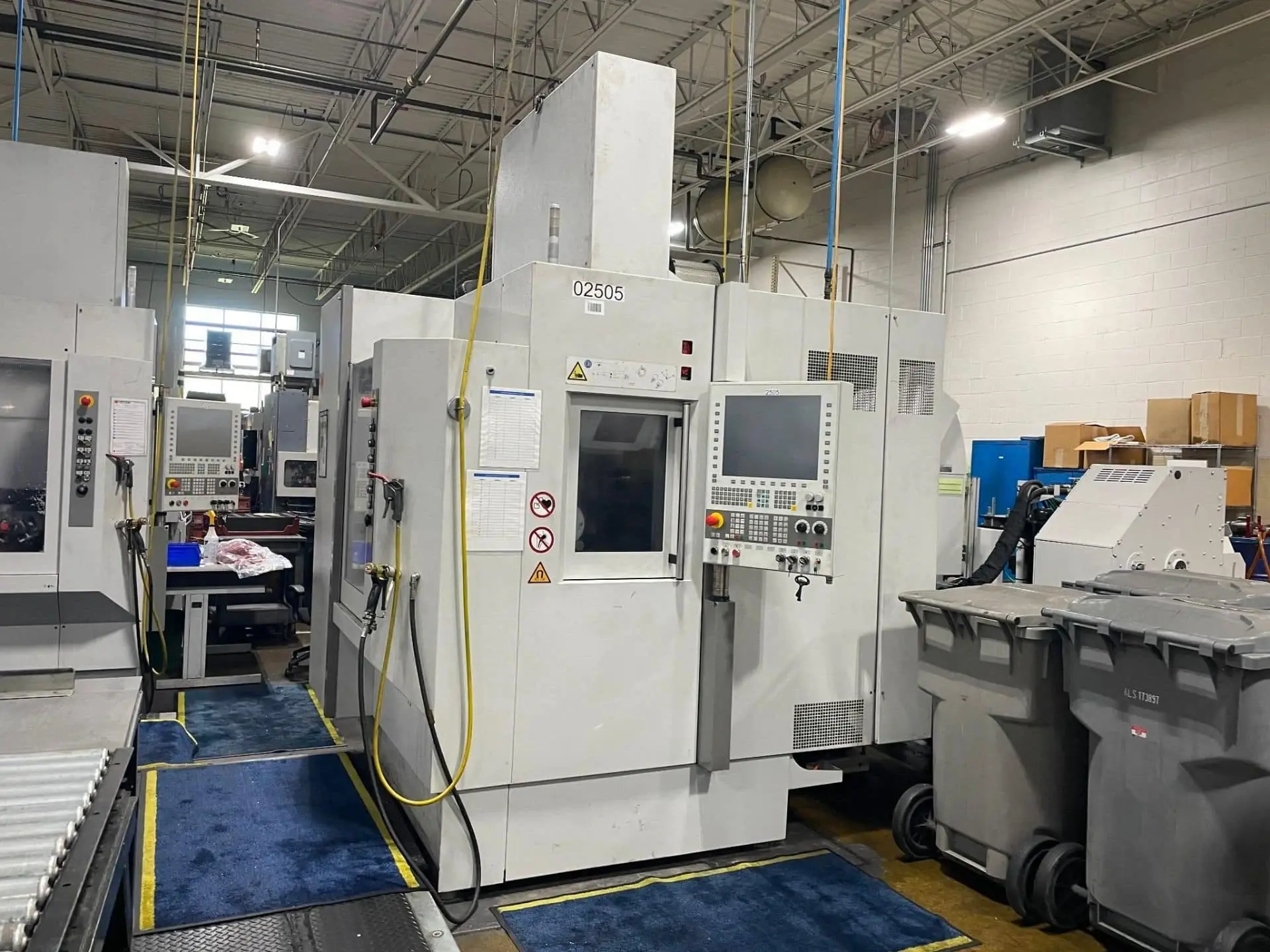

USED 2016 SW BA W02-22
Overview
This 2016 SW BA W02-22 horizontal machining center pairs a crown-gear swivel carrier that indexes 0/180° in approximately 2.25 seconds with HSK-A40 spindles running up to 25,000 RPM at a 9.84" spindle distance. Torque-motor-driven A- and U-axes carry up to 352.74 lbs each, and tool changes run approximately 1.75 seconds chip to chip.
Specs
Y-Axis Travel at Tool Change Position: 20.67"
Spindle Distance: 9.84"
Swivel Carrier/Counterbearing: Crown Gear, 0/180° Swivel Time Approximately 2.25 Seconds
A- and U-Axis Fixture Plate Capacity: Up to Ø16.73" x 24.80"
A- and U-Axis Drive: Torque Motor
A- and U-Axis Load Capacity: 2 x 352.74 lbs
A- and U-Axis Speed Range: 1 to 100 RPM
C- and W-Axis: 2 Satellites
Chip-to-Chip Time: Approximately 1.75 Seconds
Approximate Weight: 13,889 lbs
Approximate Transport Dimensions (W x H x L): 75.59" x 92.52" x 100.39"
Approximate Installed Dimensions (W x H x L): 125.98" x 114.17" x 204.72"
Operating Voltage: 3 x 400V, 50 Hz, TN-S/TN-C Network
Total Connected Load: 41 kVA
Mean Air Consumption: 14.12 CFM (80 PSI)
Equipped With
Siemens Sinumerik 840D sl Control
