USED 2005 OKUMA LT200-MY
Overview

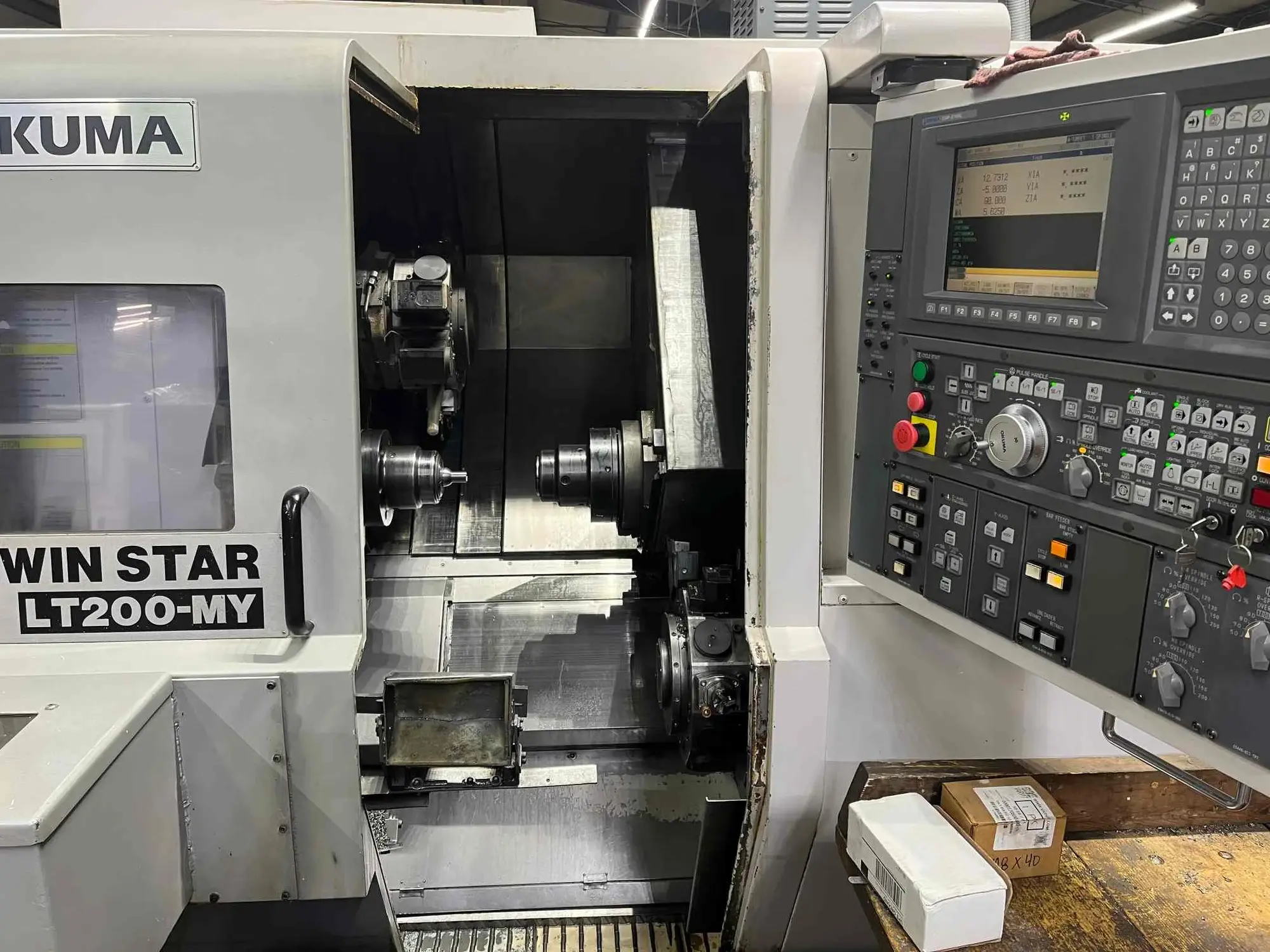

This 2005 Okuma LT-200 MY twin-turret CNC lathe was fully rebuilt in 2017 and pairs a Y-axis on turret one with a 4,500 RPM sub spindle, with 12 live tool positions on each turret. It offers 15.75" of swing, an 8.27" max cutting diameter, and a 21.26" max turning length, with 2" bar capacity and 15 HP on both the main and sub spindles.
Specs
Swing Over Cross Slide: 12.2"
Distance Between Spindles: 37.80"
Main Spindle Speed Range: 45 to 4,500 RPM
Main Spindle Bore: 2.44"
Main Spindle Nose: A2-6
Main Motor Continuous Rating: 10 HP
Sub Spindle Speed Range: 45 to 4,500 RPM
Sub Spindle Bore: 2.44"
Sub Spindle Bar Capacity: 2"
Sub Spindle Nose: A2-6
Sub Spindle Motor (30 Min/Continuous): 15/10 HP
Turret Positions (Turret One/Turret Two): 12/12, All Live
X-Axis Travel (Turret One/Turret Two): 7.56"/7.56"
Z-Axis Travel (Turret One/Turret Two): 27.561"/27.561"
Y-Axis Travel (Turret One): ±3.62"
B-Axis Travel (Sub Spindle): 28.74"
Rotary Tool Speed: 50 to 6,000 RPM
Rotary Tool Motor: 5.4 HP
Rapid Traverse (X/Z/Y): 1,181/1,574/1,024 IPM
Sub Spindle Rapid Traverse: 1,574 IPM
Equipped With
Okuma OSP-E100L Control
ATS Collet Chuck on Main and Sub Spindle
Standard Tool Holders
Auto Touchsetter
Barfeed Interface
Parts Catcher
Parts Ejector
User Task II
Synchronous Tapping
Helical Cutting
Thermal Compensation
Lap 4
Nose Radius Compensation
Auto Chamfering
3D Animation
Spindle Orientation
Torque Limiter
Tool Life Management
Tool Wear Compensation
